HEADLAMP HOUSING
TU250X 2011 (L1) USA (E03)

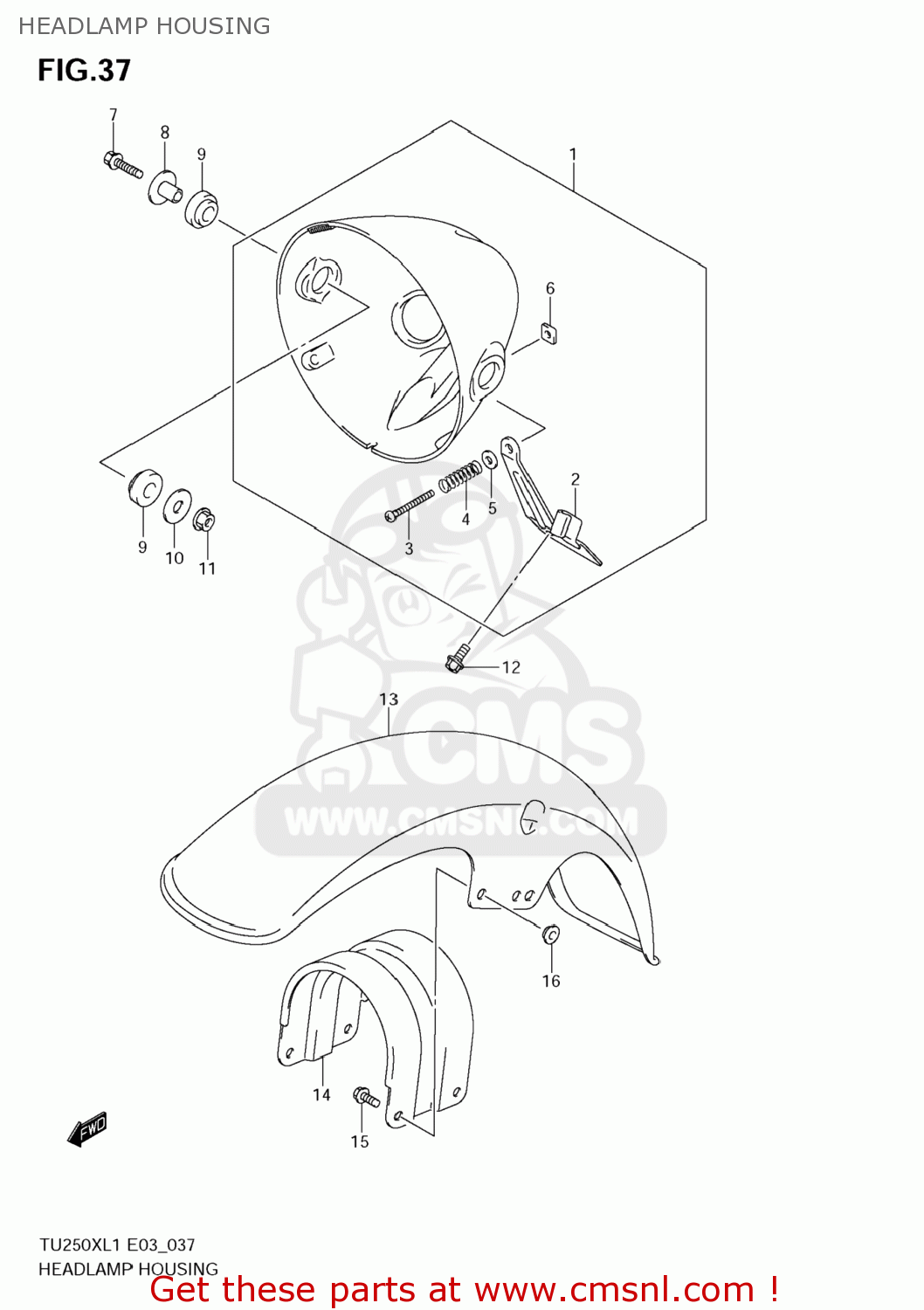

Headlamp housing diagram TU250X 2011 (L1) USA (E03)
HEADLAMP HOUSING TU250X 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5180026G30019
ref: 1
HOUSING ASSY,HEADLAMP
€ 76.50
2
5184026G00
ref: 2
PLATE,HEADLAMP HOUSING
€ 22.50
3
0912505128
ref: 3
SCREW(5X45)
€ 2.50
4
5183725D00
ref: 4
SPRING,HEADLAMP ADJUSTER
€ 4.00
5
083220105B
ref: 5
WASHER
€ 2.50
6
5182525D00
ref: 6
NUT,HEADLAMP ADJUSTER
€ 3.50
7
0124408357
ref: 7
BOLT
€ 3.00
8
0918008217
ref: 8
SPACER(8.6X12X21.3)
€ 3.50
9
0932012065
ref: 9
CUSHION
€ 3.00
10
0916008157
ref: 10
WASHER(8.5X28X1.6)
€ 2.00
11
083161008B
ref: 11
NUT
€ 3.00
12
021620616B
ref: 12
SCREW
€ 2.50
13
5311126G10YAY
ref: 13
FENDER,FR
€ 130.50
14
5311226G00
ref: 14
BRACE,FR FENDER
€ 15.00
15
015600616B
ref: 15
BOLT
€ 2.00
16
0916906071
ref: 16
WASHER
€ 2.50
