FRONT MASTER CYLINDER
TU250X 2011 (L1) USA (E03)

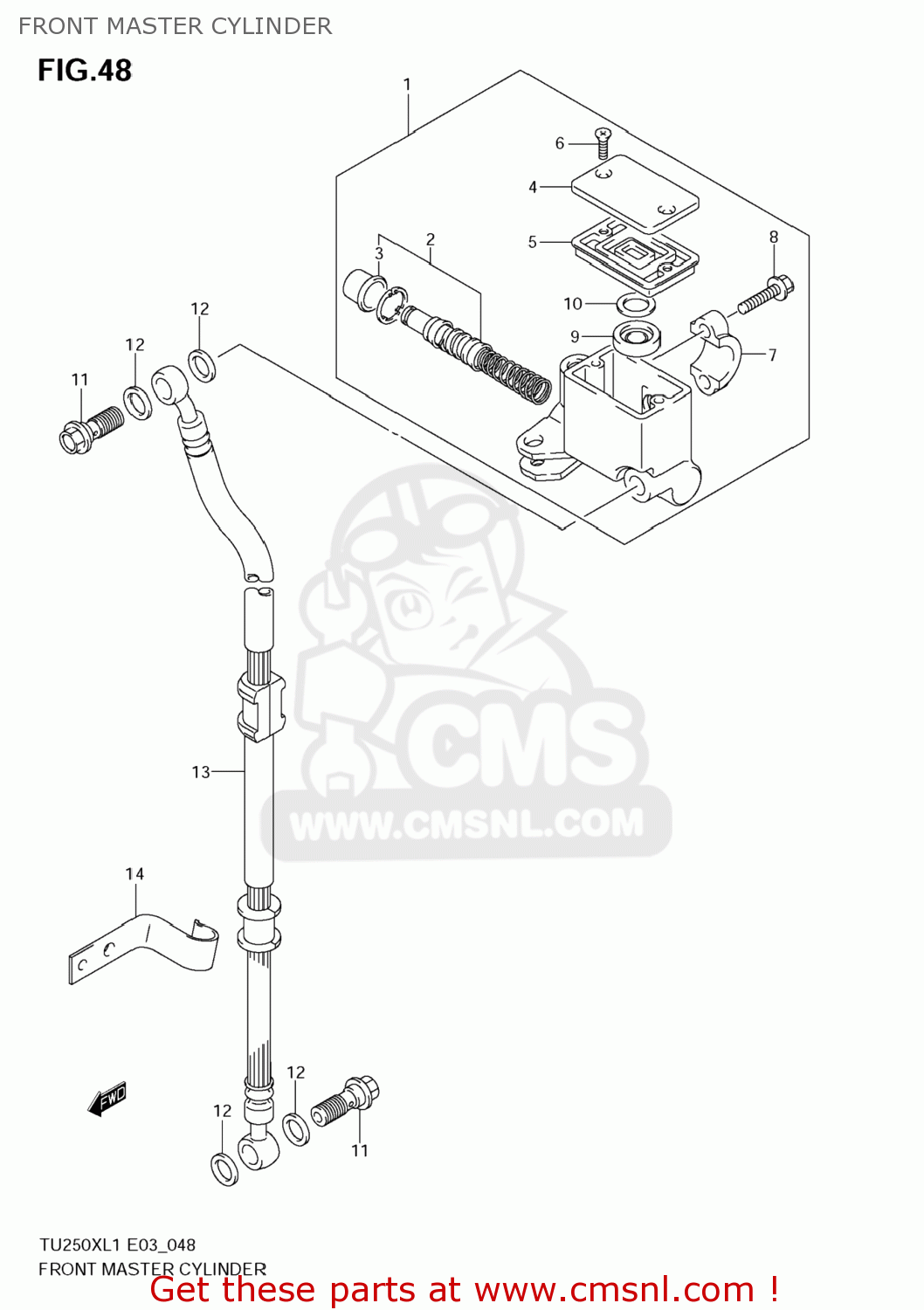

Front master cylinder diagram TU250X 2011 (L1) USA (E03)
FRONT MASTER CYLINDER TU250X 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960031D20
ref: 1
CYLINDER ASSY,FR MASTER
€ 151.50
2
5960004810
ref: 2
PISTON/CUP SET
€ 37.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
6966920C00
ref: 4
CAP
€ 9.50
5
5966744B00
ref: 5
DIAPHRAGM
€ 8.00
6
6968949300
ref: 6
SCREW
€ 1.50
7
5967136500
ref: 7
HOLDER
€ 10.00
8
5967519C00
ref: 8
BOLT(6X25)
€ 3.00
9
5974815400
ref: 9
SEPERATOR
€ 7.50
10
5974915400
ref: 10
PLATE
€ 2.00
11
0936010062
ref: 11
BOLT UNION
€ 5.00
12
0916110009
ref: 12
WASHER(10X15X1.5)
€ 2.00
13
5948026G01
ref: 13
HOSE,FR BRAKE
€ 62.00
14
5926826G00
ref: 14
CLAMP,FR BRAKE HOSE LWR
€ 5.00
