FRAME

TU250X 2011 (L1) USA (E03)

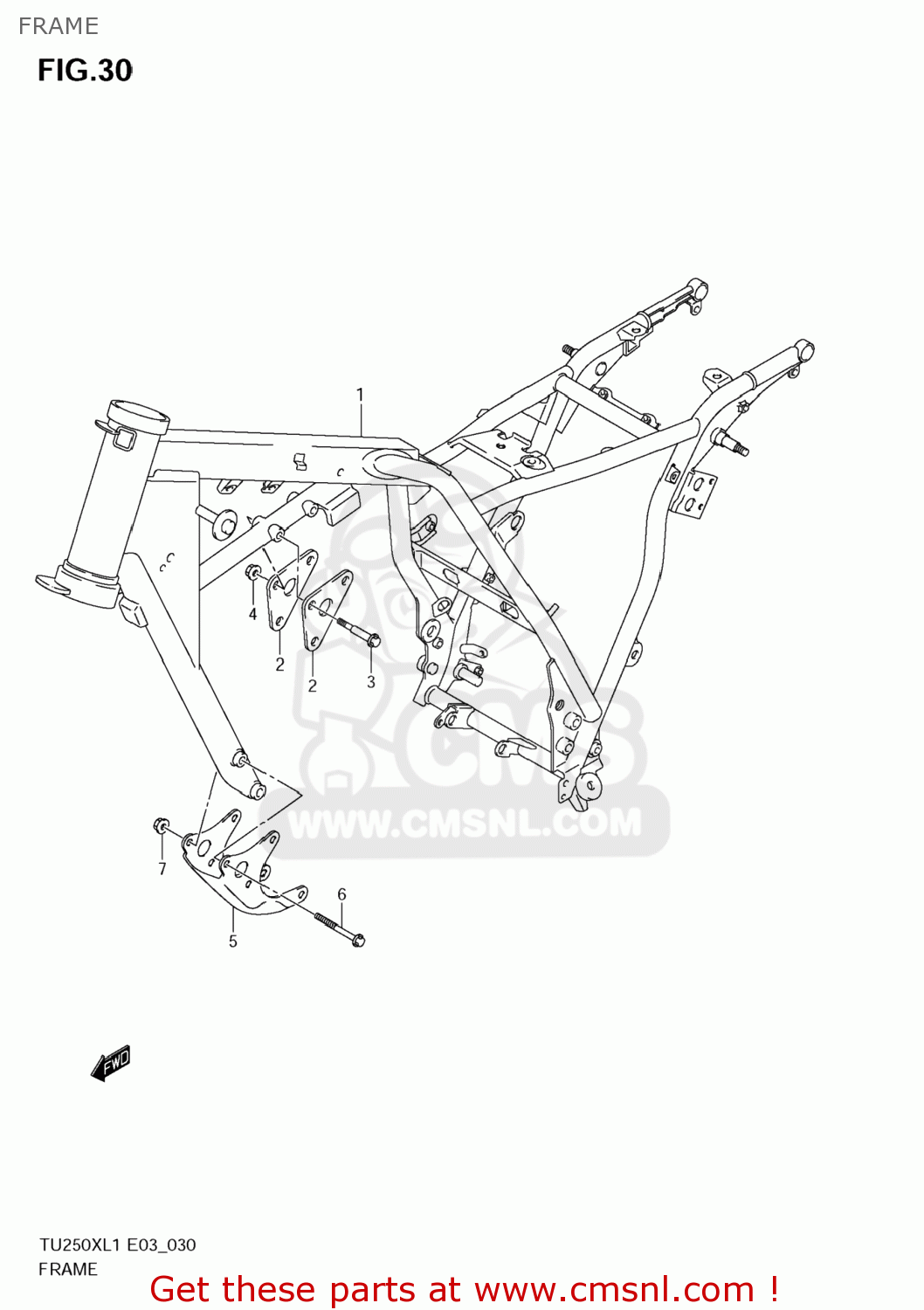

Frame diagram TU250X 2011 (L1) USA (E03)

FRAME TU250X 2011 (L1) USA (E03)

FRAME TU250X 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4110026G30019
ref: 1

FRAME(BLACK)

€ 1,128.00

2

4199126G00
ref: 2

PLATE,ENG MTG UPR

€ 7.00

3

0910308081
ref: 3

BOLT(8X50)

€ 3.50

4

083193108A
ref: 4

NUT

€ 2.50

5

4199238300019
ref: 5

PLATE,ENGINE MOUNT LWR

€ 14.50

6

0910308037
ref: 6

BOLT(8X67)

€ 6.50

7

083193108A
ref: 7

NUT

€ 2.50
