FUEL TANK

TU250X 2011 (L1) USA (E03)

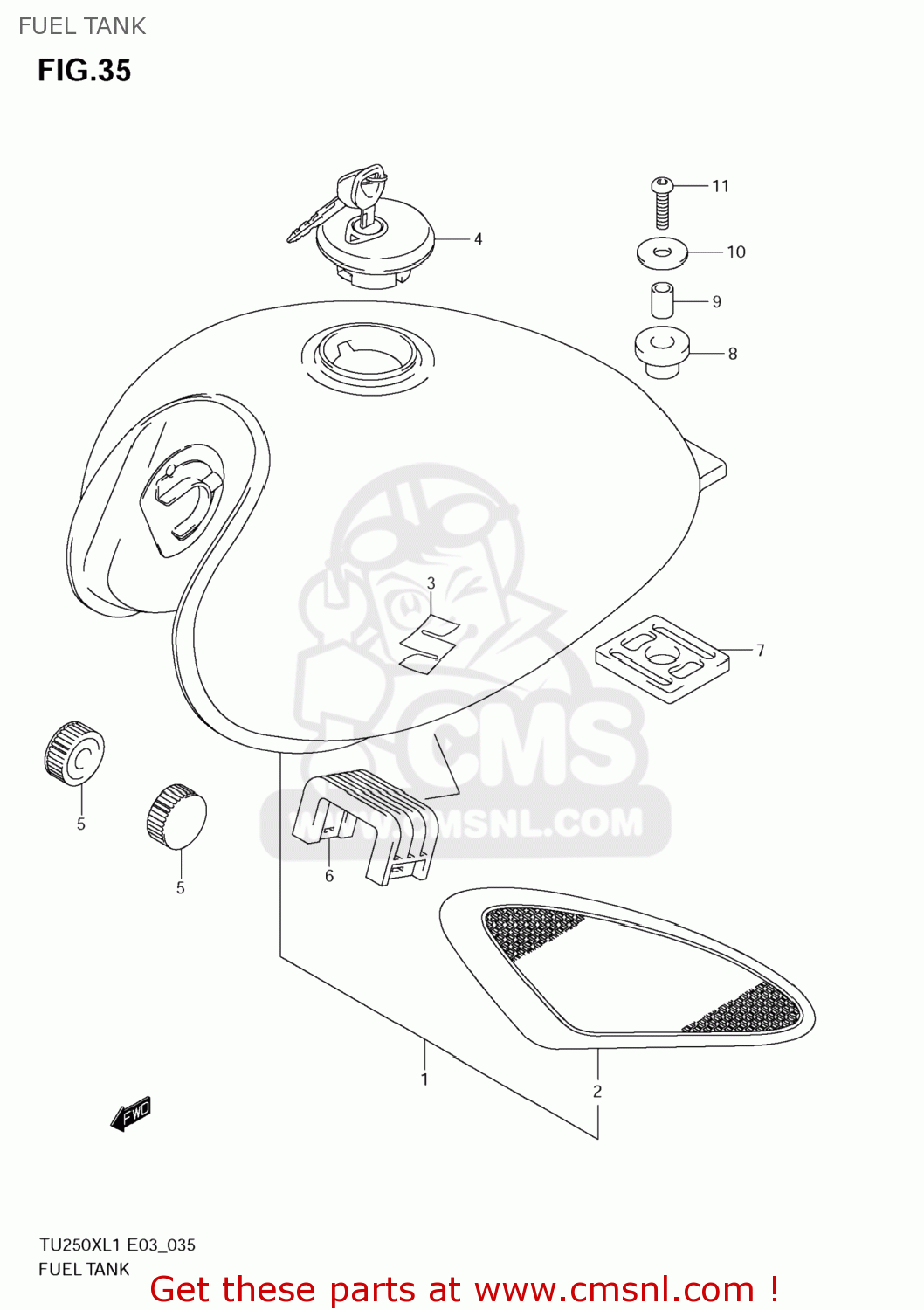

Fuel tank diagram TU250X 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

TANK ASSY, FUEL

€ 643.00

6811026G00
ref: 2

TAPE SET,FUEL TANK

€ 141.50

6811118G20
ref: 3

EMBLEM,S

€ 22.50

4420024840
ref: 4

CAP SET,FUEL TANK

€ 143.00

0932910016
ref: 5

CUSHION

€ 3.00

4454138200
ref: 6

CUSHION,TANK UPR FR

€ 6.00

4454241F00
ref: 7

CUSHION,FUEL TANK RR LWR

€ 8.00

4454141F01
ref: 8

CUSHION,FUEL TANK RR UPR

€ 6.50

0918008057
ref: 9

SPACER (8.2X12.5X23.5)

€ 2.00

0916008146
ref: 10

WASHER(8.5X33X1.5)

€ 3.00

071200835B
ref: 11

BOLT

€ 4.00
