SEAT

TU250X 2011 (L1) USA (E03)

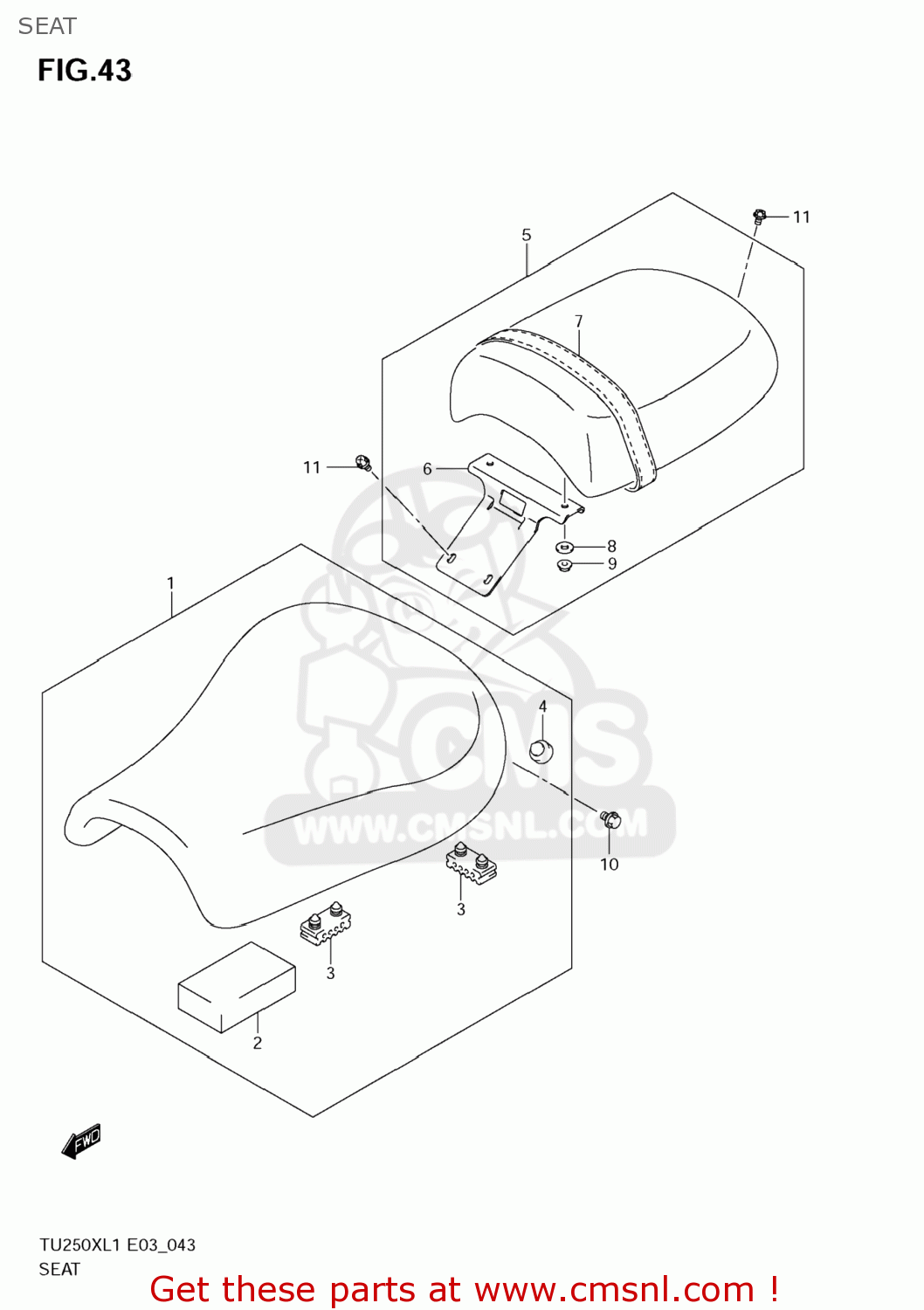

Seat diagram TU250X 2011 (L1) USA (E03)

SEAT TU250X 2011 (L1) USA (E03)

SEAT TU250X 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4510026G1058P
ref: 1

SEAT ASSY

€ 165.50

2

4514926G00
ref: 2

CUSHION,TOOL

€ 4.50

3

4514931300
ref: 3

CUSHION,SEAT(40X20X15)

€ 2.00

4

0932110012
ref: 4

CUSHION

€ 3.00

5

4530026G009MG
ref: 5

SEAT ASSY,PILLION

€ 142.00

6

4531626G00
ref: 6

PLATE,PILLION SEAT FR

€ 6.50

7

4538126G00
ref: 7

BAND,PILLION SEAT GRIP

€ 6.50

8

0916006084
ref: 8

WASHER(6.5X18X1.6)

€ 2.00

9

083161006B
ref: 9

NUT

€ 2.50

10

015500812B
ref: 10

BOLT

€ 3.50

11

021620612B
ref: 11

SCREW

€ 1.50
