REAR FRAME

TU250X 2011 (L1) USA (E03)

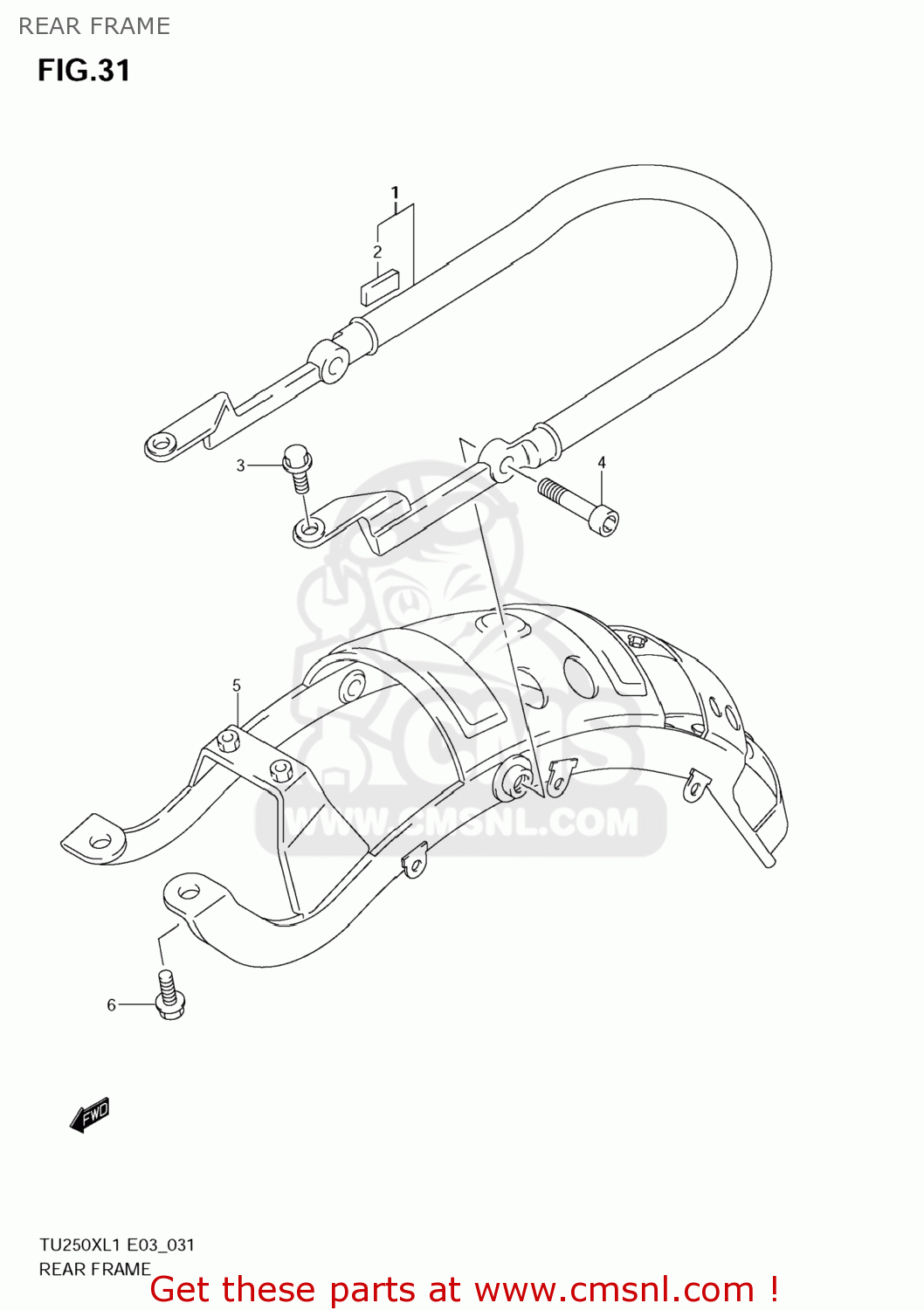

Rear frame diagram TU250X 2011 (L1) USA (E03)

REAR FRAME TU250X 2011 (L1) USA (E03)

REAR FRAME TU250X 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4120026G00019
ref: 1

FRAME,RR(BLACK)

€ 120.50

2

6319126G00
ref: 2

CUSHION,RR FENDER

€ 3.00

3

0910308288
ref: 3

BOLT(8X25)

€ 2.50

4

0910612004
ref: 4

BOLT(12X45)

€ 6.00

5

4158026G00
ref: 5

BRACE,RR FRAME

€ 173.50

6

015500820B
ref: 6

BOLT

€ 3.00
