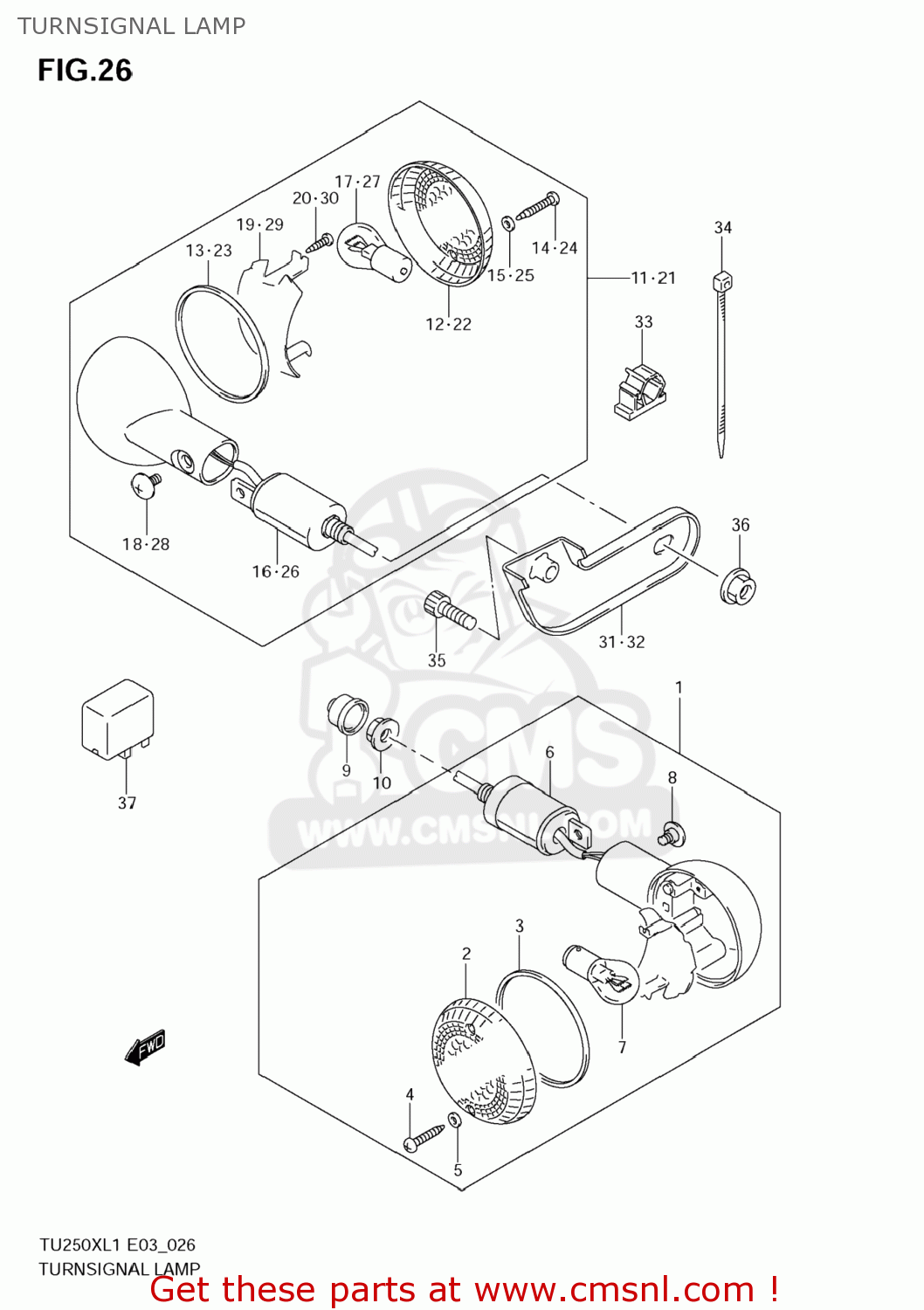

TURNSIGNAL LAMP

ref

part #

description

quantity

1

3560133D30
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 94.50

2

3561238A01
ref: 2

LENS

€ 10.50

3

3561338A00
ref: 3

GASKET (NAS)

€ 11.50

4

032110425B
ref: 4

SCREW

€ 2.00

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3561945C10
ref: 6

STAY,TURNSIGNAL FR

€ 97.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

3562338A01
ref: 8

SCREW

€ 5.50

9

3569801480
ref: 9

COVER,TURNSIGNAL

€ 4.00

10

083161010A
ref: 10

NUT

€ 2.00

11

3560333D40
ref: 11

LAMP ASSY,RR TURNSIGNAL,R

€ 86.50

12

3565238A21
ref: 12

LENS

€ 16.50

13

3561338A00
ref: 13

GASKET (NAS)

€ 11.50

14

032110425A
ref: 14

SCREW

€ 2.00

15

3562743010
ref: 15

GASKET (NAS)

€ 2.00

16

3561945C10
ref: 16

STAY,TURNSIGNAL FR

€ 97.50

17

0947112045
ref: 17

BULB(12V21W)

€ 5.00

18

3562338A01
ref: 18

SCREW

€ 5.50

19

3565438A20
ref: 19

REFLECTOR

€ 83.50

20

032110412A
ref: 20

SCREW

€ 1.50

21

3560433D40
ref: 21

LAMP ASSY,RR TURNSIGNAL,L

€ 86.50

22

3565238A21
ref: 22

LENS

€ 16.50

23

3561338A00
ref: 23

GASKET (NAS)

€ 11.50

24

032110425A
ref: 24

SCREW

€ 2.00

25

3562743010
ref: 25

GASKET (NAS)

€ 2.00

26

3561945C10
ref: 26

STAY,TURNSIGNAL FR

€ 97.50

27

0947112045
ref: 27

BULB(12V21W)

€ 5.00

28

3562338A01
ref: 28

SCREW

€ 5.50

29

3565438A20
ref: 29

REFLECTOR

€ 83.50

30

032110412A
ref: 30

SCREW

€ 1.50

31

3562126G20
ref: 31

BRACKET,RR TURNSIGNAL,R

€ 17.00

32

3564126G20
ref: 32

BRACKET,RR TURNSIGNAL,L

€ 17.00

33

0940307315
ref: 33

CLAMP

€ 3.50

34

0940714407
ref: 34

CLAMP(L:145)

€ 4.00

35

015500625B
ref: 35

BOLT

€ 2.50

36

083161010A
ref: 36

NUT

€ 2.00

37

3861003F00
ref: 37

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
