CRANKCASE

TU250X 2011 (L1) USA (E03)

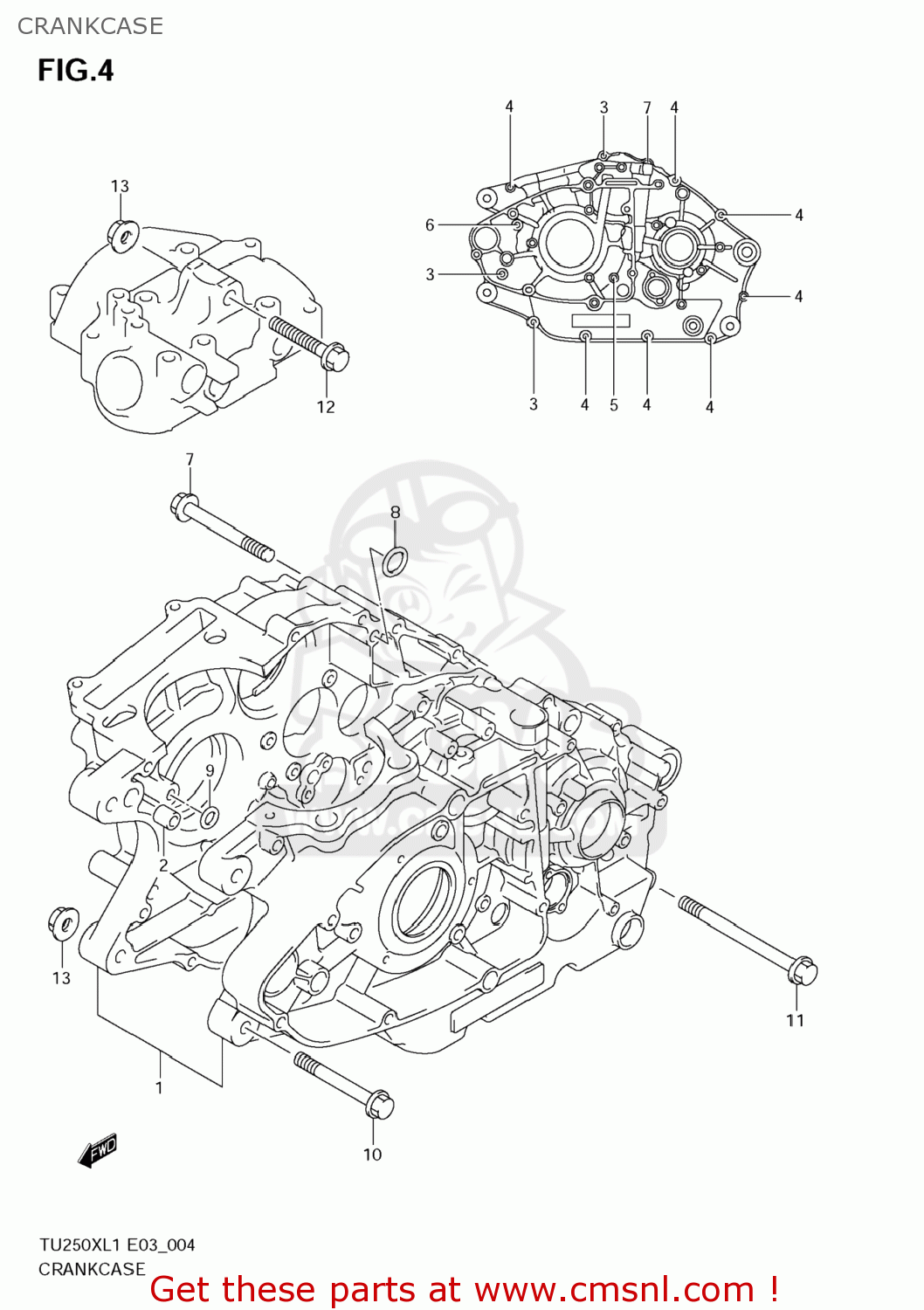

Crankcase diagram TU250X 2011 (L1) USA (E03)

CRANKCASE TU250X 2011 (L1) USA (E03)

CRANKCASE TU250X 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1130026G01
ref: 1

CRANKCASE ASSY

€ 593.00

2

0421113189
ref: 2

PIN

€ 2.50

3

015470635A
ref: 3

BOLT

€ 3.00

4

0154706457
ref: 4

BOLT

€ 2.50

5

015470655A
ref: 5

BOLT

€ 2.50

6

015470660B
ref: 6

BOLT

€ 3.50

7

015470670A
ref: 7

BOLT

€ 2.50

8

0928010016
ref: 8

O RING(D:1.9,ID:9.8)

€ 3.50

9

0928007004
ref: 9

O RING(D:1.9,ID:6.8)

€ 1.50

10

0910308037
ref: 10

BOLT(8X67)

€ 6.50

11

0910308179
ref: 11

BOLT(8X105)

€ 4.00

12

0910308081
ref: 12

BOLT(8X50)

€ 3.50

13

083193108A
ref: 13

NUT

€ 2.50

all assemblies
