CYLINDER

TU250X 2011 (L1) USA (E03)

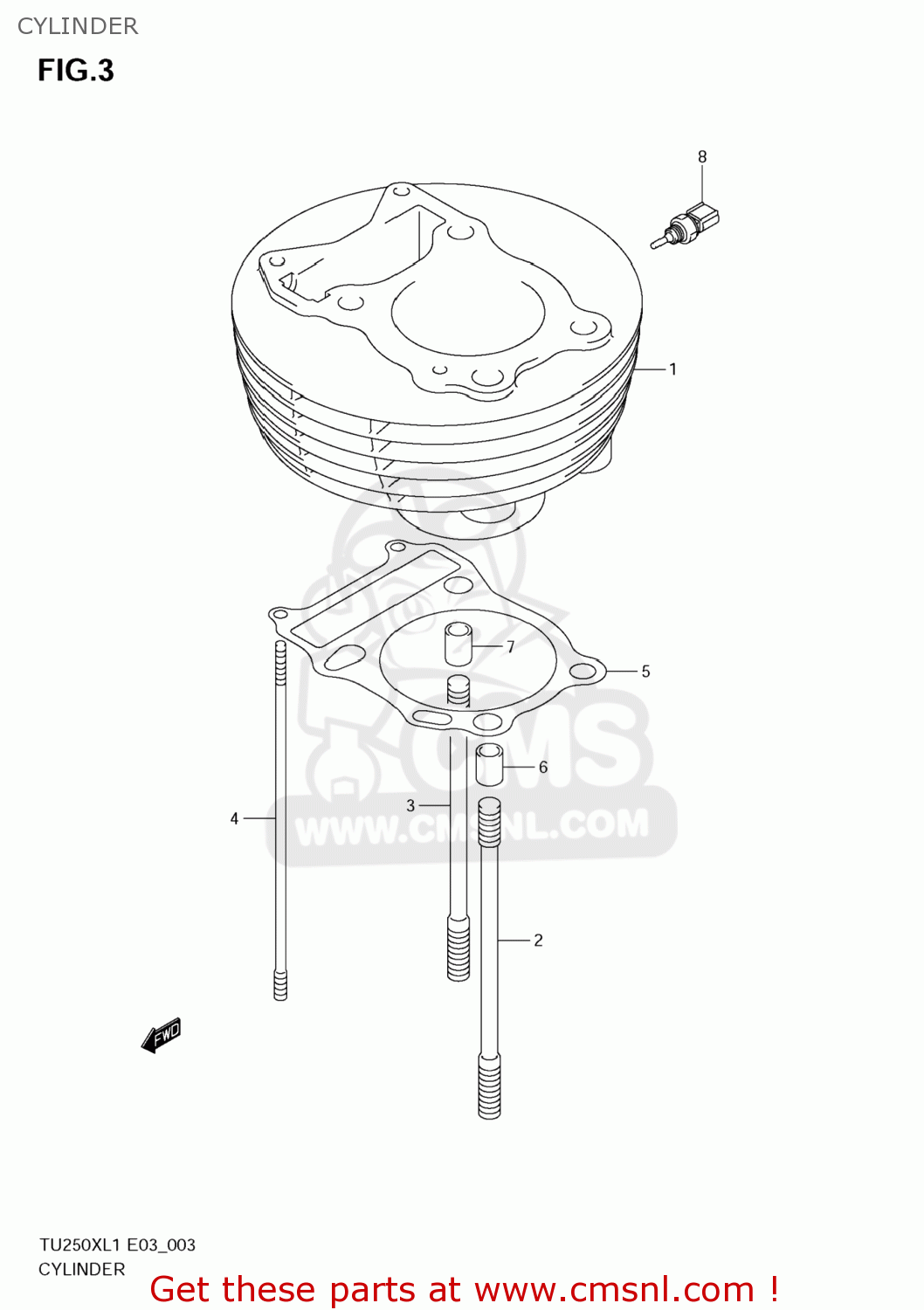

Cylinder diagram TU250X 2011 (L1) USA (E03)

CYLINDER TU250X 2011 (L1) USA (E03)

CYLINDER TU250X 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121126G100F0
ref: 1

CYLINDER

€ 295.00

2

0910810030
ref: 2

BOLT,STUD

€ 7.50

3

0910810096
ref: 3

BOLT,STUD

€ 12.50

4

0910806054
ref: 4

BOLT,STUD

€ 5.00

5

1124126G00
ref: 5

GASKET,CYLINDER (NAS)

€ 6.00

6

0421113189
ref: 6

PIN

€ 2.50

7

0421113149
ref: 7

PIN

€ 2.00

8

1364026G00
ref: 8

SENSOR,ENGINE TEMP

€ 58.50
