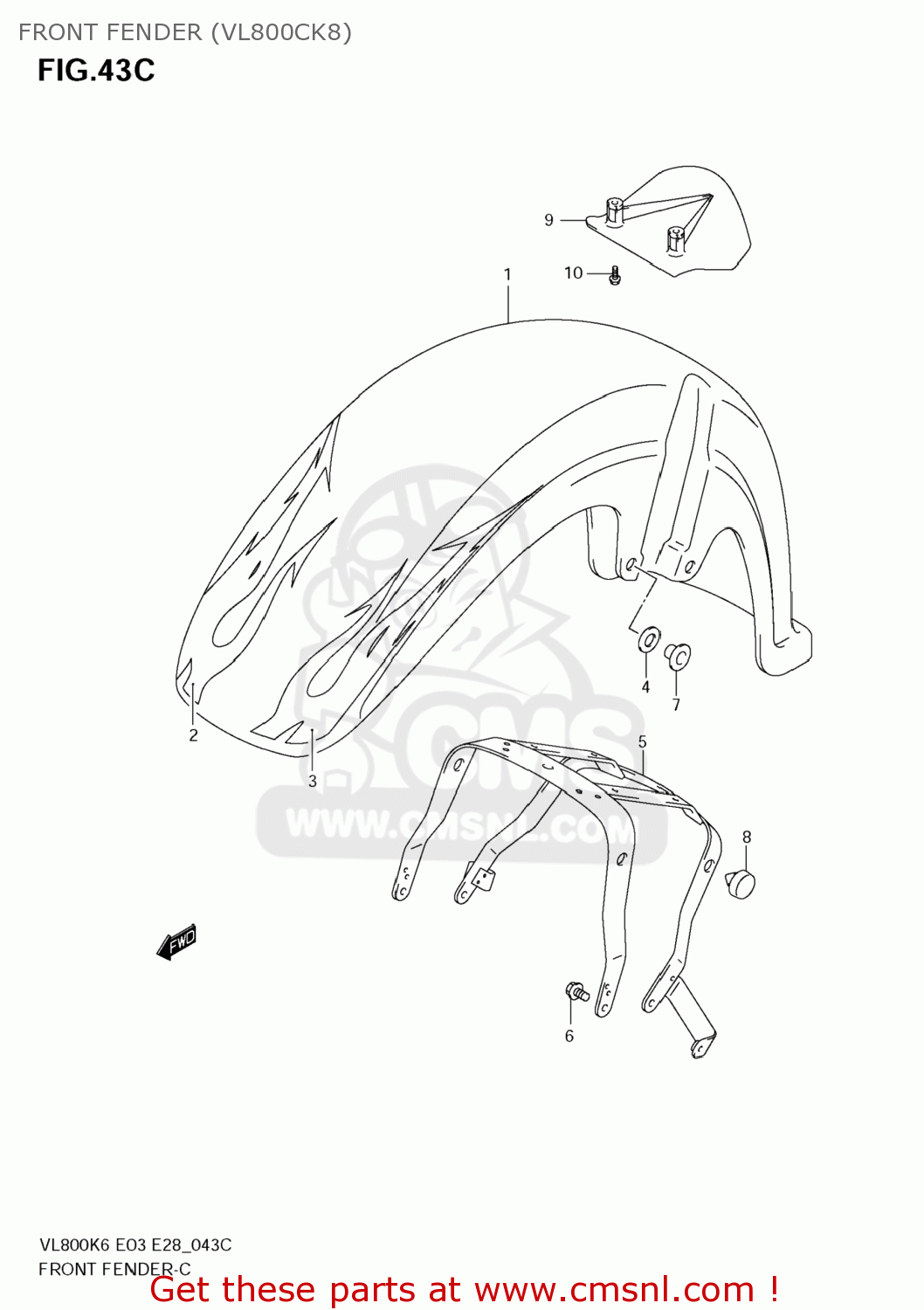

FRONT FENDER (VL800CK8)

VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

Front fender (vl800ck8) diagram VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

FRONT FENDER (VL800CK8) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

FRONT FENDER (VL800CK8) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

5311041FD0YMD
ref: 1

FENDER,FR

€ 501.00

2

6815541F30EZT
ref: 2

TAPE,FR FENDER,R

€ 21.50

3

6815641F30EZT
ref: 3

TAPE,FR FENDER,L

€ 21.50

4

5312141FA0
ref: 4

CUSHION,FR FENDER

€ 2.50

5

5312041F12
ref: 5

BRACE,FR FENDER

€ 75.00

6

015500620B
ref: 6

BOLT

€ 2.50

7

5327641F10
ref: 7

WASHER,FR FENDER

€ 4.00

8

0932110007
ref: 8

CUSHION

€ 4.50

9

5318141F00
ref: 9

WING,FR

€ 7.00

10

0911306001
ref: 10

BOLT(6X16)

€ 3.00
