REAR WHEEL (VL800K6/TK6/K7/TK7/K8/TK8/K9/TK9)

VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

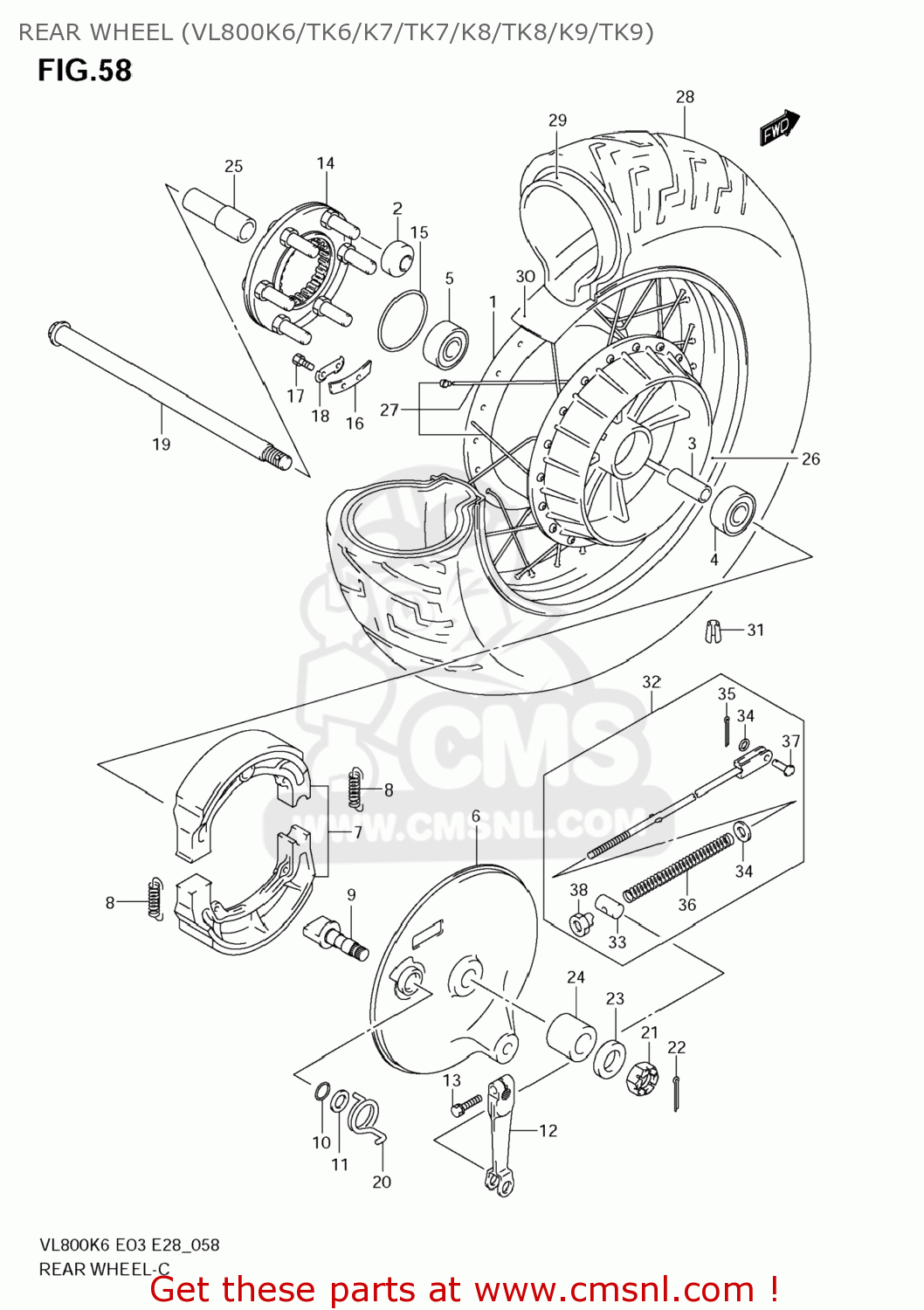

Rear wheel (vl800k6/tk6/k7/tk7/k8/tk8/k9/tk9) diagram VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

REAR WHEEL (VL800K6/TK6/K7/TK7/K8/TK8/K9/TK9) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)
REAR WHEEL (VL800K6/TK6/K7/TK7/K8/TK8/K9/TK9) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)
REAR WHEEL (VL800K6/TK6/K7/TK7/K8/TK8/K9/TK9) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
6411041F00
ref: 1
HUB,RR WHEEL
6411041F00
€ 653.00
2
0931912019
ref: 2
BUSH
0931912019
€ 10.50
3
0918017092
ref: 3
SPACER(17.5X25X113)
0918017092
€ 15.50
4
0812363037
ref: 4
BEARING
0812363037
€ 16.00
5
0814363037
ref: 5
BEARING
0814363037
€ 23.00
6
6421038A40
ref: 6
PANEL, REAR BRAKE ANCHOR
€ 188.00
7
6440038820
ref: 7
SHOE SET,BRAKE (NAS)
6440038820
€ 61.00
8
5542030000
ref: 8
SPRING,BRAKE SHOE
5542030000
€ 3.50
9
6444138A20
ref: 9
CAM,RR BRAKE
6444138A20
€ 21.50
10
0928015003
ref: 10
O RING(D:2.4,ID:14.8)
0928015003
€ 2.00
11
0916015048
ref: 11
WASHER(15.5X24X1.6)
0916015048
€ 2.50
12
6445138A01
ref: 12
LEVER,RR BRAKE CAM
6445138A01
€ 33.00
13
0157006257
ref: 13
BOLT
0157006257
€ 2.50
14
6468045113
ref: 14
JOINT ASSY,RR HUB DRIVEN
6468045113
€ 181.50
15
0928065003
ref: 15
O RING(D:2.1,ID:65)
0928065003
€ 2.50
16
6467745110
ref: 16
WASHER,THRUST(T:1.6)
6467745110
€ 2.50
17
0911906049
ref: 17
BOLT(6X16)
0911906049
€ 1.50
18
0916906030
ref: 18
WASHER
0916906030
€ 2.00
19-1
6471119F10
ref: 19-1
AXLE,RR
€ 71.00
19-2
6471119F00
ref: 19-2
AXLE,RR
6471119F00
€ 51.00
20
0944833006
ref: 20
SPRING
0944833006
€ 11.00
21-1
0914116007
ref: 21-1
NUT
€ 8.00
21-2
083192116A
ref: 21-2
NUT
083192116A
€ 5.00
22
041114030A
ref: 22
PIN
041114030A
€ 1.50
23
0916017050
ref: 23
WASHER(17X30X3.2)
0916017050
€ 2.00
24
6474141F00
ref: 24
SPACER,RR AXLE,R
€ 9.00
25
6477234201
ref: 25
SPACER,RR AXLE,L
6477234201
€ 14.50
26
6531141F00
ref: 26
RIM,RR WHEEL(15M/CXMT4.00 FE)
€ 252.50
27
6532041F00
ref: 27
SPOKE SET,RR WHEEL
6532041F00
€ 68.00
28-1
6510041F00
ref: 28-1
TIRE(170/80 15M/C 77H)
€ 174.50
28-2
6510041F10
ref: 28-2
TIRE,REAR,170/80-15M/C 77H
6510041F10
€ 140.00
29
6520041F00
ref: 29
TUBE ASSY,WHEEL INNER
€ 36.00
30
6526141F00
ref: 30
PROTECTOR,WHL INR TUBE
€ 4.50
31-1
5541126G00
ref: 31-1
BALANCER,WHEEL(15G)
5541126G00
€ 4.50
31-2
5541341F00
ref: 31-2
BALANCER,WHEEL(30G)
5541341F00
€ 8.00
32
4330041F00
ref: 32
ROD ASSY,RR BRAKE
4330041F00
€ 22.00
33
0920913018
ref: 33
PIN(13X18)
0920913018
€ 3.50
34
083220106B
ref: 34
WASHER
083220106B
€ 2.00
35
041112015A
ref: 35
PIN
041112015A
€ 1.50
36
0944009004
ref: 36
SPRING
0944009004
€ 2.00
37
0920006013
ref: 37
PIN(L:13.5)
0920006013
€ 2.00
38
0915006010
ref: 38
NUT
0915006010
€ 3.50
