WIRING HARNESS (MODEL K6/K7/K8)

VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

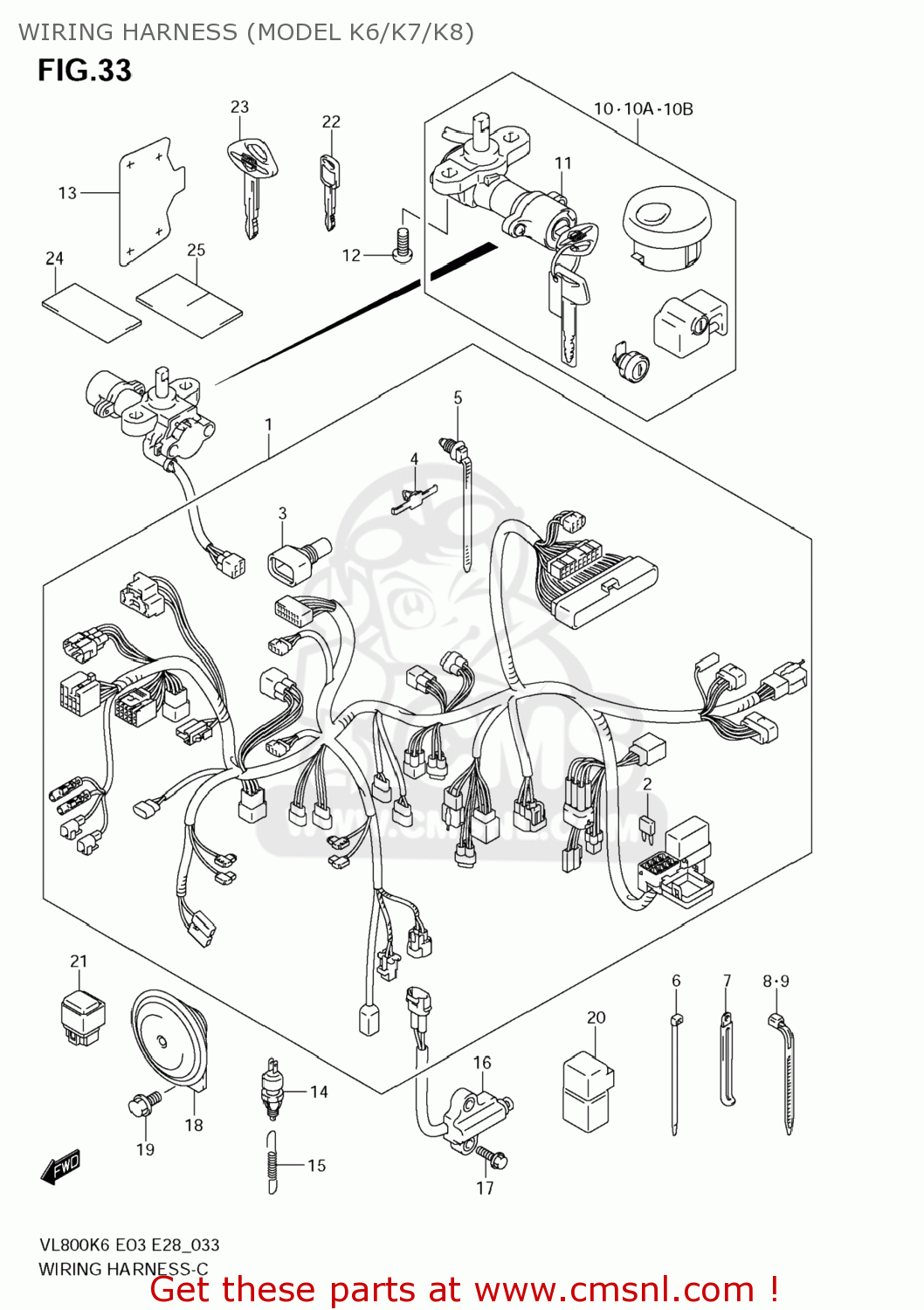

Wiring harness (model k6/k7/k8) diagram VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

WIRING HARNESS (MODEL K6/K7/K8) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

WIRING HARNESS (MODEL K6/K7/K8) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

3661041FH0
ref: 1-1
36610-41FH1

HARNESS, WIRING

€ 459.50

1-2

3661041FN0
ref: 1-2

HARNESS,WIRING

€ 0.00

1-3

3661041FL0
ref: 1-3
36610-41FL1

HANRESS, WIRING

€ 459.50

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3

3661833E00
ref: 3

COVER,SPEEDOMETER COUPLER

€ 5.50

4

0940705410
ref: 4

CLAMP

€ 4.00

5

0940717403
ref: 5

CLAMP(L:154)

€ 5.50

6

0940714407
ref: 6

CLAMP(L:145)

€ 4.00

7-1

0940406433
ref: 7-1

CLAMP(L:80)

€ 3.00

7-2

0940406435
ref: 7-2

CLAMP(L:135)

€ 2.50

8

0940718402
ref: 8

CLAMP(L:165)

€ 2.50

9

0940719401
ref: 9

CLAMP(L:190)

€ 2.00

10A

3710241870
ref: 10A

LOCK SET

€ 0.00

10B

3710241880
ref: 10B

LOCK SET

€ 0.00

10-1

3710141870
ref: 10-1

LOCK SET

€ 485.50

10-2

3710141880
ref: 10-2

LOCK SET

€ 0.00

11

3710041F70
ref: 11

LOCK ASSY,STEERING

€ 168.50

12

0913908016
ref: 12

BOLT(8X20)

€ 3.50

13

3718741F10
ref: 13

PROTECTOR,IGNITION SWITCH

€ 12.00

14

3774024A00
ref: 14

SWITCH ASSY,STOP LAMP

€ 20.50

15

0944306073
ref: 15

SPRING

€ 3.00

16

3784041F00
ref: 16

SWITCH ASSY,SIDE STAND

€ 65.00

17

0910306279
ref: 17

BOLT(6X20)

€ 3.00

18-1

3850041F10
ref: 18-1

HORN ASSY

€ 80.00

18-2

3850041F20
ref: 18-2

HORN ASSY

€ 80.00

18-3

3850041F20
ref: 18-3

HORN ASSY

€ 80.00

19

015500816B
ref: 19

BOLT

€ 3.00

20

3874024X50
ref: 20

RELAY ASSY

€ 37.50

21

3874024A00
ref: 21

RELAY ASSY

€ 39.00

22

3714641F10
ref: 22

KEY,BLANK

€ 26.00

23

3714641FA0
ref: 23

KEY,BLANK(BOULEVARD)

€ 64.50

24

3661116G00
ref: 24

TAPE,WIRING HARNESS(28X50X0.13

€ 2.00

25

3692033C00
ref: 25

PROTECTOR,HARNESS(30X50X3)

€ 2.00
