REAR COMBINATION LAMP (MODEL K9)

VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

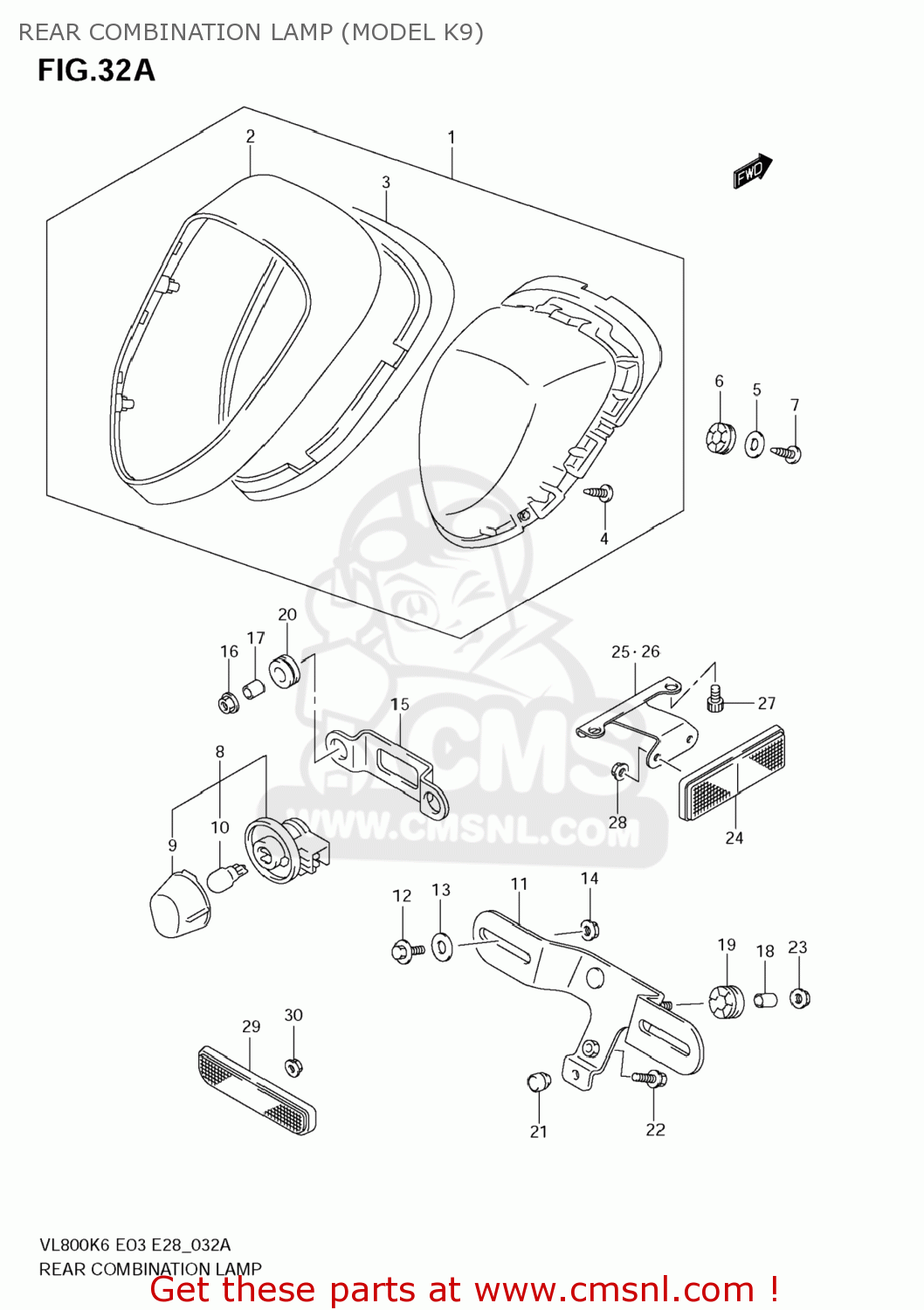

Rear combination lamp (model k9) diagram VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

REAR COMBINATION LAMP (MODEL K9) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

REAR COMBINATION LAMP (MODEL K9) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3571043H00
ref: 1

LAMP ASSY,RR COMBINATION

€ 326.50

2

3571743H00
ref: 2

COVER

€ 124.50

3

3571343H00
ref: 3

RUBBER

€ 31.00

4

3562341400
ref: 4

SCREW(3X12)

€ 2.00

5

0916005501
ref: 5

WASHER(5.5X20X1.2)

€ 2.00

6

3576543H00
ref: 6

CUSHION,RR COMBINATION

€ 3.50

7

035410512A
ref: 7

SCREW

€ 2.00

8

3591014F01
ref: 8

LAMP ASSY,LICENSE

€ 16.50

9

3591214F11
ref: 9

LENS

€ 6.50

10

0947112216
ref: 10

BULB(12V5W)

€ 5.00

11-1

3592743H30
ref: 11-1

BRACKET,LICENSE PLATE

€ 15.00

11-2

3592743H50
ref: 11-2

BRACKET,LICENSE PLATE

€ 0.00

12

0911606168
ref: 12

BOLT(6X16)

€ 2.50

13

0916006077
ref: 13

WASHER(6.5X20X1.2)

€ 2.00

14

083161006A
ref: 14

NUT

€ 2.50

15

3592843H00
ref: 15

BRACKET,LICENSE LAMP

€ 5.50

16

0915905049
ref: 16

NUT

€ 1.50

17

0918005301
ref: 17

SPACER(5.5X9.5X10)

€ 2.50

18

0918006290
ref: 18

SPACER(6.5X10X12)

€ 2.50

19

0932010051
ref: 19

CUSHION

€ 3.50

20

0932010054
ref: 20

CUSHION

€ 2.00

21

0932106013
ref: 21

CUSHION

€ 2.50

22

015500625B
ref: 22

BOLT

€ 2.50

23

083161006A
ref: 23

NUT

€ 2.50

24

3597007F01
ref: 24

REFLECTOR ASSY,RR

€ 20.50

25

3597543H00
ref: 25

BRACKET,RR SIDE RR,R

€ 7.00

26

3597643H00
ref: 26

BRACKET,RR SIDE RR,L

€ 7.00

27

071300612A
ref: 27

BOLT

€ 2.50

28

083161005A
ref: 28

NUT

€ 2.50

29-1

3597005H00
ref: 29-1

REFLECTOR ASSY,RR

€ 16.50

29-2

3597022H00
ref: 29-2

REFLECTOR ASSY,RR

€ 17.50

30

083161005A
ref: 30

NUT

€ 2.50
