GEAR SHIFTING

VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

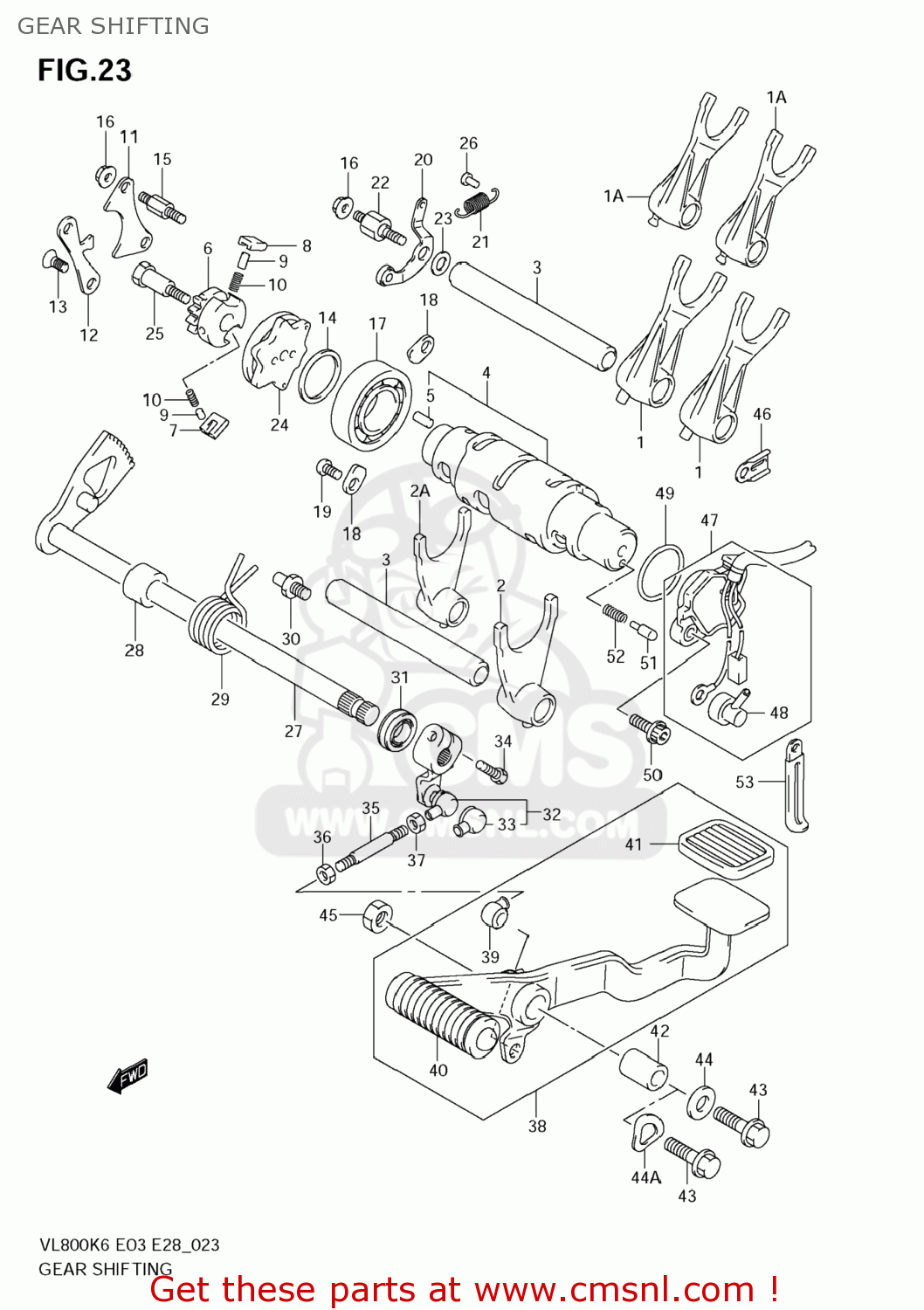

Gear shifting diagram VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

GEAR SHIFTING VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)
GEAR SHIFTING VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)
GEAR SHIFTING VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
2521138A02
ref: 1
FORK,GEAR SHIFT NO.1
€ 94.00
1A
2521138A10
ref: 1A
FORK,GEAR SHIFT NO.1
€ 58.50
2
2522138A01
ref: 2
FORK,GEAR SHIFT NO.2
€ 79.00
2A
2522138A10
ref: 2A
FORK,GEAR SHIFT NO.2
€ 58.50
3
2541138A00
ref: 3
SHAFT,GEAR SHIFT FORK(L:115)
€ 17.00
4
2531041F00
ref: 4
CAM,GEAR SHIFT
€ 138.50
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
2532231310
ref: 6
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
0926105003
€ 1.50
10
0944004003
ref: 10
SPRING
0944004003
€ 1.50
11
2533138A00
ref: 11
LIFTER,GEAR SHIFT POLE
2533138A00
€ 4.50
12
2534138A00
ref: 12
GUIDE,GEAR SHIFT CAM
2534138A00
€ 6.00
13
0912606011
ref: 13
SCREW(6X12)
0912606011
€ 2.00
14
0916025059
ref: 14
WASHER(25X32X3)
0916025059
€ 5.00
15
2533238A10
ref: 15
BOSS,SHIFT POLE LIFTER
2533238A10
€ 3.50
16
083161006B
ref: 16
NUT
083161006B
€ 2.50
17
0926225006
ref: 17
BEARING(25X47X8)
0926225006
€ 24.00
18
2474121A00
ref: 18
RETAINER
2474121A00
€ 2.00
19
0912506110
ref: 19
BOLT(6X12)
0912506110
€ 2.50
20
2535038A00
ref: 20
STOPPER,GEAR SHIFT CAM
2535038A00
€ 9.00
21
0944309027
ref: 21
SPRING
0944309027
€ 2.50
22
2535538A10
ref: 22
SUPPORT,CAM STOPPER ARM
€ 5.50
23
0821106141
ref: 23
WASHER
0821106141
€ 2.50
24
2538038A02
ref: 24
PLATE,GEAR SHIFT CAM
2538038A02
€ 15.00
25
2531238A00
ref: 25
PIN,SHIFT CAM DRIVEN GEAR
2531238A00
€ 4.00
26
0922304004
ref: 26
RIVET
0922304004
€ 2.00
27
2551038A00
ref: 27
SHAFT,GEAR SHIFT
2551038A00
€ 66.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
0918012068
€ 3.00
29
0944426013
ref: 29
SPRING
0944426013
€ 3.50
30
2567101011
ref: 30
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
31
0928512002
ref: 31
09285-12006
OIL SEAL
0928512002
€ 7.00
32
2552038B00
ref: 32
ARM,GEAR SHIFT LINK
2552038B00
€ 39.50
33
2552647000
ref: 33
COVER,DUST
2552647000
€ 3.50
34
015470620A
ref: 34
BOLT
015470620A
€ 2.50
35
2552541F00
ref: 35
ROD,GEAR SHIFT LINK
2552541F00
€ 6.00
36
0914006011
ref: 36
NUT
0914006011
€ 1.50
37
0831000067
ref: 37
NUT
0831000067
€ 2.50
38-1
2560041F10
ref: 38-1
LEVER ASSY,GEAR SHIFT
2560041F10
€ 158.50
38-2
2560041F20
ref: 38-2
LEVER ASSY,GEAR SHIFT
€ 84.00
39
2552647000
ref: 39
COVER,DUST
2552647000
€ 3.50
40
2565210F00
ref: 40
RUBBER
2565210F00
€ 8.00
41
4315101400
ref: 41
RUBBER,BRAKE PEDAL
4315101400
€ 4.00
42
2561710F00
ref: 42
SPSCER,GEAR SHIFT LEVER
2561710F00
€ 14.50
43
0910310300
ref: 43
BOLT(10X40)
0910310300
€ 5.50
44
0916010127
ref: 44
09160-10093
WASHER (10.5X24X2.3)
0916010127
€ 2.00
44A
0916418009
ref: 44A
WASHER
0916418009
€ 1.50
45
083100010B
ref: 45
NUT
083100010B
€ 2.00
46
3149745000
ref: 46
CLAMP,GENERATOR LEAD WIRE
3149745000
€ 1.50
47
3773041F01
ref: 47
BASE ASSY,GEAR
€ 92.00
48
3661843410
ref: 48
CAP,OIL PRESSURE SWITCH
3661843410
€ 2.50
49
0928026005
ref: 49
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
50
071200516A
ref: 50
BOLT
071200516A
€ 1.50
51
0920905011
ref: 51
PIN(5X15.5)
0920905011
€ 2.00
52
0944004010
ref: 52
SPRING
0944004010
€ 1.50
53
0940406429
ref: 53
CLAMP(L:45)
€ 2.50
