SEAT (VL800K9/CK9)

VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

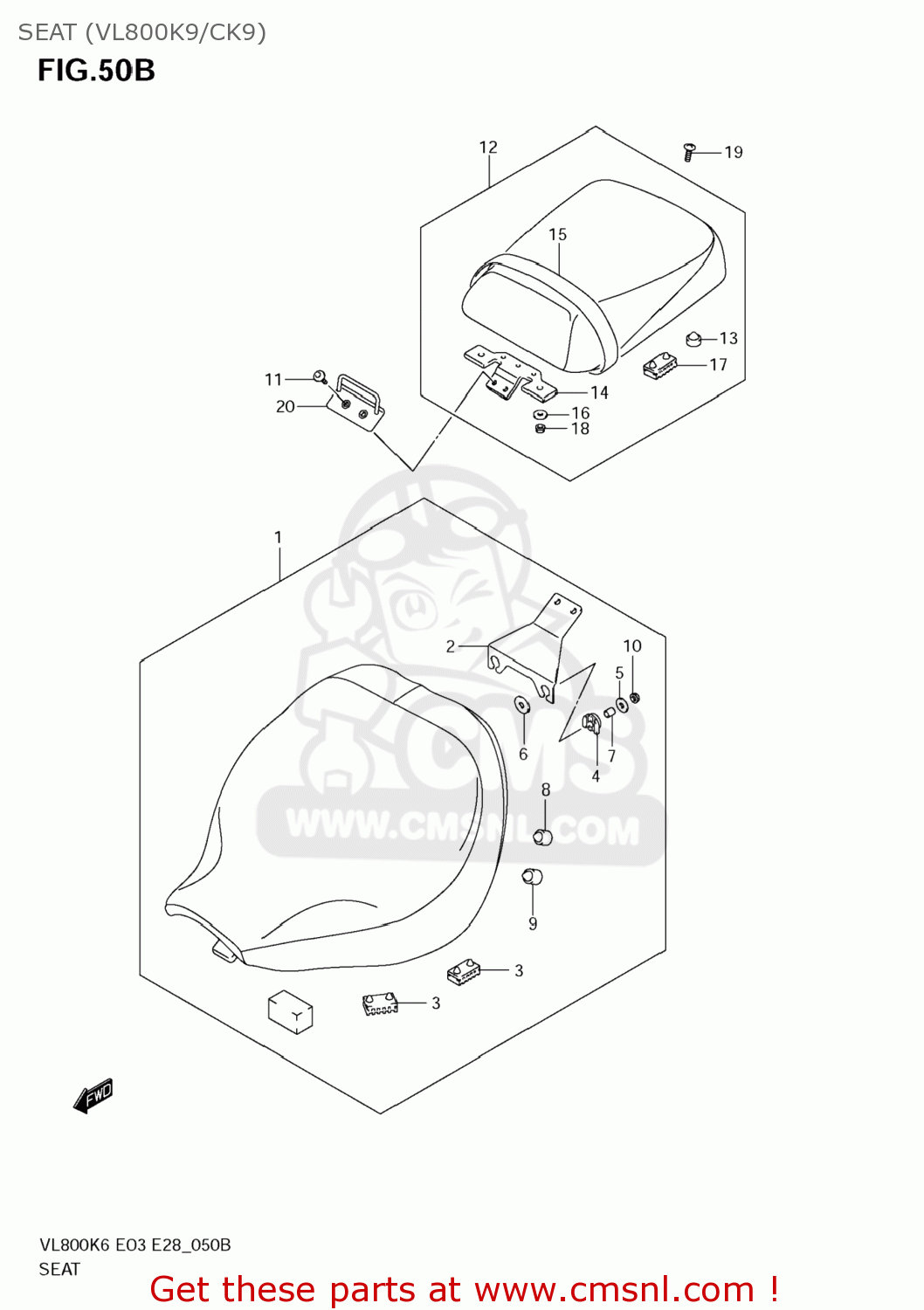

Seat (vl800k9/ck9) diagram VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

SEAT (VL800K9/CK9) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

SEAT (VL800K9/CK9) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4510043H00V4Y
ref: 1

SEAT ASSY

€ 256.50

2

4511543H00
ref: 2

BRACKET,SEAT

€ 15.00

3

4514931300
ref: 3

CUSHION,SEAT(40X20X15)

€ 2.00

4

4521543H00
ref: 4

CUSHION,SEAT BRACKET

€ 9.00

5

0916006088
ref: 5

WASHER(6.5X20X1.6)

€ 2.00

6

0916006501
ref: 6

WASHER(6.5X24X1.6)

€ 2.00

7

0918006288
ref: 7

SPACER(6.5X10X11)

€ 1.50

8

0932110002
ref: 8

CUSHION(11.5X22X20)

€ 2.00

9

0932110033
ref: 9

CUSHION

€ 3.50

10

083161006A
ref: 10

NUT

€ 2.50

11

0910606064
ref: 11

BOLT(6X18)

€ 6.00

12

4530043H00V4Y
ref: 12

SEAT ASSY,PILLION

€ 173.50

13

4514712FA0
ref: 13

CUSHION,RR

€ 3.50

14

4533043H00
ref: 14

BRACKET,PILLION SEAT

€ 22.50

15

4538043H00
ref: 15

BAND, SEAT PILLION

€ 0.00

16

0916006088
ref: 16

WASHER(6.5X20X1.6)

€ 2.00

17

0932110002
ref: 17

CUSHION(11.5X22X20)

€ 2.00

18

083161006A
ref: 18

NUT

€ 2.50

19

0910608140
ref: 19

BOLT(8X16)

€ 6.00

20

4521043H00
ref: 20

BRACKET,SEAT SUPPORT

€ 13.00
