MAGNETO

VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

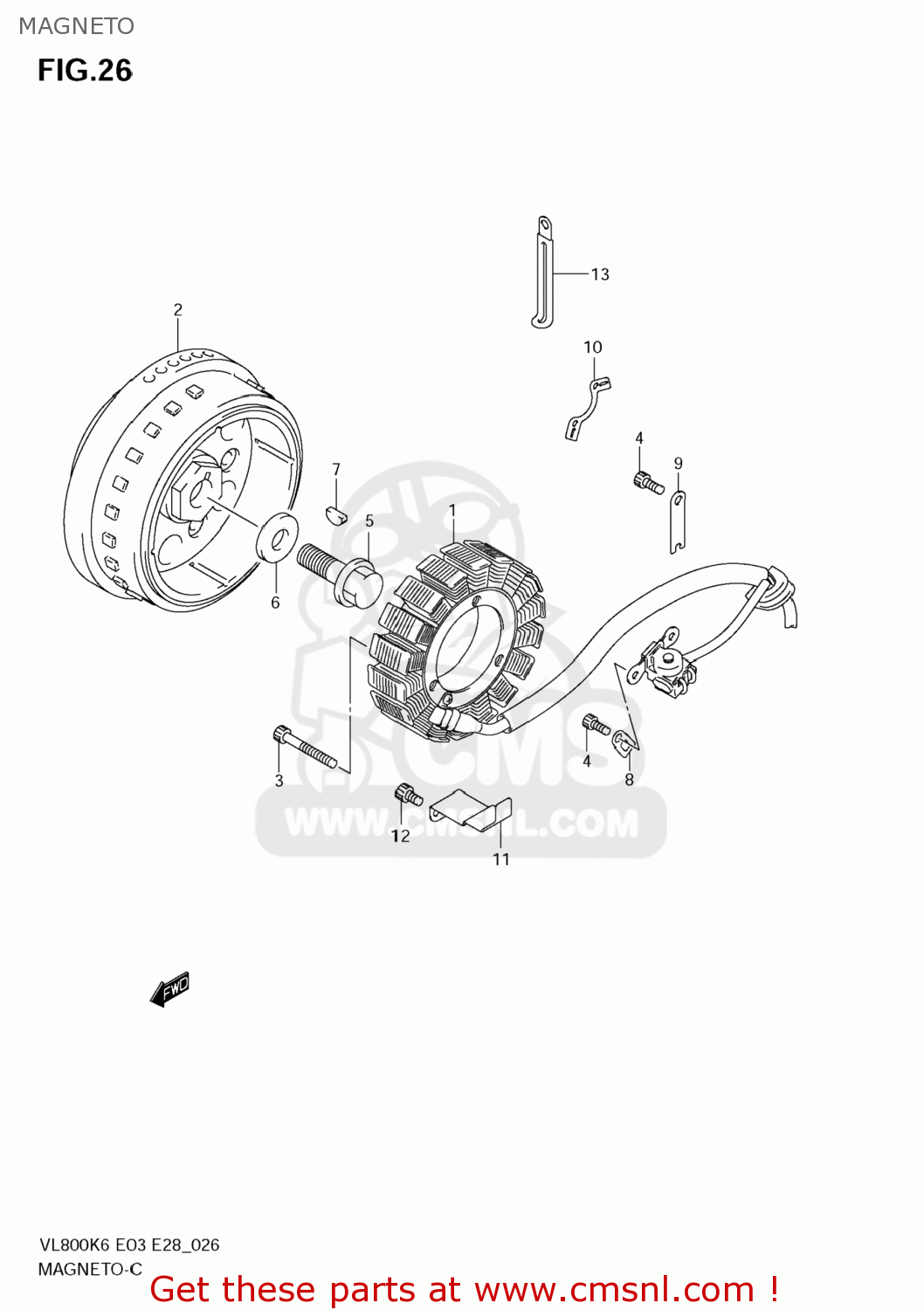

Magneto diagram VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

3210141F10
ref: 1

STARTER ASSY

€ 400.50

3210241F10
ref: 2

ROTOR ASSY

€ 413.00

071300640B
ref: 3

BOLT

€ 3.50

071300510B
ref: 4

BOLT

€ 2.00

0910314001
ref: 5

BOLT(14X43)

€ 7.00

0916014021
ref: 6

WASHER(14X29X4)

€ 5.00

0942005007
ref: 7

KEY

€ 3.00

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 1.50

3237138A10
ref: 9

CLAMP NO.1,MAGNETO READ WIRE

€ 1.50

3237141F00
ref: 10

CLAMP,MAGNETO LEAD

€ 2.00

3237145C00
ref: 11

CLAMP,MAGNETO LEAD WIRE

€ 3.00

071300610B
ref: 12

BOLT

€ 2.50

0940408419
ref: 13

CLAMP(L:80)

€ 2.00
