REAR FENDER (VL800K6/TK6/CK6/K7/TK7)

VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

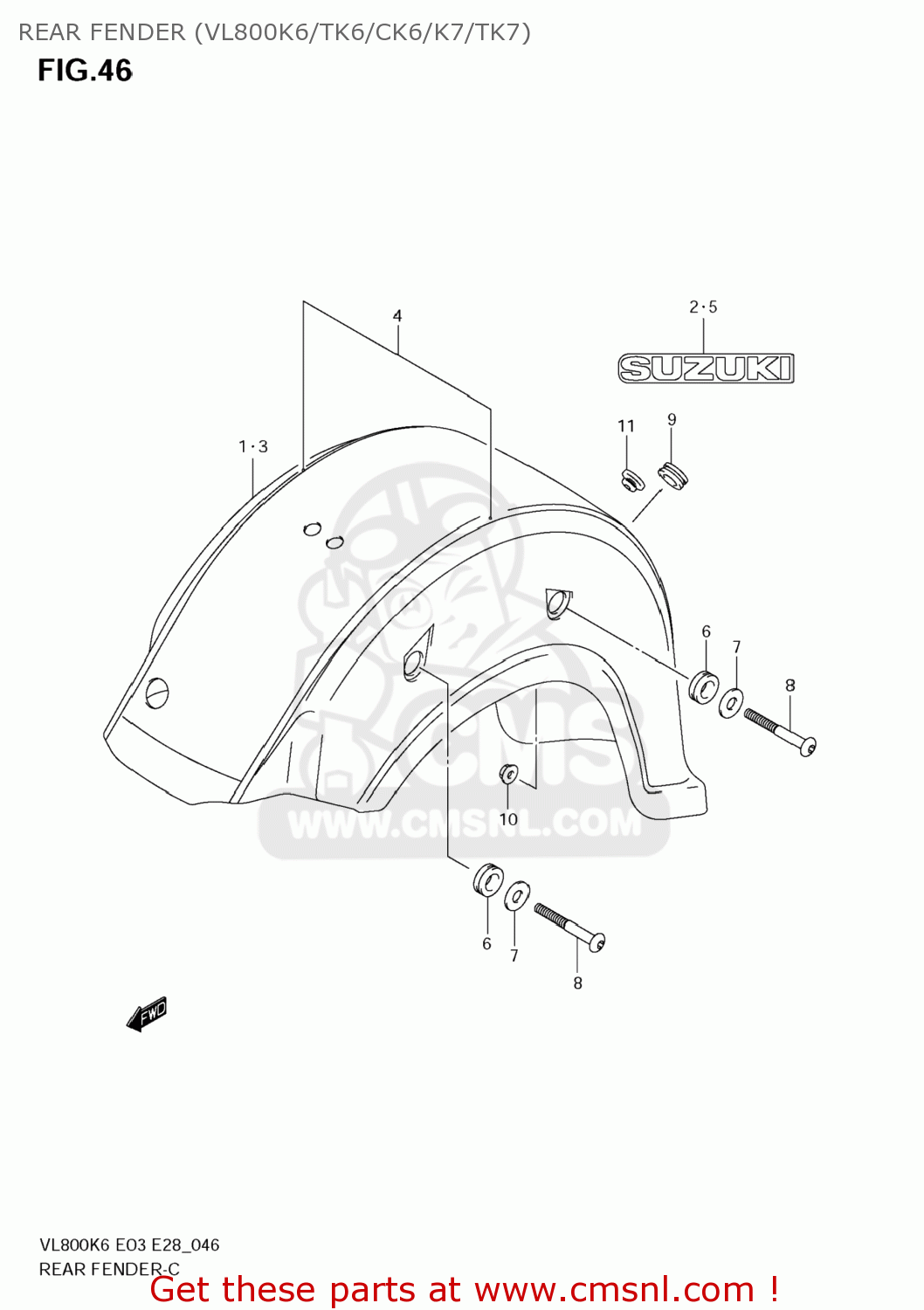

Rear fender (vl800k6/tk6/ck6/k7/tk7) diagram VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

REAR FENDER (VL800K6/TK6/CK6/K7/TK7) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

REAR FENDER (VL800K6/TK6/CK6/K7/TK7) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

6311041F70YAY
ref: 1-1

FENDER,RR

€ 498.50

1-2

6311041F70YHF
ref: 1-2

FENDER,RR

€ 0.00

1-3

6311041FE0YC3
ref: 1-3

FENDER,RR

€ 490.50

2

6827134A00YES
ref: 2

EMBLEM,SUZUKI

€ 6.50

3-1

6311041F80CFG
ref: 3-1

FENDER,RR

€ 572.50

3-2

6311041F80CFH
ref: 3-2

FENDER,RR

€ 572.50

3-3

6311041F80CZW
ref: 3-3

FENDER,RR

€ 1,083.50

3-4

6311041F80CZZ
ref: 3-4

FENDER,RR

€ 736.00

4-1

6817041F20CGY
ref: 4-1

TAPE SET,RR FENDER

€ 161.50

4-2

6817041F20CGZ
ref: 4-2

TAPE SET,RR FENDER

€ 161.50

4-3

6817041F20DNU
ref: 4-3

TAPE SET,RR FENDER

€ 181.00

4-4

6817041F20DNT
ref: 4-4

TAPE SET,RR FENDER

€ 181.00

5-1

6827134A00YJH
ref: 5-1

EMBLEM,SUZUKI

€ 8.50

5-2

6827134A00YES
ref: 5-2

EMBLEM,SUZUKI

€ 6.50

6

4719124F00
ref: 6

CUSHION,FRAME COVER UPR RR

€ 3.00

7

0916015002
ref: 7

WASHER(15.5X26X2.3)

€ 2.00

8

6316141F00
ref: 8

BOLT,RR FENDER

€ 5.00

9

0932015008
ref: 9

CUSHION

€ 3.50

10

0831610083
ref: 10
08316-1008B

NUT

€ 3.00

11

0932110007
ref: 11

CUSHION

€ 4.50
