WATER PUMP

VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

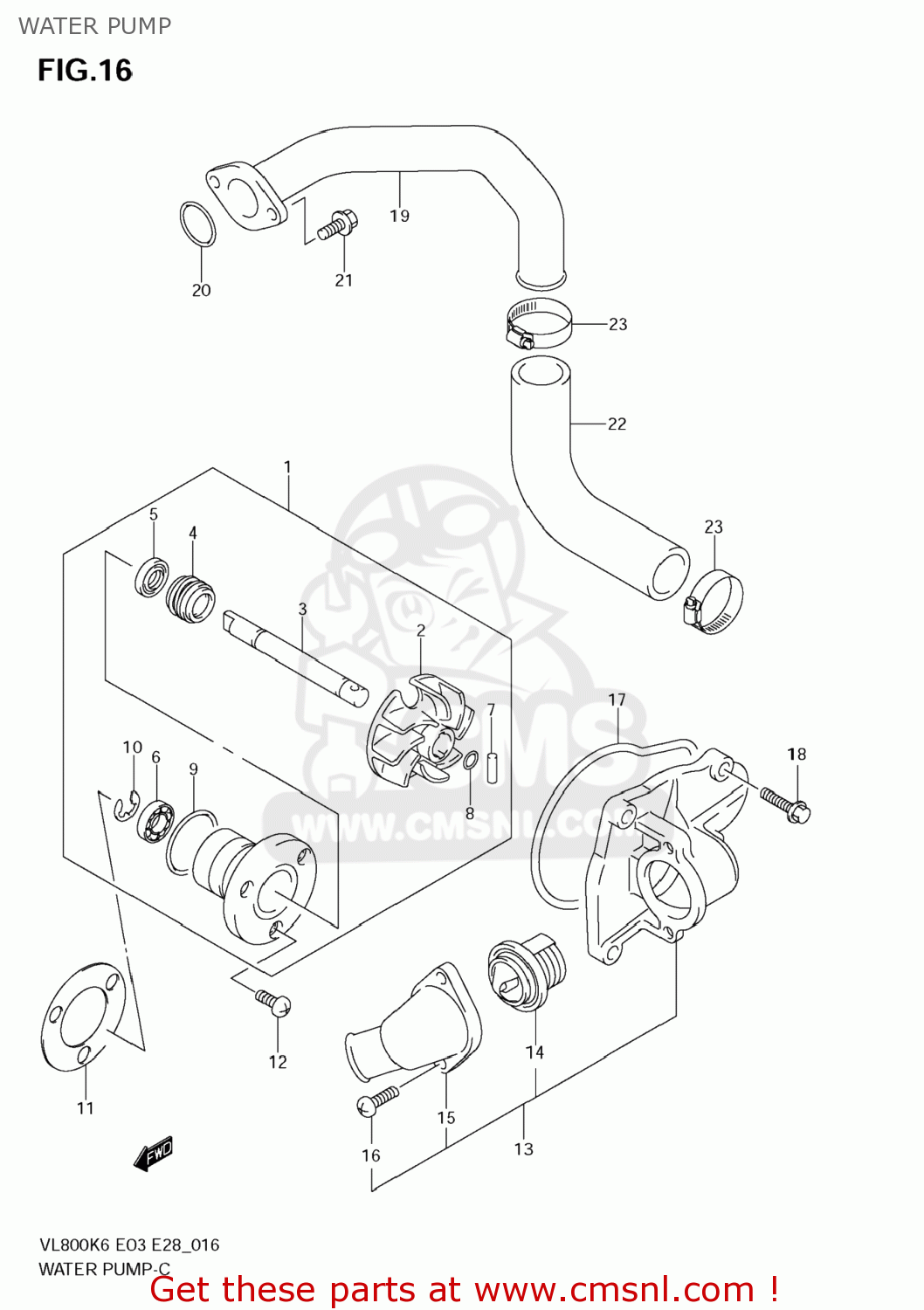

Water pump diagram VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

WATER PUMP VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

WATER PUMP VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1740038A10
ref: 1

PUMP ASSY,WATER

€ 133.50

2

1749138A00
ref: 2

IMPELLER

€ 12.50

3

1751138A00
ref: 3

SHAFT

€ 30.50

4

1747002F10
ref: 4

SEAL,MECHANICAL

€ 21.50

5

0928310004
ref: 5

SEAL,OIL(10X21X5)

€ 4.50

6

0926210004
ref: 6

BEARING(10X22X6)

€ 20.50

7

1751638A00
ref: 7

PIN

€ 4.00

8

1751538A00
ref: 8

O RING

€ 1.50

9

1741738A00
ref: 9

O RING

€ 2.50

10

0833211086
ref: 10
08332-1108A

E RING

€ 2.00

11

1743138A10
ref: 11

GASKET,WATER PUMP (NAS)

€ 5.00

12

021120612B
ref: 12

SCREW

€ 1.50

13-1

1741041F10
ref: 13-1

CAP ASSY,WATER PUMP

€ 96.50

13-2

1741041F30
ref: 13-2

CAP ASSY,WATER PUMP

€ 100.50

14-1

1767033410
ref: 14-1

THERMOSTAT,WATER

€ 37.00

14-2

1767033400
ref: 14-2

THERMOSTAT,WATER

€ 29.50

15

1741241F00
ref: 15

CONNECTOR

€ 30.00

16

021120616B
ref: 16

SCREW

€ 2.00

17

1743538A00
ref: 17

O RING,WATER PUMP CAP

€ 5.00

18

015470620B
ref: 18

BOLT

€ 2.50

19

1789041F00
ref: 19

PIPE,CYLINDER INLET

€ 29.00

20

0928024007
ref: 20

O RING(D:2.3,ID:24.4)

€ 2.00

21

015470616B
ref: 21

BOLT

€ 2.50

22

1785838820
ref: 22

HOSE,WATER PUMP OUTLET

€ 16.50

23

0940232512
ref: 23

CLAMP

€ 9.00
