HEADLAMP HOUSING

VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

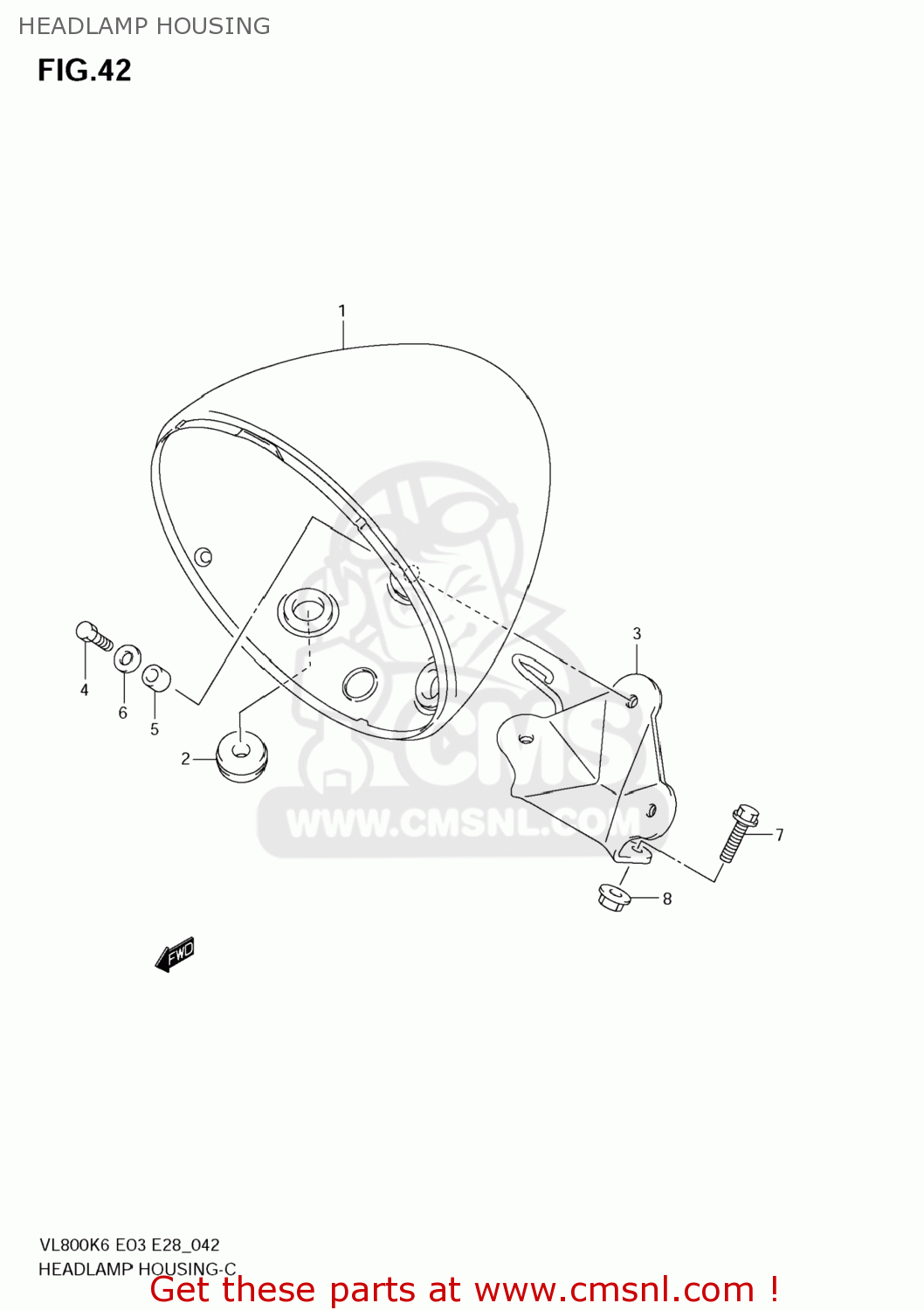

Headlamp housing diagram VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

5180010FA0
ref: 1

HOUSING ASSY,HEADLAMP

€ 225.00

0932009010
ref: 2

CUSHION

€ 2.50

5185041FA0
ref: 3

BRACKET,HEADLAMP HOUSING

€ 294.00

015000625B
ref: 4

BOLT

€ 2.50

5-1

0918006307
ref: 5-1

SPACER(6.5X9X10)

€ 3.00

5-2

0918006266
ref: 5-2

SPACER(6.5X9X11.5)

€ 4.00

6-1

0916006077
ref: 6-1

WASHER(6.5X20X1.2)

€ 2.00

6-2

0916006152
ref: 6-2

WASHER(6.5X20X1.2)

€ 1.50

015500825B
ref: 7

BOLT

€ 2.50

083193108B
ref: 8

NUT

€ 2.50
