WIRING HARNESS (MODEL K9)

VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

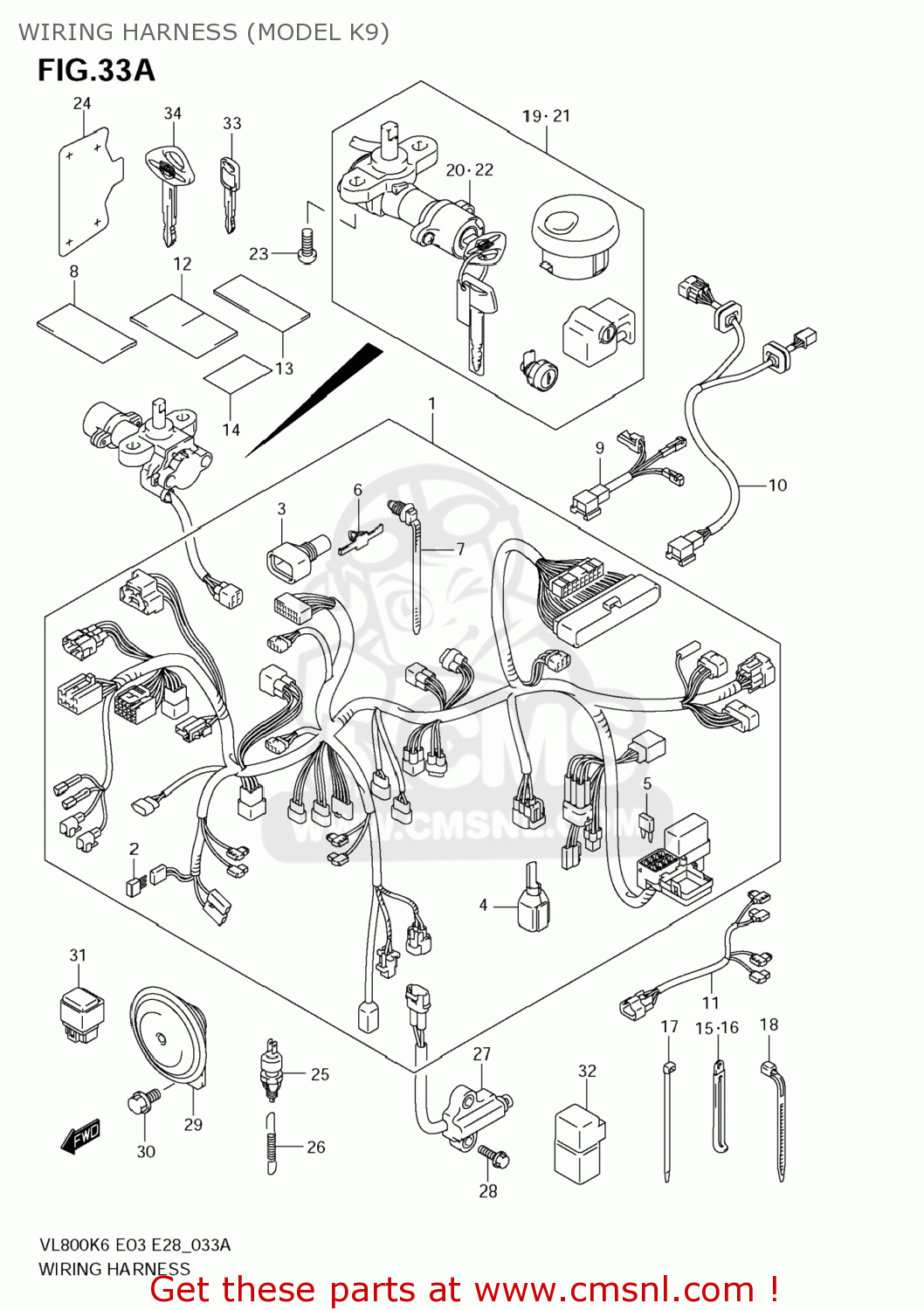

Wiring harness (model k9) diagram VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

WIRING HARNESS (MODEL K9) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

WIRING HARNESS (MODEL K9) VL800 BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

3661041FQ0
ref: 1-1

HARNESS,WIRING

€ 459.50

1-2

3661041FS0
ref: 1-2

HARNESS,WIRING

€ 459.50

2

3280016A00
ref: 2

RECTIFIER ASSY

€ 10.50

3

3661843H00
ref: 3

BOOT

€ 0.00

4

3671741F00
ref: 4

BOOT

€ 8.50

5-1

0948110501
ref: 5-1

FUSE(10A)

€ 3.00

5-2

0948120501
ref: 5-2

FUSE(20A)

€ 1.50

6

0940705410
ref: 6

CLAMP

€ 4.00

7

0940717403
ref: 7

CLAMP(L:154)

€ 5.50

8

3661116G00
ref: 8

TAPE,WIRING HARNESS(28X50X0.13

€ 2.00

9

3685641F00
ref: 9

WIRE,RR COMB NO.2

€ 21.50

10

3685841F00
ref: 10

WIRE,RR COMB

€ 28.50

11

3685439G00
ref: 11

WIRE,IGNITION COIL LEAD

€ 33.50

12

3692033C00
ref: 12

PROTECTOR,HARNESS(30X50X3)

€ 2.00

13

3692045G00
ref: 13

PROTECTOR,WIRING HARNESS

€ 2.50

14

9447417H00
ref: 14

PROTECTOR,COWLING UNDER

€ 2.00

15

0940406433
ref: 15

CLAMP(L:80)

€ 3.00

16

0940406435
ref: 16

CLAMP(L:135)

€ 2.50

17

0940714407
ref: 17

CLAMP(L:145)

€ 4.00

18-1

0940718402
ref: 18-1

CLAMP(L:165)

€ 2.50

18-2

0940719401
ref: 18-2

CLAMP(L:190)

€ 2.00

19

3710241870
ref: 19

LOCK SET

€ 0.00

20

3710041F70
ref: 20

LOCK ASSY,STEERING

€ 168.50

21

3710241880
ref: 21

LOCK SET

€ 0.00

22

3710041F70
ref: 22

LOCK ASSY,STEERING

€ 168.50

23

0913908016
ref: 23

BOLT(8X20)

€ 3.50

24

3718741F10
ref: 24

PROTECTOR,IGNITION SWITCH

€ 12.00

25

3774024A00
ref: 25

SWITCH ASSY,STOP LAMP

€ 20.50

26

0944306073
ref: 26

SPRING

€ 3.00

27

3784041F00
ref: 27

SWITCH ASSY,SIDE STAND

€ 65.00

28

0910306279
ref: 28

BOLT(6X20)

€ 3.00

29

3850041F30
ref: 29

HORN ASSY

€ 54.50

30

015500816A
ref: 30

BOLT

€ 2.50

31

3874024A00
ref: 31

RELAY ASSY

€ 39.00

32

3874024X50
ref: 32

RELAY ASSY

€ 37.50

33

3714641F10
ref: 33

KEY,BLANK

€ 26.00

34

3714641FA0
ref: 34

KEY,BLANK(BOULEVARD)

€ 64.50
