CRANKCASE

VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

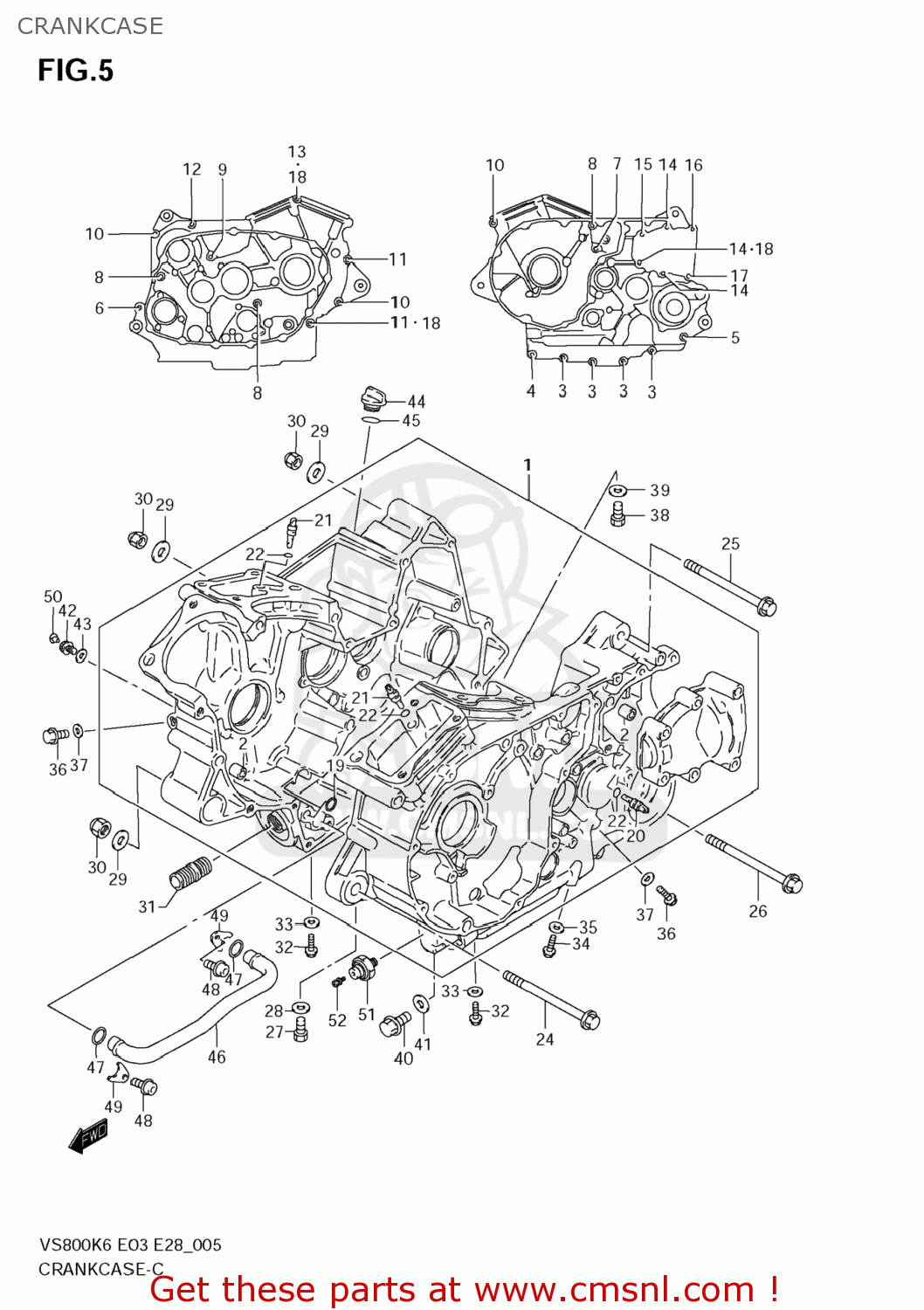

Crankcase diagram VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

CRANKCASE VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)
CRANKCASE VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)
CRANKCASE VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
1130138852
ref: 1
11301-38853
CRANKCASE SET
€ 1,659.00
2
0920611007
ref: 2
PIN(8.4X11X20)
0920611007
€ 1.50
3
0155006407
ref: 3
BOLT
0155006407
€ 2.50
4
0155008357
ref: 4
BOLT
0155008357
€ 3.50
5
0155008557
ref: 5
BOLT
0155008557
€ 3.00
6
0155008607
ref: 6
BOLT
0155008607
€ 3.50
7
015500875A
ref: 7
BOLT
015500875A
€ 3.00
8
015500895A
ref: 8
BOLT
015500895A
€ 2.50
9
0910308109
ref: 9
BOLT(8X120)
0910308109
€ 3.50
10
0910308164
ref: 10
BOLT(8X95)
0910308164
€ 3.50
11
0910308165
ref: 11
BOLT(8X105)
0910308165
€ 3.50
12
0910308166
ref: 12
BOLT(8X120)
€ 5.00
13
0910308167
ref: 13
BOLT(8X160)
0910308167
€ 6.00
14
0155008407
ref: 14
BOLT
0155008407
€ 3.50
15
0155008507
ref: 15
BOLT
0155008507
€ 3.50
16
0910308162
ref: 16
BOLT(8X55)
0910308162
€ 3.00
17
0910308163
ref: 17
BOLT(8X65)
0910308163
€ 4.50
18
0916808016
ref: 18
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
19
0928012009
ref: 19
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
19
0928012009
ref: 19
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
20
0949320014
ref: 20
JET,OIL GALLERY
0949320014
€ 8.00
21
0949328010
ref: 21
JET,AIR(14)
0949328010
€ 10.50
22
0928004004
ref: 22
O RING(D:1.2,ID:4)
0928004004
€ 2.00
23-1
0916048001
ref: 23-1
WASHER(48.1X64X1.94)
0916048001
€ 18.50
23-10
0916048010
ref: 23-10
WASHER(48.1X64X2.16)
0916048010
€ 17.00
23-2
0916048002
ref: 23-2
WASHER(48.1X64X1.96)
0916048002
€ 17.00
23-3
0916048003
ref: 23-3
WASHER(48.1X64X1.99)
0916048003
€ 17.00
23-4
0916048004
ref: 23-4
WASHER(48.1X64X2.01)
0916048004
€ 17.00
23-5
0916048005
ref: 23-5
WASHER(48.1X64X2.04)
0916048005
€ 17.00
23-6
0916048006
ref: 23-6
WASHER(48.1X64X2.06)
0916048006
€ 17.00
23-7
0916048007
ref: 23-7
WASHER(48.1X64X2.09)
0916048007
€ 17.00
23-8
0916048008
ref: 23-8
WASHER(48.1X64X2.11)
0916048008
€ 17.00
23-9
0916048009
ref: 23-9
WASHER(48.1X64X2.14)
0916048009
€ 17.00
24
0910310141
ref: 24
BOLT(10X125)
0910310141
€ 6.00
25
0910310122
ref: 25
BOLT(10X130)
0910310122
€ 9.50
26
0910310078
ref: 26
BOLT(10X150)
0910310078
€ 8.50
27
0924712011
ref: 27
PLUG(12X20)
0924712011
€ 4.50
28
0916812002
ref: 28
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
29
083220110B
ref: 29
WASHER
083220110B
€ 2.50
30
0915910052
ref: 30
NUT
0915910052
€ 8.50
31
1659106B00
ref: 31
16591-06B01
UNION,OIL STAND
1659106B00
€ 6.00
32
015500812B
ref: 32
BOLT
015500812B
€ 3.50
33
0916808016
ref: 33
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
34
0924710008
ref: 34
PLUG(10X12)
0924710008
€ 3.00
35
0916810002
ref: 35
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
36
015500610B
ref: 36
BOLT
015500610B
€ 2.50
37
0916806023
ref: 37
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
38
0924816013
ref: 38
PLUG
0924816013
€ 4.50
39
0916816002
ref: 39
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
40
0924714026
ref: 40
PLUG(14X12)
0924714026
€ 3.50
41
0916814002
ref: 41
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
42
0712008127
ref: 42
BOLT
€ 2.50
43
0916808016
ref: 43
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
44
1197125D00
ref: 44
PLUG,ENGINE OIL FILLER
1197125D00
€ 5.50
45
0928017003
ref: 45
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
46
1145138A00
ref: 46
PIPE,OIL GALLERY
€ 13.50
47
0928015008
ref: 47
O RING(D:3.1,ID:14.8)
0928015008
€ 1.50
48
0910606075
ref: 48
BOLT(6X12)
0910606075
€ 2.50
49
1146138A00
ref: 49
CLAMP,OIL PIPE
€ 1.50
50
0925006011
ref: 50
CAP(OD:11)
0925006011
€ 2.50
51
3782033D10
ref: 51
SWITCH ASSY,OIL PRESSURE
3782033D10
€ 29.00
52
3782233D00
ref: 52
BOLT,OIL PRESSURE SWITCH
3782233D00
€ 3.00
