HANDLE SWITCH

VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

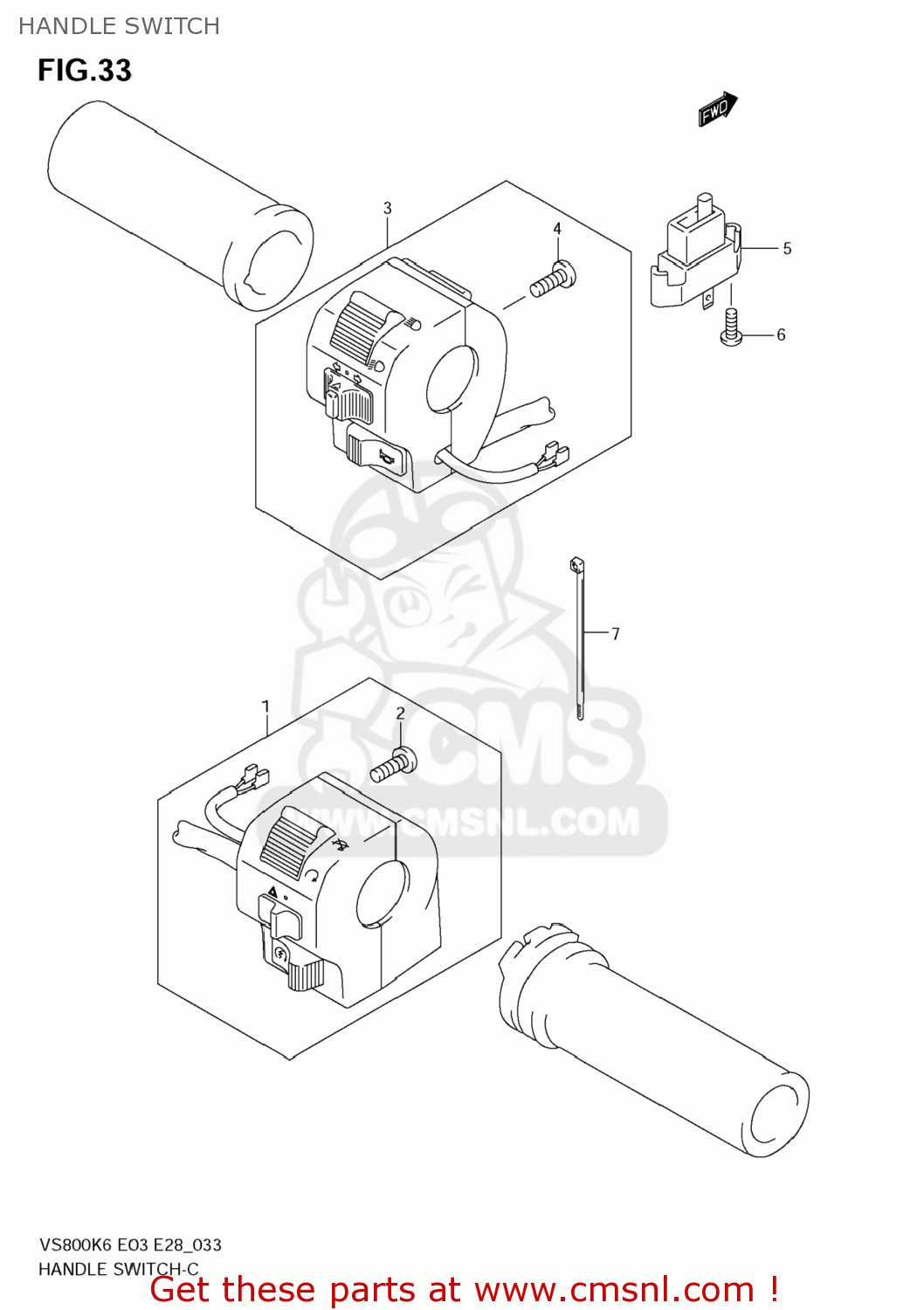

Handle switch diagram VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

HANDLE SWITCH VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

HANDLE SWITCH VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3720038AG0
ref: 1

SWITCH ASSY,HANDLE,R

€ 0.00

2

0211205167
ref: 2

SCREW

€ 2.50

3

3740038AF0
ref: 3

SWITCH ASSY,HANDLE,L

€ 114.50

4

0211205167
ref: 4

SCREW

€ 2.50

5

3756038A00
ref: 5

SWITCH ASSY,CLUTCH

€ 20.00

6

0214203127
ref: 6

SCREW

€ 2.00

7

0940714407
ref: 7

CLAMP(L:145)

€ 4.00
