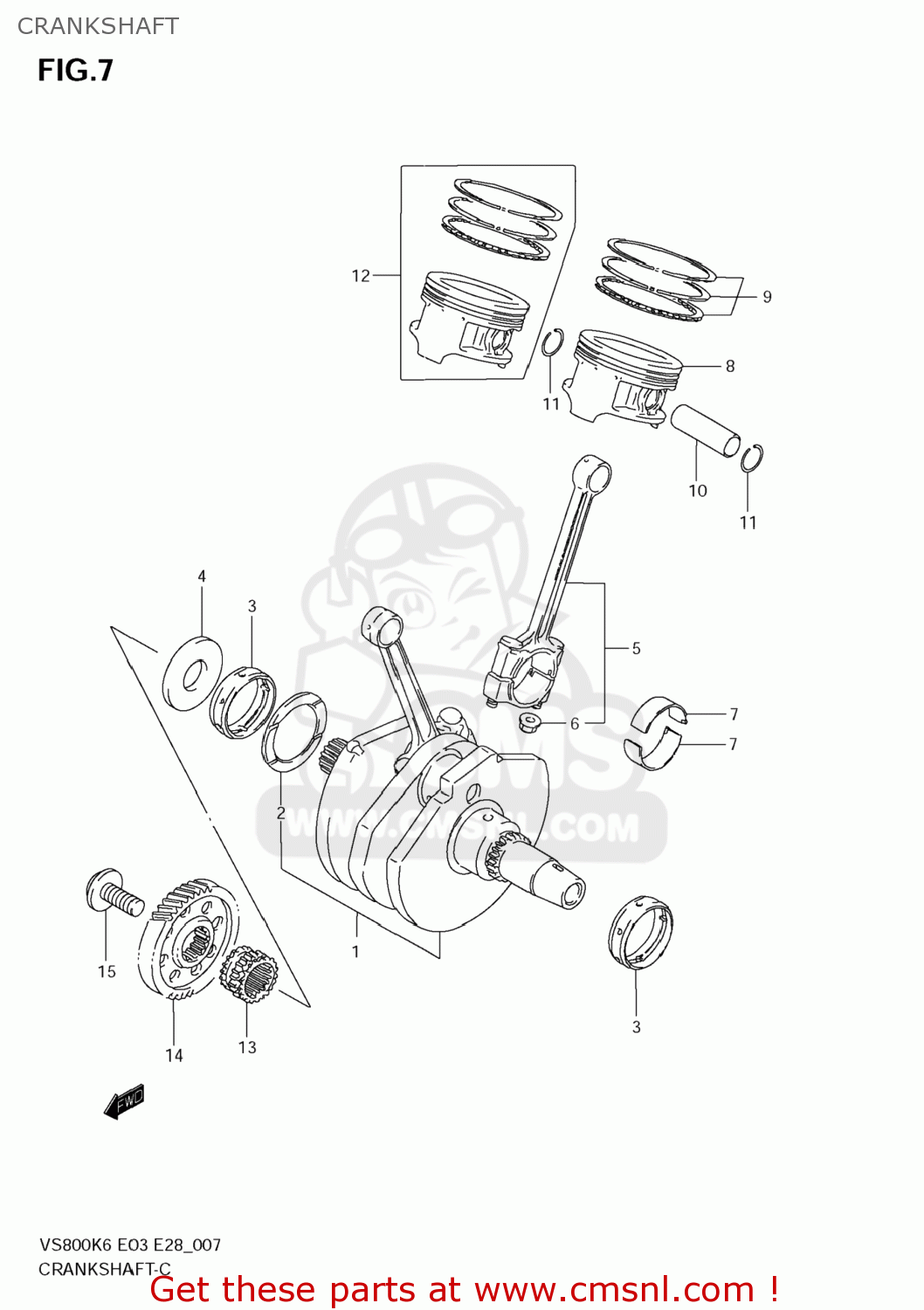

CRANKSHAFT

ref

part #

description

quantity

1

1200038810
ref: 1

CRANKSHAFT SET

€ 1,417.50

2-1

0916048001
ref: 2-1

WASHER(48.1X64X1.94)

€ 18.50

2-10

0916048010
ref: 2-10

WASHER(48.1X64X2.16)

€ 17.00

2-2

0916048002
ref: 2-2

WASHER(48.1X64X1.96)

€ 17.00

2-3

0916048003
ref: 2-3

WASHER(48.1X64X1.99)

€ 17.00

2-4

0916048004
ref: 2-4

WASHER(48.1X64X2.01)

€ 17.00

2-5

0916048005
ref: 2-5

WASHER(48.1X64X2.04)

€ 17.00

2-6

0916048006
ref: 2-6

WASHER(48.1X64X2.06)

€ 17.00

2-7

0916048007
ref: 2-7

WASHER(48.1X64X2.09)

€ 17.00

2-8

0916048008
ref: 2-8

WASHER(48.1X64X2.11)

€ 17.00

2-9

0916048009
ref: 2-9

WASHER(48.1X64X2.14)

€ 17.00

3

1222938A00
ref: 3

METAL,CRANKSHAFT

€ 22.50

4

1265238A00
ref: 4

WASHER,CRANK THRUST

€ 47.00

5-1

1216045C10
ref: 5-1

CONNECTING ROD ASSY

€ 118.50

5-2

1216045C30
ref: 5-2

CONNECTING ROD ASSY

€ 118.50

6

0915909001
ref: 6

NUT

€ 4.50

7-1

1216438E000A0
ref: 7-1

BEARING,CRANK PIN

€ 9.00

7-2

1216438E000B0
ref: 7-2

BEARING,CRANK PIN

€ 9.00

7-3

1216438E000C0
ref: 7-3

BEARING,CRANK PIN

€ 9.50

7-4

1216438E000D0
ref: 7-4

BEARING,CRANK PIN

€ 9.50

7-5

1216438E000E0
ref: 7-5

BEARING,CRANK PIN

€ 9.00

8

1211145C000F0
ref: 8

PISTON

€ 105.50

9

1214045C10
ref: 9

RING SET,PISTON

€ 60.50

10

1215124A00
ref: 10

PIN,PISTON

€ 18.50

11

0938120004
ref: 11

CIRCLIP,PISTON PIN

€ 2.00

12

1210045C00050
ref: 12

PISTON SET(OS:0.5)

€ 147.50

13

1273138A00
ref: 13

SPROCKET,CAM CHAIN DRIVE,R

€ 34.00

14

2111138A00
ref: 14

GEAR,PRIMARY DRIVE

€ 99.50

15

0910312013
ref: 15

BOLT(12X28)

€ 6.00
