CYLINDER

VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

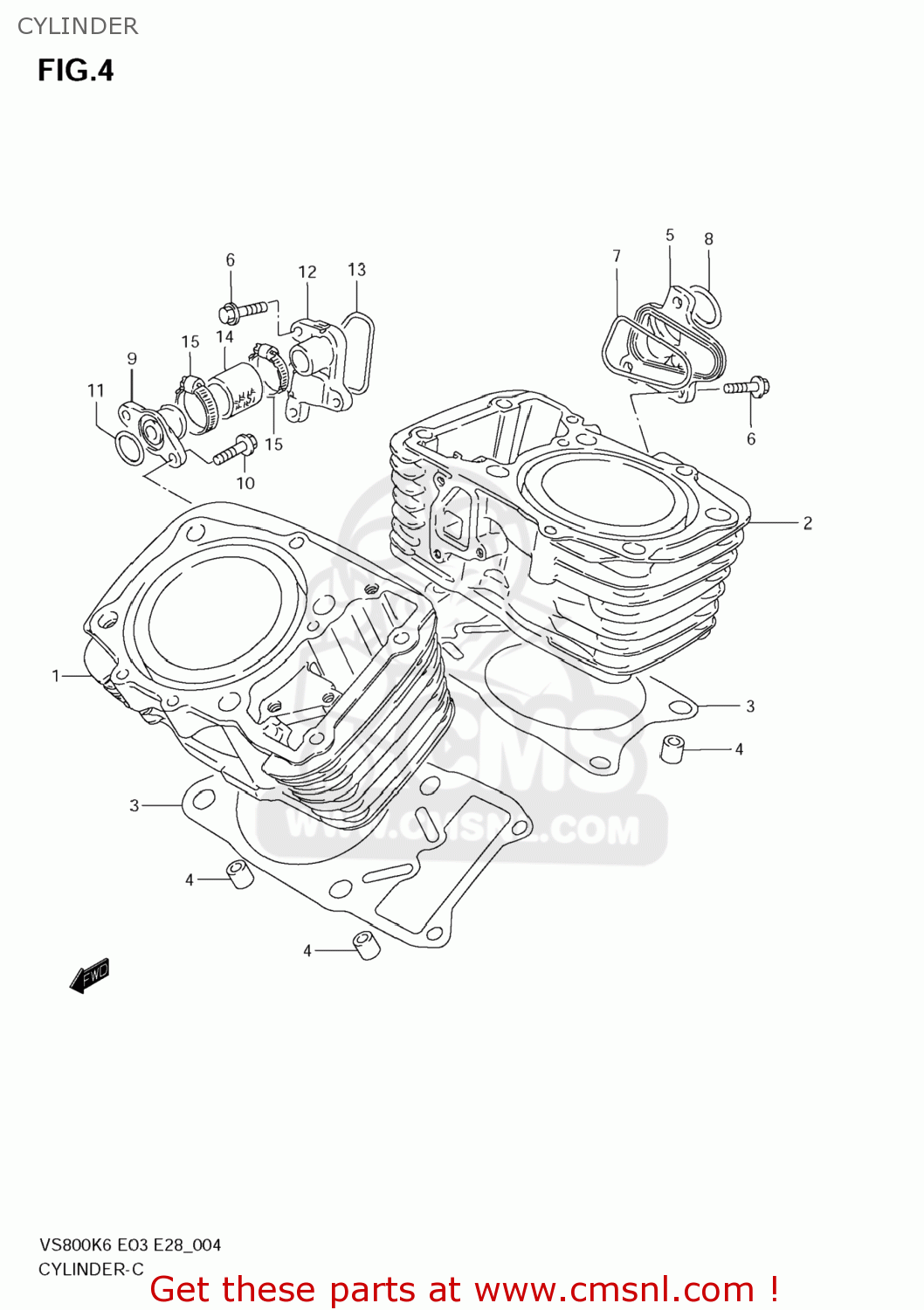

Cylinder diagram VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1121039A500F0
ref: 1

CYLINDER,FR

€ 0.00

1122039A200F0
ref: 2

CYLINDER,RR

€ 508.00

1124145C20
ref: 3

GASKET,CYLINDER (NAS)

€ 16.50

0421113189
ref: 4

PIN

€ 2.50

1123741F00
ref: 5

CONNECTOR,CYLINDER INLET PIPE

€ 28.00

0154706207
ref: 6

BOLT

€ 2.50

1124738A00
ref: 7

O RING,INLET WATER CHAMBER

€ 3.00

0928024007
ref: 8

O RING(D:2.3,ID:24.4)

€ 2.00

1123541F00
ref: 9

UNION,CYL INLET

€ 16.00

0154706167
ref: 10

BOLT

€ 2.00

0928016005
ref: 11

O RING(D:2.4,ID:15.8)

€ 1.50

1123645C10
ref: 12

CHAMBER,WATER OUTLET

€ 26.50

1124638A00
ref: 13

O RING,OUTLET WATER CHAMBER

€ 4.50

1785101A00
ref: 14

HOSE,RADIATOR INLET

€ 17.50

0940228511
ref: 15

CLAMP

€ 8.50

CYLINDER

all assemblies
