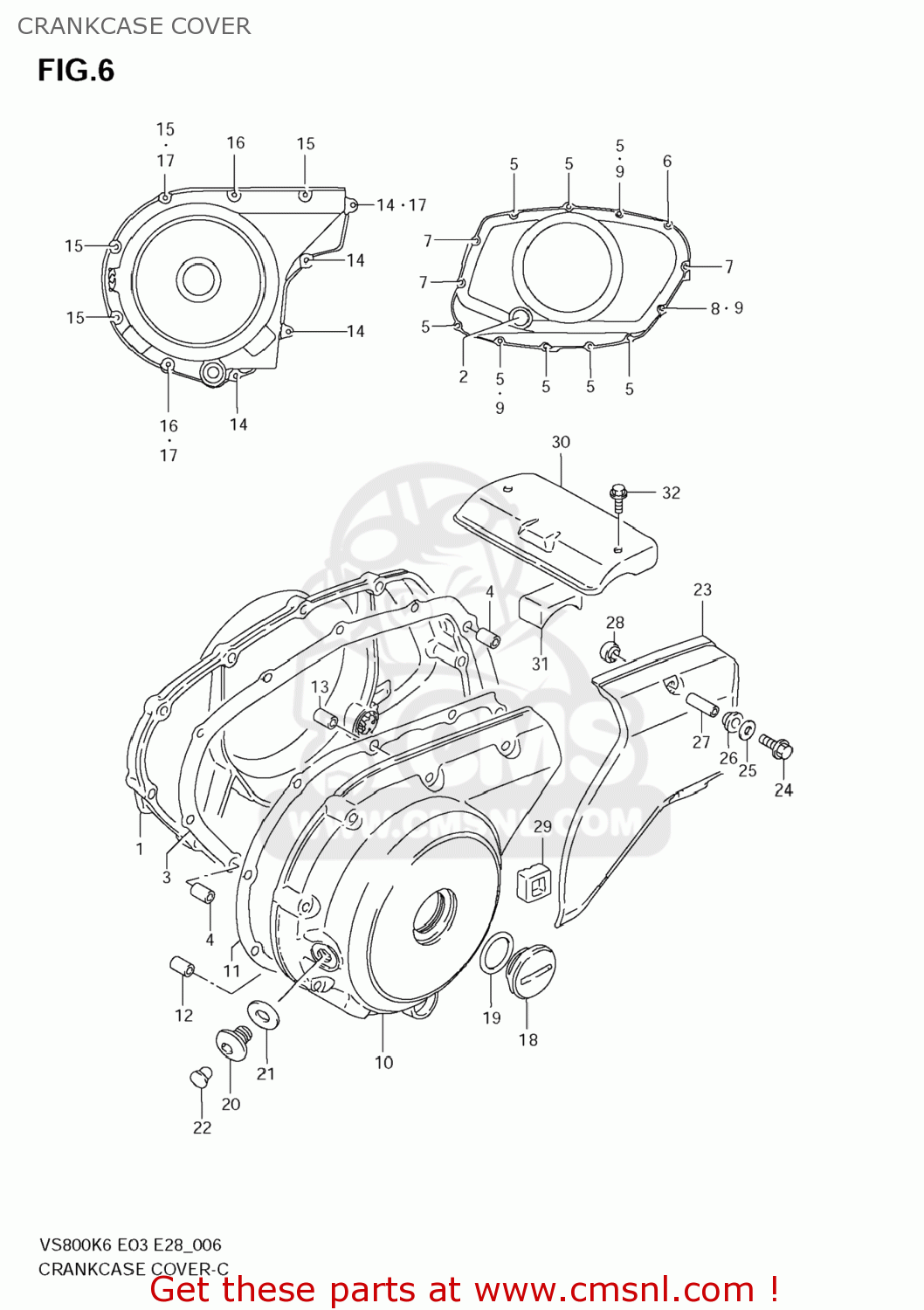

CRANKCASE COVER

ref

part #

description

quantity

1

1134038A00
ref: 1

COVER,CLUTCH

€ 308.50

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148241F00
ref: 3

GASKET,CLUTCH COVER (NAS)

€ 15.50

4

0421109189
ref: 4

PIN

€ 2.00

5

0910306213
ref: 5

BOLT(6X30)

€ 2.50

6

0910306214
ref: 6

BOLT(6X35)

€ 2.50

7

0910306224
ref: 7

BOLT(6X45)

€ 3.00

8

0910306261
ref: 8

BOLT(6X60)

€ 2.50

9

0916806023
ref: 9

GASKET(5.8X13X1.2) (NAS)

€ 2.00

10

1135145C20
ref: 10

COVER,GENERATOR

€ 378.50

11

1148341F00
ref: 11

GASKET,GENERATOR COVER (NAS)

€ 11.50

12

0920611007
ref: 12

PIN(8.4X11X20)

€ 1.50

13

0421109189
ref: 13

PIN

€ 2.00

14

0910306213
ref: 14

BOLT(6X30)

€ 2.50

15

0910306215
ref: 15

BOLT(6X40)

€ 2.00

16

0910306238
ref: 16

BOLT(6X50)

€ 2.50

17

0916806023
ref: 17

GASKET(5.8X13X1.2) (NAS)

€ 2.00

18

0925936008
ref: 18

Chrome Crankshaft Plug

€ 8.50

19

0928033004
ref: 19

O RING(D:3.1,ID:32.7)

€ 2.50

20

0924814005
ref: 20

PLUG,14X12

€ 5.00

21

0916814002
ref: 21
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

22

0925008014
ref: 22

CAP(OD:12)

€ 3.50

23

1136138A50
ref: 23

COVER,SECONDARY GEAR CASE

€ 134.00

24

0910306224
ref: 24

BOLT(6X45)

€ 3.00

25

0916006125
ref: 25

WASHER(6.5X14X1.6)

€ 2.00

26

0916109006
ref: 26

WASHER(8.7X15X2.1)

€ 2.50

27

0918006278
ref: 27

SPACER(6.5X9X33.3)

€ 3.50

28

0916109005
ref: 28

WASHER(8.7X16X5)

€ 2.50

29

1136938A00
ref: 29

DAMPER,SECONDARY COVER

€ 7.50

30

3121038A01
ref: 30

COVER,STARTER MOTOR

€ 22.00

31

3121238A10
ref: 31

DAMPER,MOTOR COVER

€ 4.50

32

0154705087
ref: 32

BOLT

€ 2.00
