TOOL HOLDER

VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

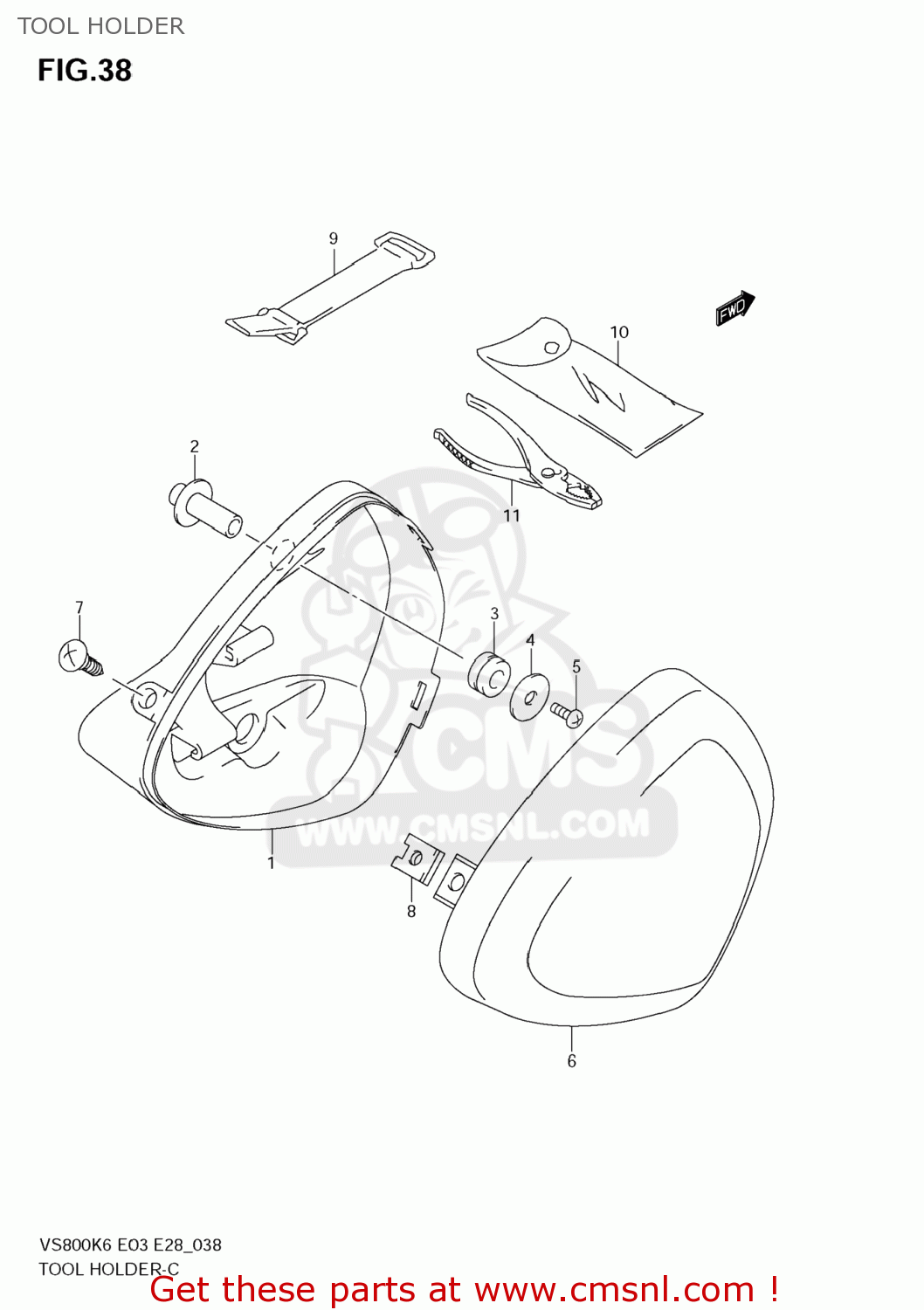

Tool holder diagram VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

4743139A00
ref: 1
47431-39A10

BOX, LUGGAGE V

€ 40.00

4744039A11
ref: 2

SPACER,TOOL HOLDER

€ 7.00

0932010052
ref: 3

CUSHION

€ 4.50

4-1

0916006503
ref: 4-1
09160-06054

WASHER (6.5X22X1.6)

€ 2.00

4-2

0916006158
ref: 4-2

WASHER(6.5X22X1.6)

€ 1.50

021420635B
ref: 5

SCREW

€ 2.00

4743239A00
ref: 6

CAP,TOOL HOLDER

€ 54.50

0913906044
ref: 7

SCREW(6X23)

€ 7.00

0914806018
ref: 8

NUT

€ 2.50

9-1

0946200008
ref: 9-1

BAND

€ 4.50

9-2

0928061002
ref: 9-2

O RING(D:3.5,ID:61)

€ 5.00

10-1

0980021013
ref: 10-1

TOOL ASSY

€ 23.50

10-2

0980021055
ref: 10-2

TOOL ASSY

€ 6.00

0981200009
ref: 11

PLIER(150)

€ 9.00
