SEAT

VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

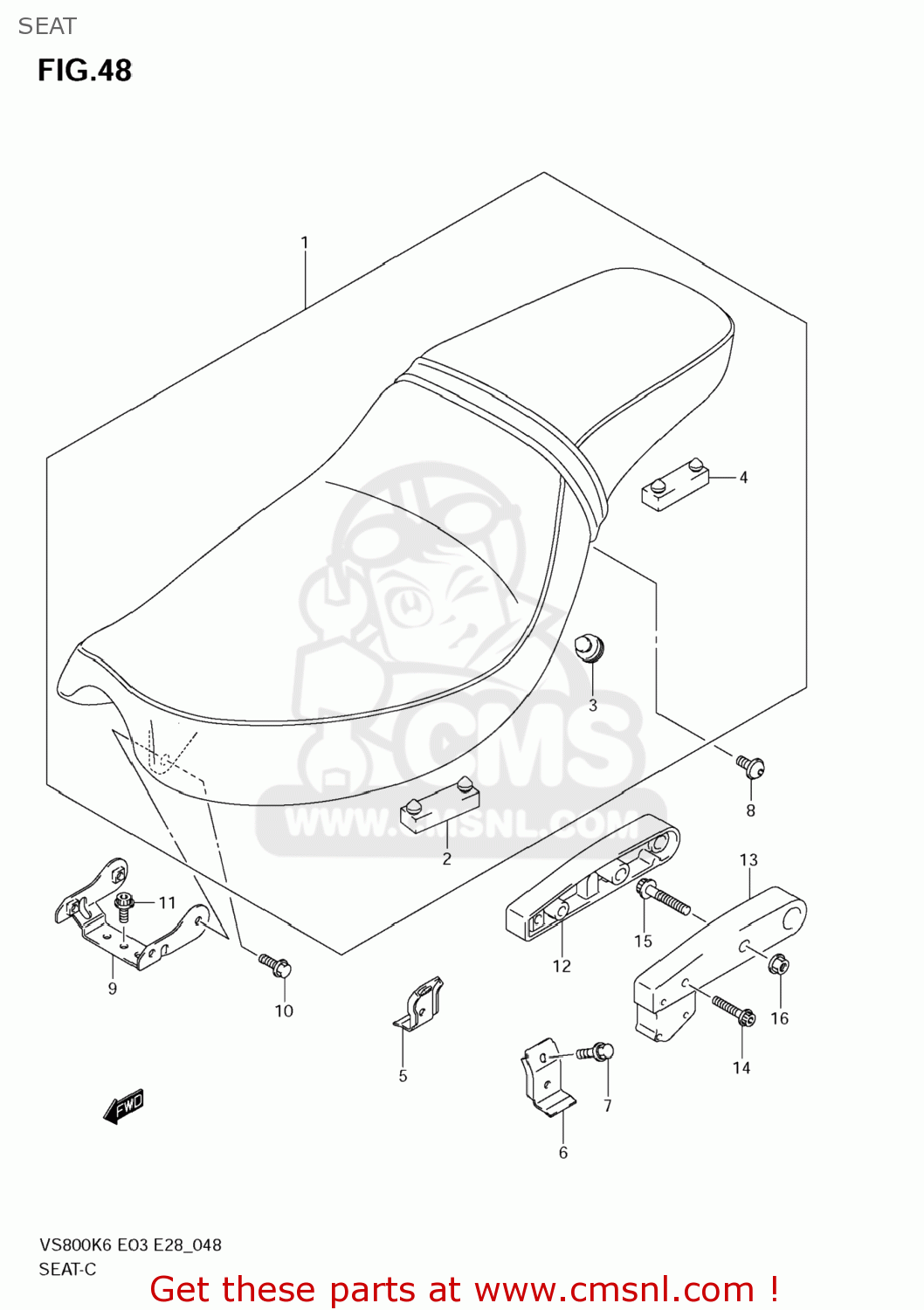

Seat diagram VS800 BOULEVARD S50 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

4510038AA0HW9
ref: 1

SEAT ASSY

€ 417.50

4514943500
ref: 2

CUSHION,SEAT

€ 3.00

0932110002
ref: 3

CUSHION(11.5X22X20)

€ 2.00

0932108009
ref: 4

CUSHION

€ 4.00

4511638AA0
ref: 5

BRACKET,SEAT CTR,R

€ 0.00

4511738AA0
ref: 6

BRACKET,SEAT CTR,L

€ 0.00

0158006167
ref: 7

BOLT

€ 3.00

0910606117
ref: 8

BOLT(6X12)

€ 3.50

4521038A03
ref: 9

BRACKET,SEAT FR

€ 18.50

0911306001
ref: 10

BOLT(6X16)

€ 3.00

071200616B
ref: 11

BOLT

€ 2.50

4621238A41
ref: 12

HANDLE,PILLION RIDER,R

€ 80.50

4621338A41
ref: 13

HANDLE,PILLION RIDER,L

€ 78.50

015800635B
ref: 14

BOLT

€ 3.50

015800845B
ref: 15

BOLT

€ 4.00

083161008B
ref: 16

NUT

€ 3.00
