BATTERY
VS800GL INTRUDER 2001 (K1) USA (E03)

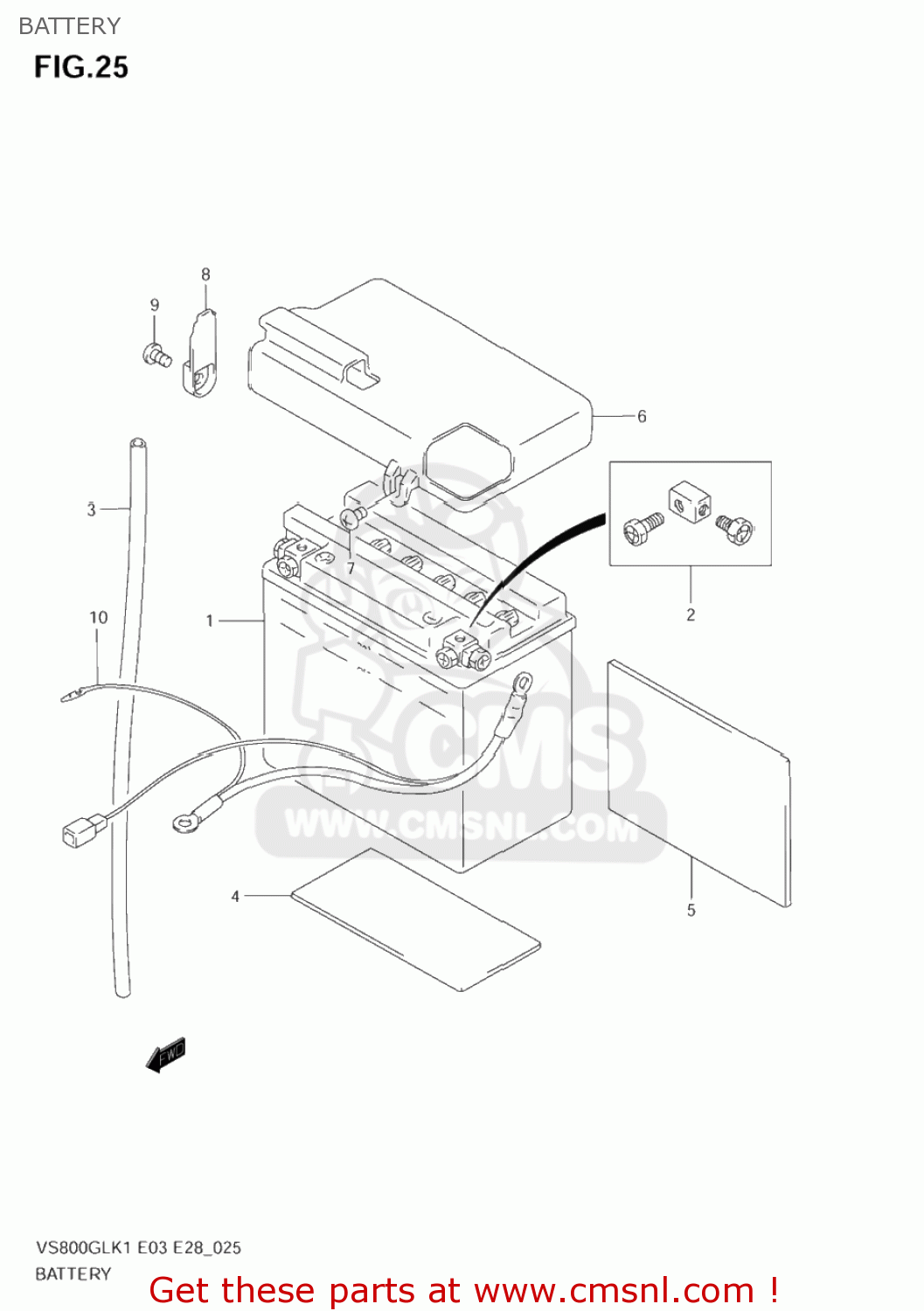

Battery diagram VS800GL INTRUDER 2001 (K1) USA (E03)
BATTERY VS800GL INTRUDER 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361038A01
ref: 1
BATTERY ASSY (12V)
€ 119.50
2
3362638A01
ref: 2
BOLT SET,BATTERY TERMINAL
€ 22.00
3
3368016A10
ref: 3
HOSE,BATTERY EXHAUST(L:780)
€ 4.50
4
3365137000
ref: 4
PROTECTOR(170X95X3.0)
€ 5.00
4
3365137000
ref: 4
PROTECTOR(170X95X3.0)
€ 5.00
5
3365207D00
ref: 5
PROTECTOR(80X80X2)
€ 4.50
5
3365207D00
ref: 5
PROTECTOR(80X80X2)
€ 4.50
6
3365838A30
ref: 6
COVER,BATTERY UPR
€ 8.50
7
0214205083
ref: 7
02142-0508A
SCREW
€ 2.00
8
3365838A40
ref: 8
COVER,BATTERY TERMINAL
€ 2.00
9
0214205083
ref: 9
02142-0508A
SCREW
€ 2.00
10
3386038A00
ref: 10
WIRE,BATTERY MINUS LEAD
€ 17.50
