CARBURETOR (FRONT)
VS800GL INTRUDER 2001 (K1) USA (E03)

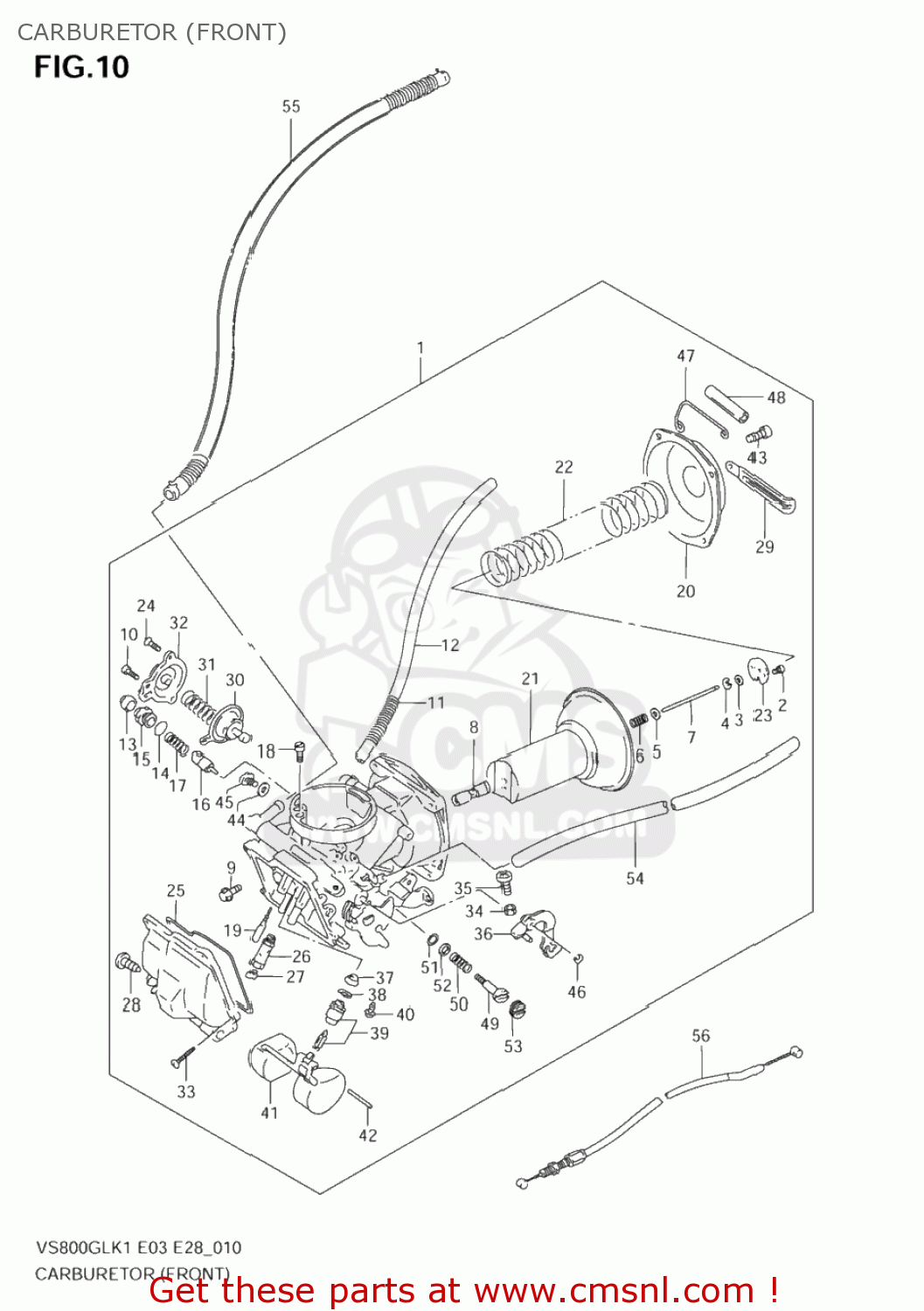

Carburetor (front) diagram VS800GL INTRUDER 2001 (K1) USA (E03)
CARBURETOR (FRONT) VS800GL INTRUDER 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1321038E10
ref: 1-1
13210-38E11
CARBURETOR ASSEMBLY,FRONT
€ 363.00
1-2
1321038E11
ref: 1-2
CARBURETOR ASSY,FR
€ 363.00
1-3
1321038E50
ref: 1-3
13210-38E51
CARBURETOR ASSEMBLY,FRONT
€ 363.00
1-4
1321038E51
ref: 1-4
CARBURETOR ASSY, FRONT
€ 363.00
2
0211233073
ref: 2
SCREW
€ 0.00
3
1338747010
ref: 3
RING
€ 7.50
4
1339410010
ref: 4
CLIP
€ 4.50
5
1338244030
ref: 5
WASHER
€ 3.50
6
1338844030
ref: 6
SPRING
€ 6.00
7
1338345C20
ref: 7
NEEDLE,JET
€ 10.00
8
0949400892
ref: 8
JET,NEEDLE(P-2M)
€ 0.00
9
1360538B00
ref: 9
SCREW
€ 7.50
10
0211204103
ref: 10
02112-0410A
SCREW
€ 1.00
11
1368938A00
ref: 11
SPRING
€ 8.50
12
0935250823600
ref: 12
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
13
1368104010
ref: 13
CAP
€ 3.00
14
1327847090
ref: 14
O RING
€ 2.00
15
1341838A00
ref: 15
HOLDER,GUIDE
€ 11.50
16
1341101400
ref: 16
PLUNGER,STARTER
€ 11.50
17
1341708210
ref: 17
SPRING
€ 4.50
18
0949265005
ref: 18
JET,AIR(65)
€ 7.50
19
0949240021
ref: 19
JET,PILOT(40)
€ 17.50
20
1350238A00
ref: 20
COVER,DIAPHRAGM
€ 34.00
21
1350005A10
ref: 21
DIAPHRAGM,CARBURETOR
€ 178.00
22
1350338B00
ref: 22
SPRING,DIAPHRAGM
€ 12.00
23
1338937400
ref: 23
PLATE
€ 5.50
24
0212204103
ref: 24
02122-0410A
SCREW,UPPER
€ 2.50
25
1325138A00
ref: 25
O RING,FLOAT CHAMBER
€ 6.50
26
1338505A11
ref: 26
HOLDER,MAIN JET
€ 14.00
27
0949125018
ref: 27
JET,MAIN(127.5)
€ 15.50
28
1324713A00
ref: 28
13247-02340
SCREW,DRAIN
€ 5.50
29
0940406432
ref: 29
CLAMP(L:65)
€ 2.50
30
1348005A10
ref: 30
DIAPHRAGM ASSY
€ 54.50
31
1348145C10
ref: 31
SPRING
€ 5.50
32
1348438A00
ref: 32
COVER
€ 20.50
33
1360104148
ref: 33
SCREW
€ 2.50
34
0831000047
ref: 34
NUT
€ 2.00
35
0211204303
ref: 35
02112-0430B
SCREW
€ 2.00
36
1355438A00
ref: 36
LEVER,ASSY
€ 15.00
37
1337619F00
ref: 37
FILTER
€ 6.50
38
1337435C00
ref: 38
O RING,NEEDLE VALVE SEAT
€ 6.00
39
1337039A00
ref: 39
VALVE ASSY,NEEDLE
€ 67.50
40
1360205A10
ref: 40
SCREW
€ 4.00
41
1325038B00
ref: 41
FLOAT
€ 32.00
42
1325420010
ref: 42
PIN,FLOAT
€ 3.00
43
0211205127
ref: 43
SCREW
€ 2.50
44
1352346110
ref: 44
GASKET,DRAIN PLUG (NAS)
€ 3.00
45
0211205063
ref: 45
02112-0506B
SCREW
€ 2.00
46
1341538300
ref: 46
E RING
€ 2.00
47
1367138A00
ref: 47
CLIP
€ 10.50
48
0935260103600
ref: 48
HOSE(6X10X600)
€ 18.00
49-1
1327947070
ref: 49-1
SCREW,PILOT
€ 11.50
49-2
1327947070
ref: 49-2
SCREW,PILOT
€ 11.50
50
1326847070
ref: 50
SPRING
€ 5.00
51
1329529900
ref: 51
O RING,PILOT AIR SCREW
€ 4.00
52
1329129900
ref: 52
WASHER
€ 2.00
53
1328105A00
ref: 53
PLUG
€ 3.50
54
1368338B00
ref: 54
13683-38B01
(CA) HOSE SET,FUEL
€ 19.50
55
1368338A20
ref: 55
13683-38A21
HOSE ASSEMBLY
€ 70.00
56-1
1364138A00
ref: 56-1
13641-38A01
CABLE,IDLE SYNCRO
€ 16.50
56-2
1364138A01
ref: 56-2
CABLE,IDLE SYNCRO
€ 16.50
