FRONT DAMPER (MODEL K1/K2/K3/K4)

VS800GL INTRUDER 2001 (K1) USA (E03)

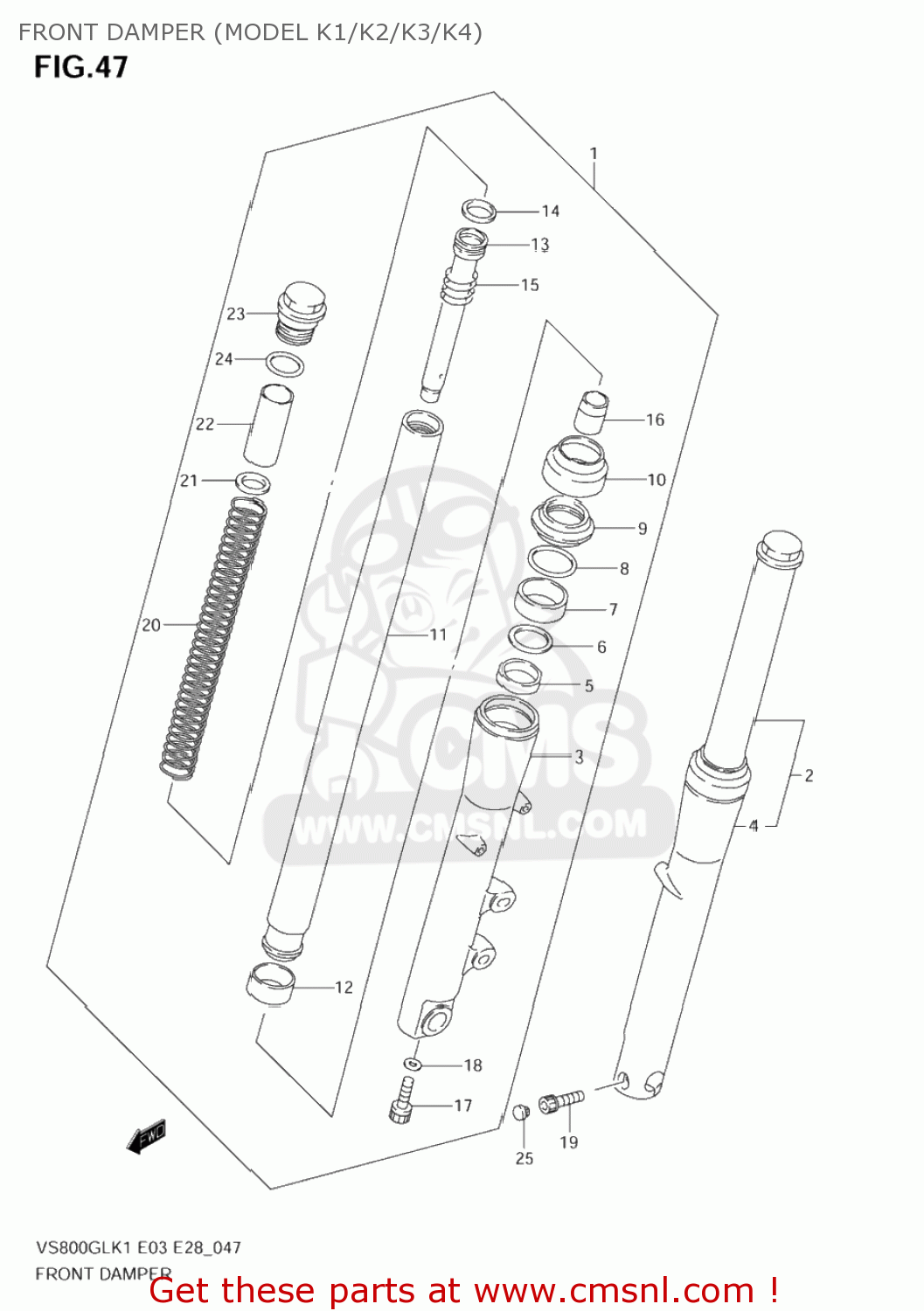

Front damper (model k1/k2/k3/k4) diagram VS800GL INTRUDER 2001 (K1) USA (E03)

FRONT DAMPER (MODEL K1/K2/K3/K4) VS800GL INTRUDER 2001 (K1) USA (E03)

FRONT DAMPER (MODEL K1/K2/K3/K4) VS800GL INTRUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5110339A70
ref: 1

DAMPER ASSY,FR FORK,R

€ 721.00

2

5110439A70
ref: 2

DAMPER ASSY,FR FORK,L

€ 721.00

3

5113139A70
ref: 3

TUBE,OUTER,R

€ 323.00

4

5114139A70
ref: 4

TUBE,OUTER,L

€ 323.00

5

5115239A40
ref: 5

BUSH,GUIDE

€ 24.00

6

5116839A00
ref: 6

SPACER,SEAL

€ 7.50

7

5115319D00
ref: 7

SEAL,OIL

€ 16.00

8

5115632B00
ref: 8

RING,OIL SEAL STOPPER

€ 6.50

9

5117319D00
ref: 9

SEAL,DUST

€ 17.50

10

5157238B00
ref: 10

COVER,CASE

€ 31.00

11

5111039A41
ref: 11

TUBE,INNER

€ 435.50

12

5112139A40
ref: 12

BUSH,SLIDE

€ 24.50

13

5114639A00
ref: 13

PIPE,SEAT

€ 66.00

14

5119632B00
ref: 14

RING,PISTON

€ 7.50

15

5117732B00
ref: 15

SPRING,REBOUND

€ 9.50

16

5119538B00
ref: 16

PIECE,OIL LOCK

€ 27.50

17

5114748130
ref: 17

BOLT(8X27)

€ 3.50

18

5114836011
ref: 18

GASKET (NAS)

€ 4.00

19

0713008357
ref: 19

BOLT

€ 4.50

20

5117139A00
ref: 20

SPRING

€ 73.00

21

5117232B00
ref: 21

WASHER,SPRING

€ 6.00

22

5117639A00
ref: 22

COLLAR,SPRING

€ 12.00

23

5135139A00
ref: 23

BOLT,FORK

€ 77.00

24

5111739A00
ref: 24

O RING

€ 4.00

25

0925006009
ref: 25

CAP(OD:14.5)

€ 3.50
