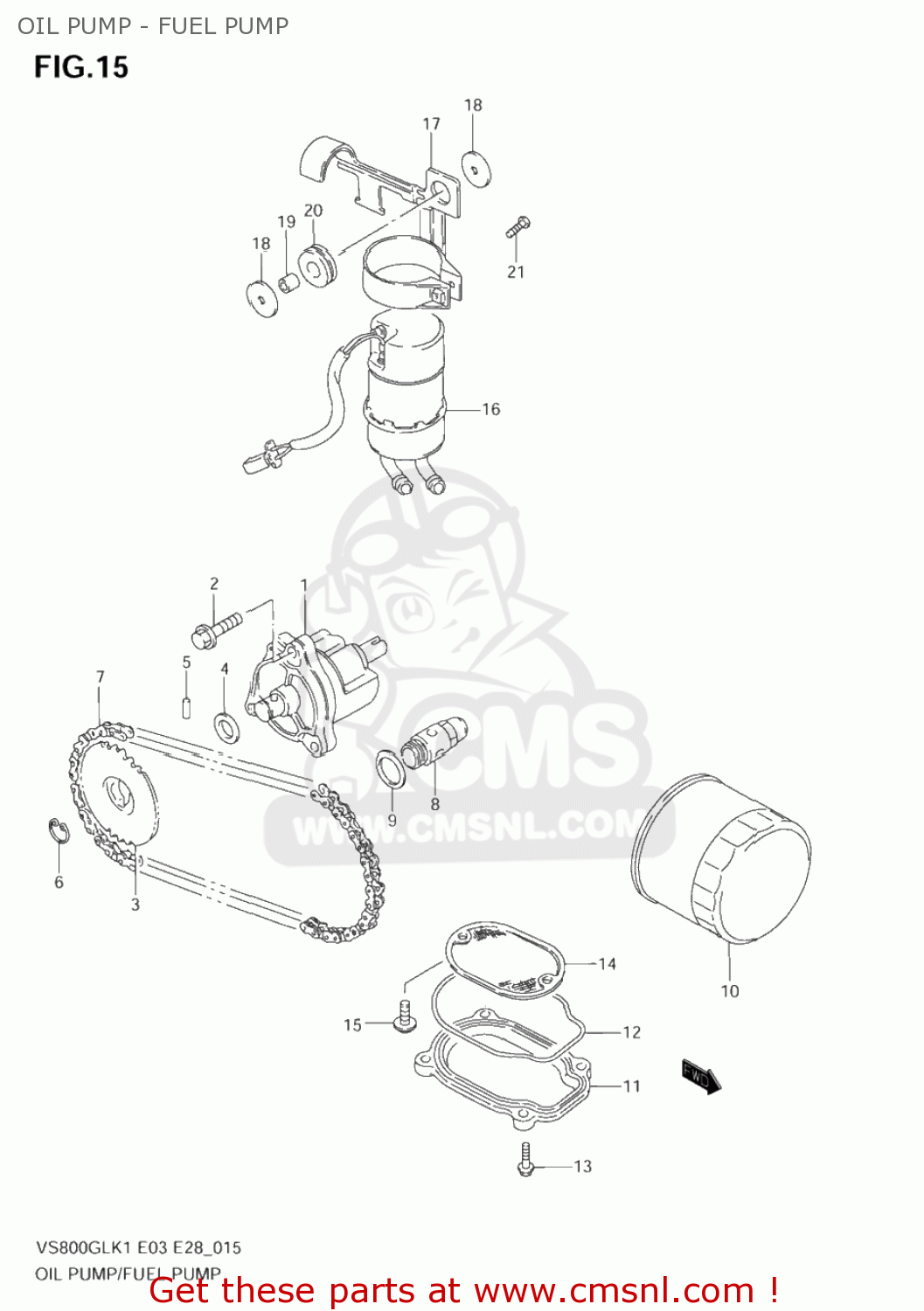

OIL PUMP - FUEL PUMP - VS800GL INTRUDER 2001 (K1) USA (E03)

ref

part #

description

quantity

1

1640038A01
ref: 1

PUMP ASSY,ENGINE OIL

€ 148.00

2

0155006253
ref: 2
01550-0625A

BOLT

€ 2.50

3

1633138A10
ref: 3

SPROCKET,OIL PUMP DRIVEN

€ 29.00

4

0918112158
ref: 4

SHIM(12X20X0.5)

€ 2.00

5

0926105006
ref: 5

PIN(5X18)

€ 1.50

6

0833131126
ref: 6
08331-3112A

CIRCLIP,12 MM

€ 2.00

7

1631038A00
ref: 7

CHAIN,OIL PUMP DRIVE

€ 19.50

8-1

1644024A01
ref: 8-1

VALVE ASSY,OIL RELIEF

€ 52.00

8-2

1644017C20
ref: 8-2

VALVE ASSY,OIL RELIEF

€ 39.00

9

0916816002
ref: 9

GASKET(16X22X2) (NAS)

€ 2.00

10-1

1651034E00
ref: 10-1
16510-07J00

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

10-2

1651003G00X07
ref: 10-2
16510-07J00

FILTER ASSY,EN

€ 12.50

11

1652338A00
ref: 11

CAP,OIL STRAINER

€ 19.50

12

1652838A00
ref: 12

O RING,OIL STRAINER CAP

€ 8.00

13

0155006203
ref: 13
01550-0620A

BOLT

€ 2.50

14

1652038A00
ref: 14

STRAINER,ENGINE OIL

€ 7.50

15

0211275123
ref: 15
02112-7512A

SCREW

€ 2.50

16

1510038A10
ref: 16

PUMP ASSY,FUEL

€ 364.50

17

1511038A10
ref: 17

BRACKET,FUEL PUMP

€ 13.00

18-1

0916006134
ref: 18-1

WASHER(6.5X24X1.6)

€ 1.50

18-2

0916906016
ref: 18-2

WASHER

€ 1.50

19

0918006082
ref: 19

SPACER(6.5X10.5X6.5)

€ 2.50

20

0932010014
ref: 20

CUSHION

€ 4.00

21

0214204203
ref: 21
02142-0420B

SCREW

€ 2.00

OIL PUMP - FUEL PUMP

all assemblies
