FOOTREST
VS800GL INTRUDER 2001 (K1) USA (E03)

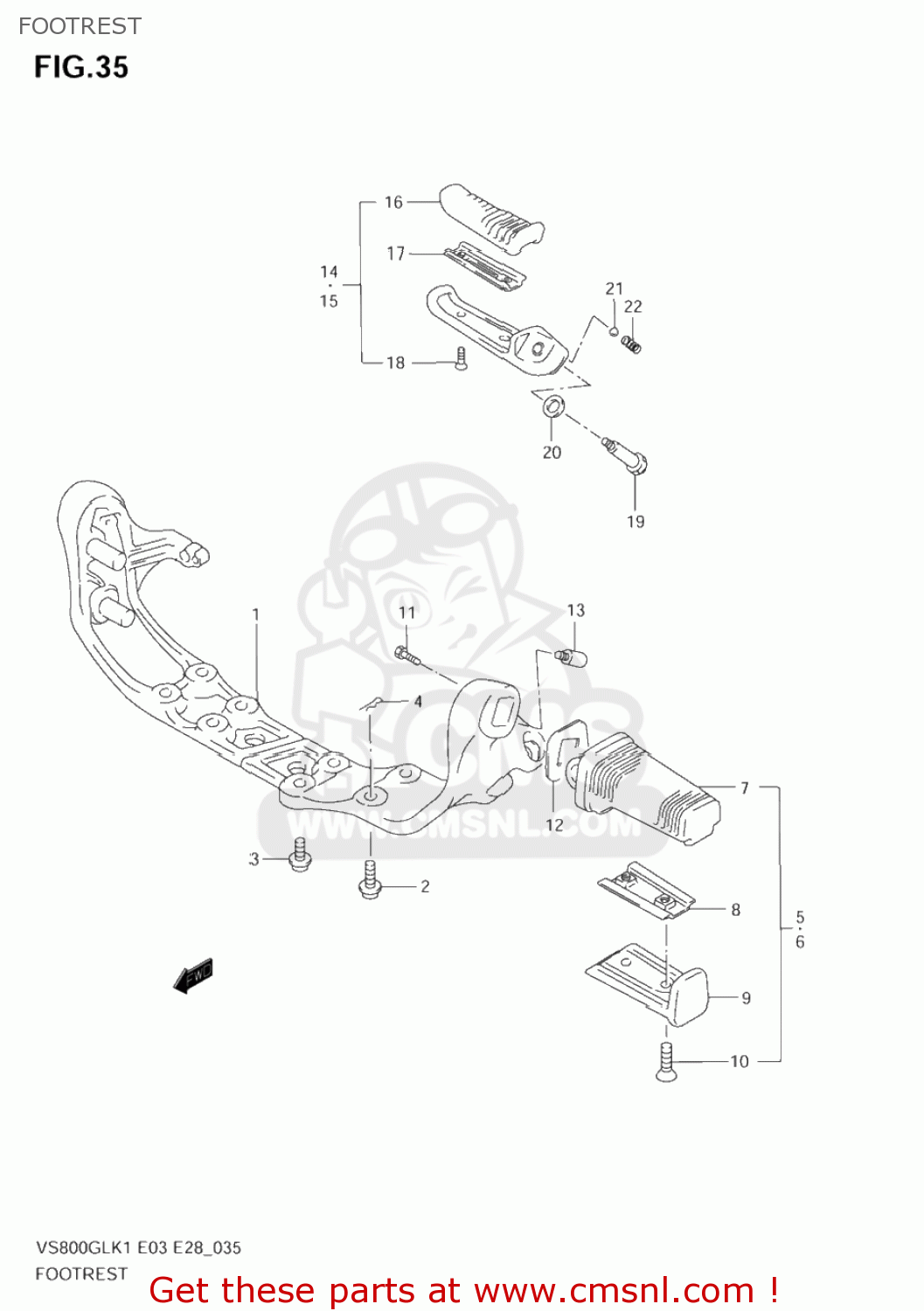

Footrest diagram VS800GL INTRUDER 2001 (K1) USA (E03)
FOOTREST VS800GL INTRUDER 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351038E01
ref: 1
BRACKET,FR FOOTREST
€ 968.00
2
0910608064
ref: 2
BOLT(8X25)
€ 4.50
3
0712008203
ref: 3
07120-0820A
BOLT
€ 3.00
4
0938508005
ref: 4
SNAP
€ 2.00
5
4350138B11
ref: 5
FOOTREST ASSY,FR,R
€ 97.00
6
4350238B11
ref: 6
FOOTREST ASSY,FR,L
€ 97.00
7
4355138B00
ref: 7
RUBBER,FR FOOTREST
€ 12.50
8
4358038B10
ref: 8
PLATE,RUBBER STOPPER
€ 8.50
9
4358538B11
ref: 9
COVER,FR FOOTREST
€ 45.50
10
0912705018
ref: 10
SCREW(5X20)
€ 2.50
11
0211235123
ref: 11
02112-3512A
SCREW
€ 1.50
12
4354638B01
ref: 12
WASHER,FR FOOTREST
€ 5.00
13-1
4364138B00
ref: 13-1
09106-06101
BOLT,FRONT FOOTREST
€ 4.50
13-2
0910606101
ref: 13-2
BOLT(6X8)
€ 4.50
14
4360038E00
ref: 14
FOOTREST ASSY,PILLION,R
€ 55.00
15
4370038E00
ref: 15
FOOTREST ASSY,PILLION,L
€ 55.00
16
4361238A00
ref: 16
RUBBER,PILLION FOOTREST
€ 12.00
17
4363238A00
ref: 17
PLATE,RUBBER STOPPER
€ 4.00
18
0912705017
ref: 18
SCREW(5X16)
€ 2.00
19
0911106050
ref: 19
BOLT(6X34.5)
€ 5.00
20
0822108164
ref: 20
SHIM
€ 1.50
21
0611107004
ref: 21
BALL
€ 1.50
22
0944005005
ref: 22
SPRING
€ 1.50
