FUEL TANK (MODEL K4)

VS800GL INTRUDER 2001 (K1) USA (E03)

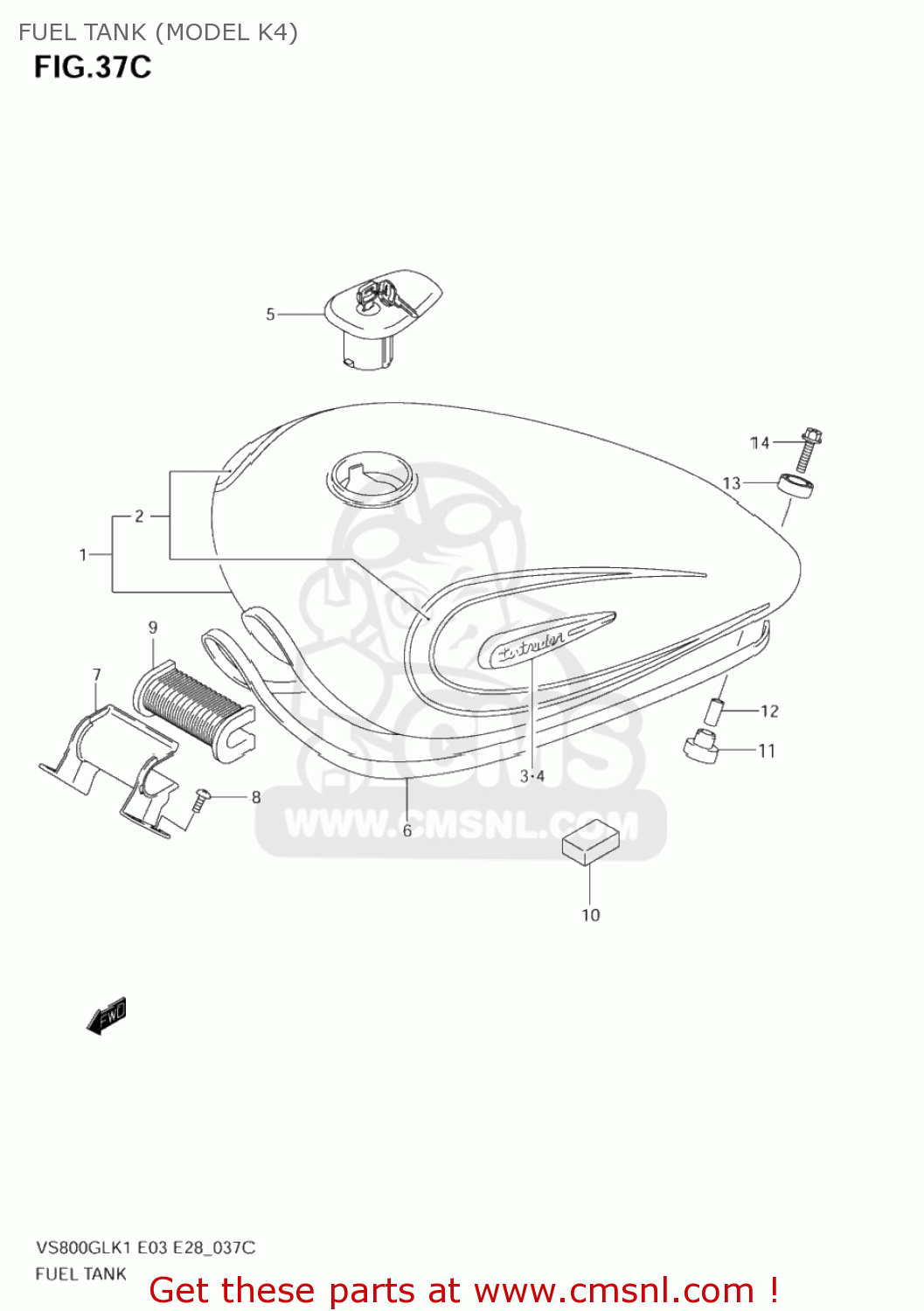

Fuel tank (model k4) diagram VS800GL INTRUDER 2001 (K1) USA (E03)

FUEL TANK (MODEL K4) VS800GL INTRUDER 2001 (K1) USA (E03)

FUEL TANK (MODEL K4) VS800GL INTRUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410038EK0YAY
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 0.00

1-2

4410038EK0YD8
ref: 1-2

TANK ASSY,FUEL(SILVER)

€ 0.00

1-3

4410038EL0YAY
ref: 1-3

TANK ASSY,FUEL(BLACK)

€ 0.00

1-4

4410038EL0YD8
ref: 1-4

TANK ASSY,FUEL(SILVER)

€ 0.00

2-1

6811038E70ABB
ref: 2-1

TAPE SET,FUEL TANK

€ 0.00

2-2

6811038E70ABA
ref: 2-2

TAPE SET,FUEL TANK

€ 0.00

3

6811138E00
ref: 3

EMBLEM,FUEL TANK,R

€ 34.00

4

6812138E00
ref: 4

EMBLEM,FUEL TANK,L

€ 33.50

5-1

4420038820
ref: 5-1

CAP SET,FUEL TANK

€ 107.50

5-2

4420038850
ref: 5-2

CAP SET,FUEL TANK

€ 135.50

5-3

4420038860
ref: 5-3

CAP SET,FUEL TANK

€ 135.50

5-4

4420038870
ref: 5-4

ENGRAVED GAS CAP SET,G

€ 136.50

6

6824104X5000B
ref: 6

MOLDING

€ 23.00

7

4425038A01019
ref: 7

BRACKET,FUEL TANK FR

€ 56.00

8

0211276163
ref: 8
02112-7616A

SCREW

€ 2.00

9

4451138A01
ref: 9

CUSHION,FUEL TANK FR

€ 10.50

10

4451238B00
ref: 10
56314-48B10

CUSHION

€ 6.00

11

0932010020
ref: 11

CUSHION

€ 4.00

12

0918006273
ref: 12

SPACER(6.5X9X21.5)

€ 5.50

13

0932014013
ref: 13

CUSHION

€ 3.00

14

0913606095
ref: 14

SCREW(6X35)

€ 0.00
