ELECTRICAL (MODEL K5)

VS800GL INTRUDER 2001 (K1) USA (E03)

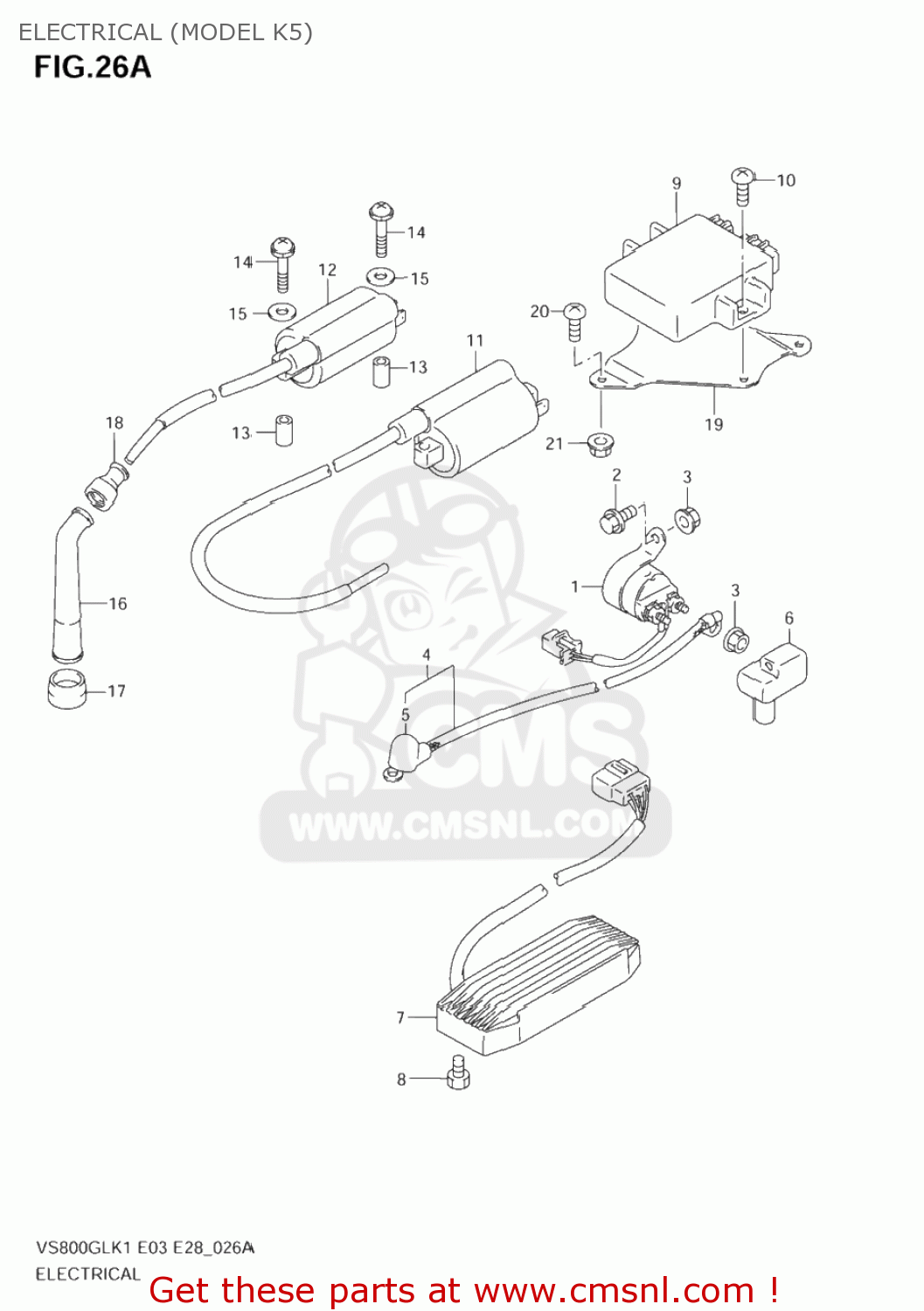

Electrical (model k5) diagram VS800GL INTRUDER 2001 (K1) USA (E03)

ELECTRICAL (MODEL K5) VS800GL INTRUDER 2001 (K1) USA (E03)

ELECTRICAL (MODEL K5) VS800GL INTRUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3180015501
ref: 1

RELAY ASSY,STARTING MOTOR

€ 78.00

2

0155006103
ref: 2
01550-0610A

BOLT

€ 2.50

3

0836135068
ref: 3
08361-3506A

NUT

€ 2.00

4

3385038A00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 17.50

5

3186148B10
ref: 5

CAP,STARTER MOTOR LEAD

€ 4.50

6

3186138A00
ref: 6

CAP,STARTER RELAY

€ 7.50

7

3280012E01
ref: 7

RECTIFIER ASSY

€ 368.00

8

0150006103
ref: 8
01500-0610B

BOLT

€ 2.00

9

3290038A31
ref: 9

IGNITOR ASSY

€ 633.50

10

0214206123
ref: 10
02142-0612A

SCREW 6X12

€ 2.00

11

3341038A20
ref: 11

COIL ASSY,IGNITION RR

€ 100.50

12

3342038A20
ref: 12

COIL ASSY,IGNITION FR

€ 0.00

13

0918006144
ref: 13

SPACER(6.4X10X19)

€ 5.00

14

0913705008
ref: 14

SCREW(5X38)

€ 0.00

15-1

0832201053
ref: 15-1
08322-0105A

WASHER

€ 2.50

15-2

0832201053
ref: 15-2
08322-0105A

WASHER

€ 2.50

16

3351011410
ref: 16

CAP,SPARK PLUG

€ 24.50

17

3354147D00
ref: 17

SEAL,SPARK PLUG

€ 7.00

18

3354238B00
ref: 18

SEAL,HIGH TENSION CORD

€ 4.50

19

3291038A10
ref: 19

PLATE,IGNITOR FITING

€ 7.00

20

0211236123
ref: 20
02112-3612A

BOLT

€ 2.00

21

0831620063
ref: 21
08316-2006A

NUT

€ 2.00
