FUEL COCK

VS800GL INTRUDER 2001 (K1) USA (E03)

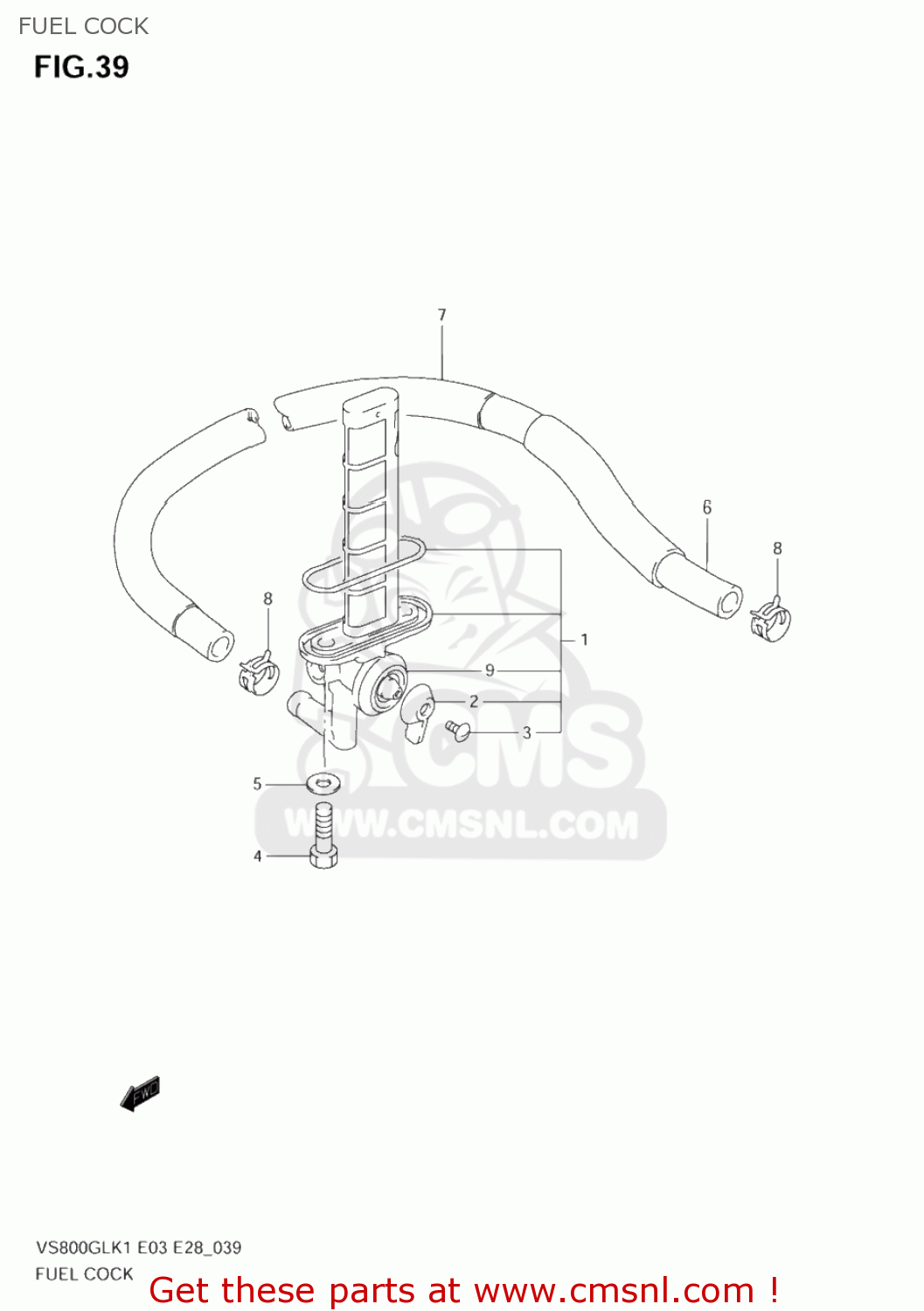

Fuel cock diagram VS800GL INTRUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

4430038A72
ref: 1

COCK ASSY,FUEL

€ 174.00

4430638A00
ref: 2

LEVER,FUEL COCK

€ 23.50

4430738A00
ref: 3

SCREW,COCK LEVER

€ 18.00

0912806057
ref: 4

BOLT(6X20)

€ 2.00

0916806026
ref: 5

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

4432038A02
ref: 6
44320-38AR0

HOSE,FUEL PUMP & COCK

€ 11.00

4431138A01
ref: 7

TUBE,FUEL HOSE

€ 13.50

0940111407
ref: 8
09401-11415

CLIP

€ 2.50

4435312C01
ref: 9

O RING,LEVER

€ 7.50
