WIRING HARNESS (MODEL K5)

VS800GL INTRUDER 2001 (K1) USA (E03)

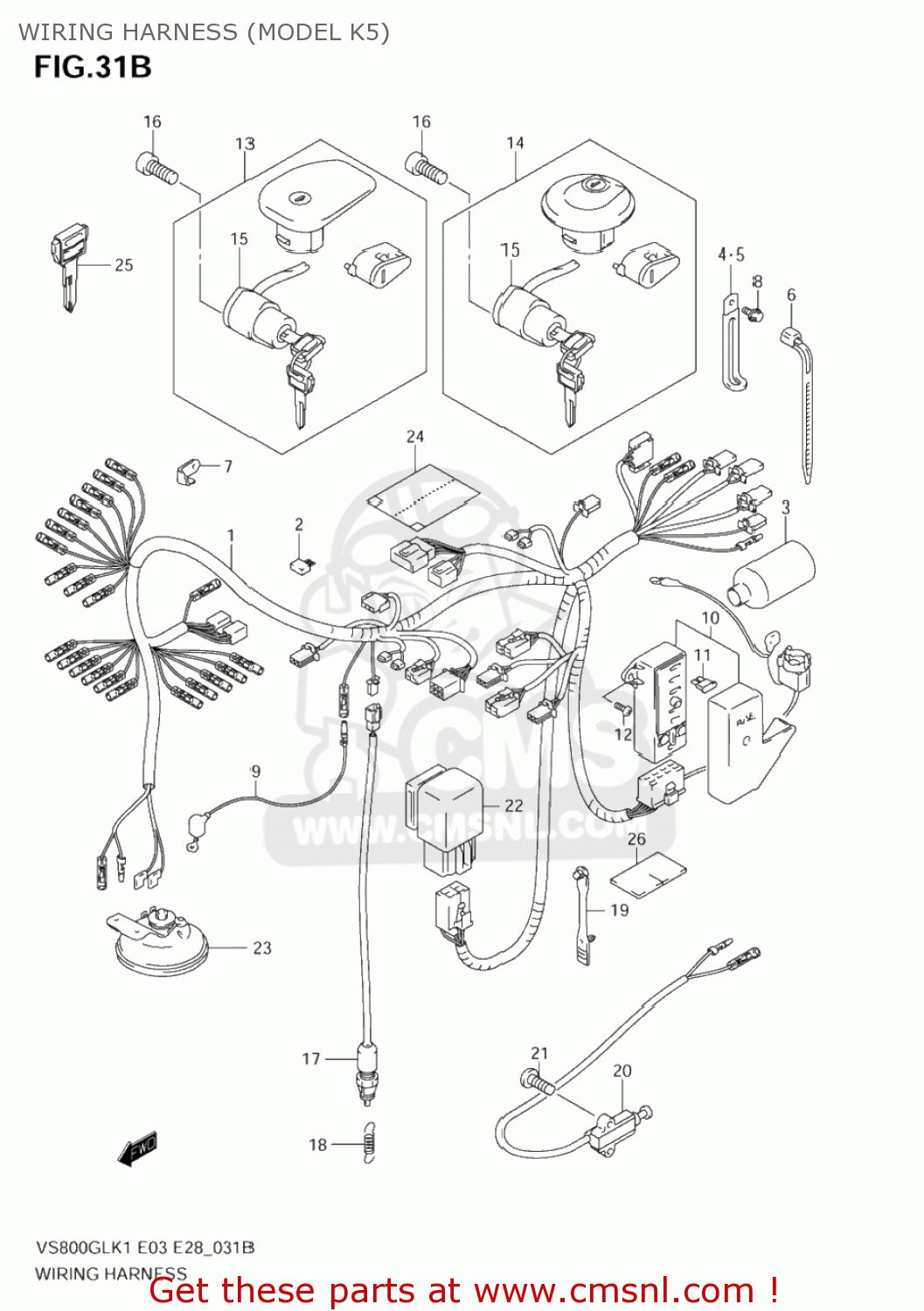

Wiring harness (model k5) diagram VS800GL INTRUDER 2001 (K1) USA (E03)

WIRING HARNESS (MODEL K5) VS800GL INTRUDER 2001 (K1) USA (E03)
WIRING HARNESS (MODEL K5) VS800GL INTRUDER 2001 (K1) USA (E03)
WIRING HARNESS (MODEL K5) VS800GL INTRUDER 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661039AK0
ref: 1
HARNESS,WIRING
€ 0.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
3661830000
ref: 3
BOOT,WIRING HARNESS
3661830000
€ 8.50
4
0940406431
ref: 4
09404-06432
CLAMP(L:65)
0940406431
€ 2.50
5
0940406429
ref: 5
CLAMP(L:45)
€ 2.50
6-1
0940714403
ref: 6-1
CLAMP(L:125)
0940714403
€ 2.50
6-2
0940718402
ref: 6-2
CLAMP(L:165)
0940718402
€ 2.50
7
3668738A00
ref: 7
PLATE,COUPLER HOLDER
€ 2.00
8
0155006103
ref: 8
01550-0610A
BOLT
0155006103
€ 2.50
9
3685117E00
ref: 9
WIRE,WATER TEMP GAUGE LEAD
3685117E00
€ 7.50
10
3674039A00
ref: 10
BOX ASSY,FUSE
3674039A00
€ 93.50
11-1
0948110101
ref: 11-1
FUSE(10A)
0948110101
€ 2.50
11-2
0948125103
ref: 11-2
FUSE(25A)
0948125103
€ 2.50
12
0214206163
ref: 12
02142-0616A
SCREW
0214206163
€ 2.50
13
3700038870
ref: 13
LOCK SET
€ 0.00
14
3700038880
ref: 14
LOCK SET
€ 0.00
15
3711038A04
ref: 15
SWITCH ASSY,IGNITION
3711038A04
€ 74.50
16
0713005163
ref: 16
07130-0516A
BOLT
€ 2.00
17
3774045D00
ref: 17
37740-31D00
SWITCH ASSY,STOP LAMP
3774045D00
€ 20.50
18
0944306046
ref: 18
SPRING
0944306046
€ 3.50
19
0940705403
ref: 19
CLAMP,L:88
0940705403
€ 1.50
20
3784039A22
ref: 20
SWITCH ASSY,SIDE STAND
3784039A22
€ 87.50
21
0211276203
ref: 21
02112-7620B
SCREW
€ 2.50
22
3874024X50
ref: 22
RELAY ASSY
3874024X50
€ 37.50
23
3850039A00
ref: 23
HORN ASSY
3850039A00
€ 126.00
24
3661815D20
ref: 24
COVER,WIRING HARNESS
3661815D20
€ 12.00
25-1
3714603A00
ref: 25-1
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
25-2
3714603A10
ref: 25-2
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
25-3
3714603A20
ref: 25-3
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
25-4
3714603A30
ref: 25-4
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
26
3692002200
ref: 26
COVER,HARNESS
3692002200
€ 3.00
26
3692002200
ref: 26
COVER,HARNESS
3692002200
€ 3.00
