FRONT DAMPER (MODEL K5)

VS800GL INTRUDER 2001 (K1) USA (E03)

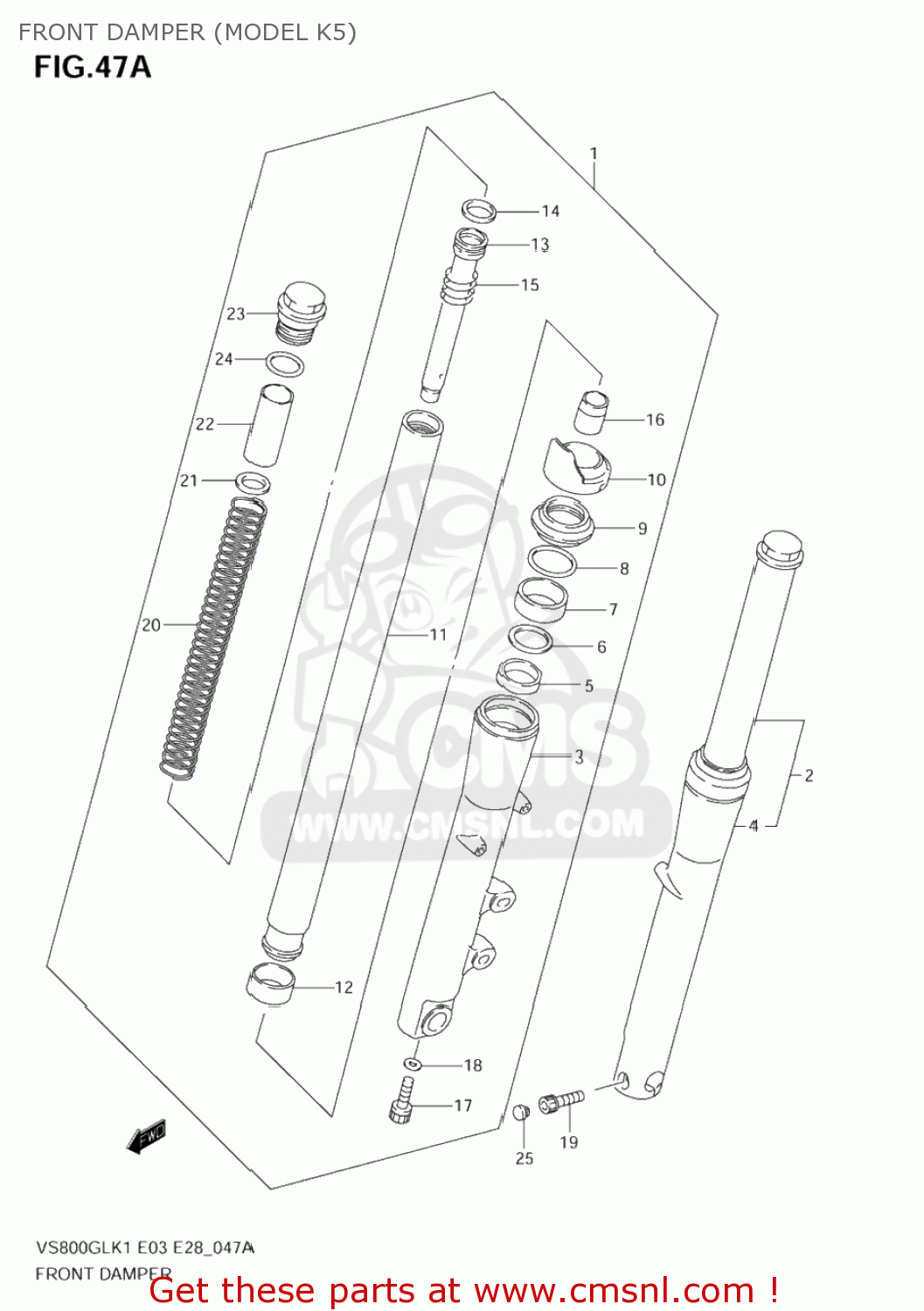

Front damper (model k5) diagram VS800GL INTRUDER 2001 (K1) USA (E03)

FRONT DAMPER (MODEL K5) VS800GL INTRUDER 2001 (K1) USA (E03)

FRONT DAMPER (MODEL K5) VS800GL INTRUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5110339AD0
ref: 1

DAMPER ASSY,FR FORK,R

€ 0.00

2

5110439AD0
ref: 2

DAMPER ASSY,FR FORK,L

€ 0.00

3

5113139A70
ref: 3

TUBE,OUTER,R

€ 323.00

4

5114139A70
ref: 4

TUBE,OUTER,L

€ 323.00

5

5115239A40
ref: 5

BUSH,GUIDE

€ 24.00

6

5116839A00
ref: 6

SPACER,SEAL

€ 7.50

7

5115319D00
ref: 7

SEAL,OIL

€ 16.00

8

5115632B00
ref: 8

RING,OIL SEAL STOPPER

€ 6.50

9

5117319D00
ref: 9

SEAL,DUST

€ 17.50

10-1

5153038B70
ref: 10-1

COVER,UPR,R

€ 63.00

10-2

5154038B70
ref: 10-2

COVER,UPR,L

€ 63.00

11

5111039A41
ref: 11

TUBE,INNER

€ 435.50

12

5112139A40
ref: 12

BUSH,SLIDE

€ 24.50

13

5114639A00
ref: 13

PIPE,SEAT

€ 66.00

14

5119632B00
ref: 14

RING,PISTON

€ 7.50

15

5117732B00
ref: 15

SPRING,REBOUND

€ 9.50

16

5119538B00
ref: 16

PIECE,OIL LOCK

€ 27.50

17

5114748130
ref: 17

BOLT(8X27)

€ 3.50

18

5114836011
ref: 18

GASKET (NAS)

€ 4.00

19

5117139A00
ref: 19

SPRING

€ 73.00

20

5117232B00
ref: 20

WASHER,SPRING

€ 6.00

21

5117639A00
ref: 21

COLLAR,SPRING

€ 12.00

22

5135139A00
ref: 22

BOLT,FORK

€ 77.00

23

5111739A00
ref: 23

O RING

€ 4.00

24

0713008357
ref: 24

BOLT

€ 4.50

25

0925006009
ref: 25

CAP(OD:14.5)

€ 3.50
