2ND AIR
VZ800 MARAUDER 1998 (W) USA (E03)

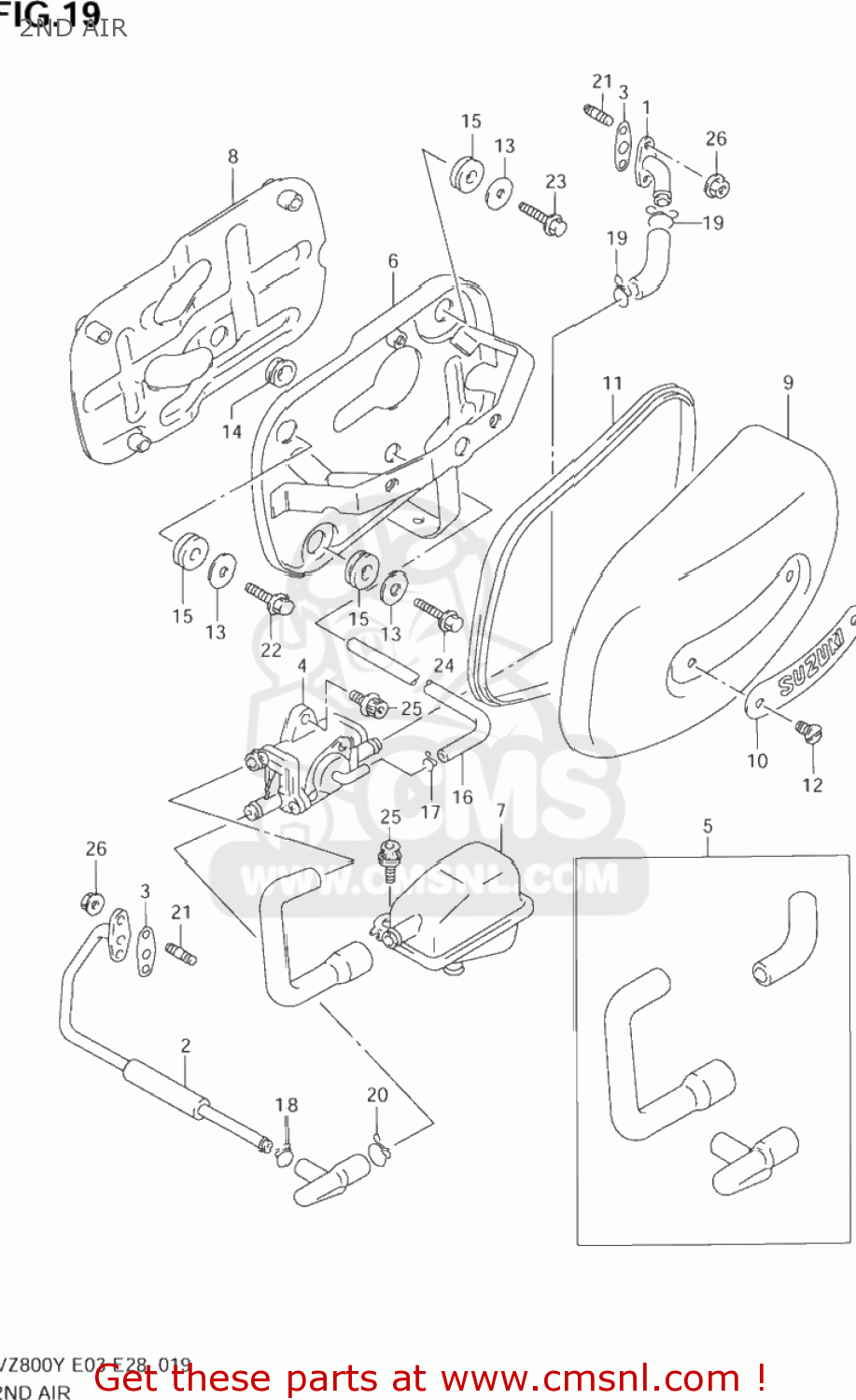

2nd air diagram VZ800 MARAUDER 1998 (W) USA (E03)
2ND AIR VZ800 MARAUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1841048E00
ref: 1
PIPE,2ND AIR FR
€ 0.00
2
1842048E00
ref: 2
PIPE,2ND AIR RR
€ 0.00
3-1
1844145C00
ref: 3-1
18441-45C01
GASKET,SECOND AIR PIPE (N (NAS)
€ 6.00
3-2
1844145C01
ref: 3-2
GASKET,2ND AIR PIPE (NAS)
€ 6.00
4
1845048E00
ref: 4
VALVE ASSY,2ND AIR
€ 0.00
5
1841048810
ref: 5
HOSE SET,2ND AIR
€ 0.00
6
1861048E00
ref: 6
BRACKET,2ND AIR SPRT
€ 36.50
7
1870048E00
ref: 7
CLEANER,2ND AIR
€ 30.50
8
1874048E00
ref: 8
PLATE,2ND AIR HEAT GUARD
€ 25.50
9
1878048E00
ref: 9
COVER ASSY,2ND AIR
€ 116.50
10
1878248E00
ref: 10
WASHER,2ND AIR COV
€ 9.50
11
1878848E00
ref: 11
CUSHION
€ 11.50
12
0913906091
ref: 12
SCREW(6X12)
€ 4.00
13-1
0916006076
ref: 13-1
09160-06114
WASHER
€ 2.00
13-2
0916006140
ref: 13-2
09160-06114
WASHER
€ 2.00
14
0932008013
ref: 14
CUSHION
€ 4.00
15
0932010014
ref: 15
CUSHION
€ 4.00
16-1
0935940701600
ref: 16-1
HOSE(4X7X600)
€ 9.00
16-2
0935940701600
ref: 16-2
HOSE(4X7X600)
€ 9.00
16-2
0935940701600
ref: 16-2
HOSE(4X7X600)
€ 9.00
17
0940106101
ref: 17
CLIP
€ 2.50
18
0940111101
ref: 18
CLIP
€ 2.50
19
0940115401
ref: 19
CLIP
€ 2.50
20
0940116401
ref: 20
CLIP
€ 3.00
21
0142106163
ref: 21
01421-0616A
STUD BOLT
€ 2.00
22
0150006307
ref: 22
BOLT
€ 2.50
23
0150006403
ref: 23
01500-0640B
BOLT
€ 2.00
24
0156006353
ref: 24
BOLT
€ 3.00
25
0712006163
ref: 25
07120-0616B
BOLT MAGNETO S
€ 2.50
26
0831610063
ref: 26
08316-1006B
NUT
€ 2.50
