HEADLAMP HOUSING
VZ800 MARAUDER 1998 (W) USA (E03)

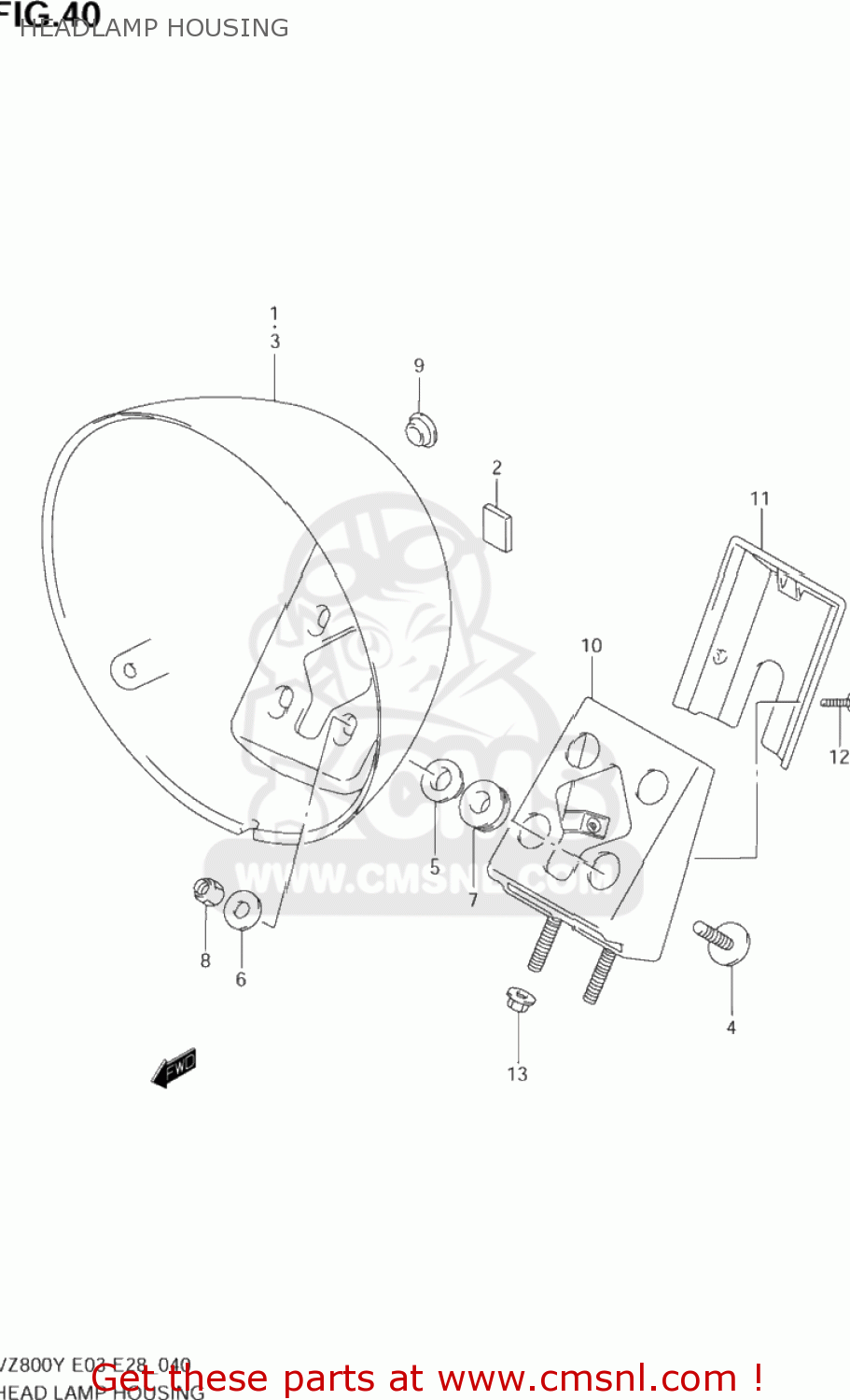

Headlamp housing diagram VZ800 MARAUDER 1998 (W) USA (E03)
HEADLAMP HOUSING VZ800 MARAUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5181048E10
ref: 1
51811-48E02
HOUSING,HEADLAMP
€ 99.50
2
5181248E00
ref: 2
CUSHION,HEADLAMP HOUSING
€ 4.00
3
5181148E02
ref: 3
HOUSING,HEADLAMP
€ 99.50
4
0911606025
ref: 4
BOLT(6X25)
€ 2.50
5
0916906063
ref: 5
WASHER
€ 3.50
6-1
0916006027
ref: 6-1
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
6-2
0916006138
ref: 6-2
WASHER(6.5X22X2.3)
€ 2.50
7
0932008051
ref: 7
09320-08066
CUSHION
€ 7.50
8
0831921063
ref: 8
08319-2106B
NUT
€ 2.50
9-1
5181648E00
ref: 9-1
CAP,HEADLAMP HOUSING
€ 2.00
9-2
5181648E01
ref: 9-2
CAP,HEADLAMP HOUSING
€ 20.50
10-1
5185048E00
ref: 10-1
51850-48E01
BRACKET,HEADLAMP HOUSING
€ 51.50
10-2
5185048E01
ref: 10-2
BRACKET,HEADLAMP HOUSING
€ 51.50
11
5181548E00
ref: 11
COVER,HEADLAMP HSG BRACKET
€ 20.00
11
5181548E00
ref: 11
COVER,HEADLAMP HSG BRACKET
€ 20.00
12
0214204107
ref: 12
SCREW
€ 1.50
13
0831931063
ref: 13
08319-3106A
NUT
€ 2.50
