REAR AIR CLEANER
VZ800 MARAUDER 1998 (W) USA (E03)

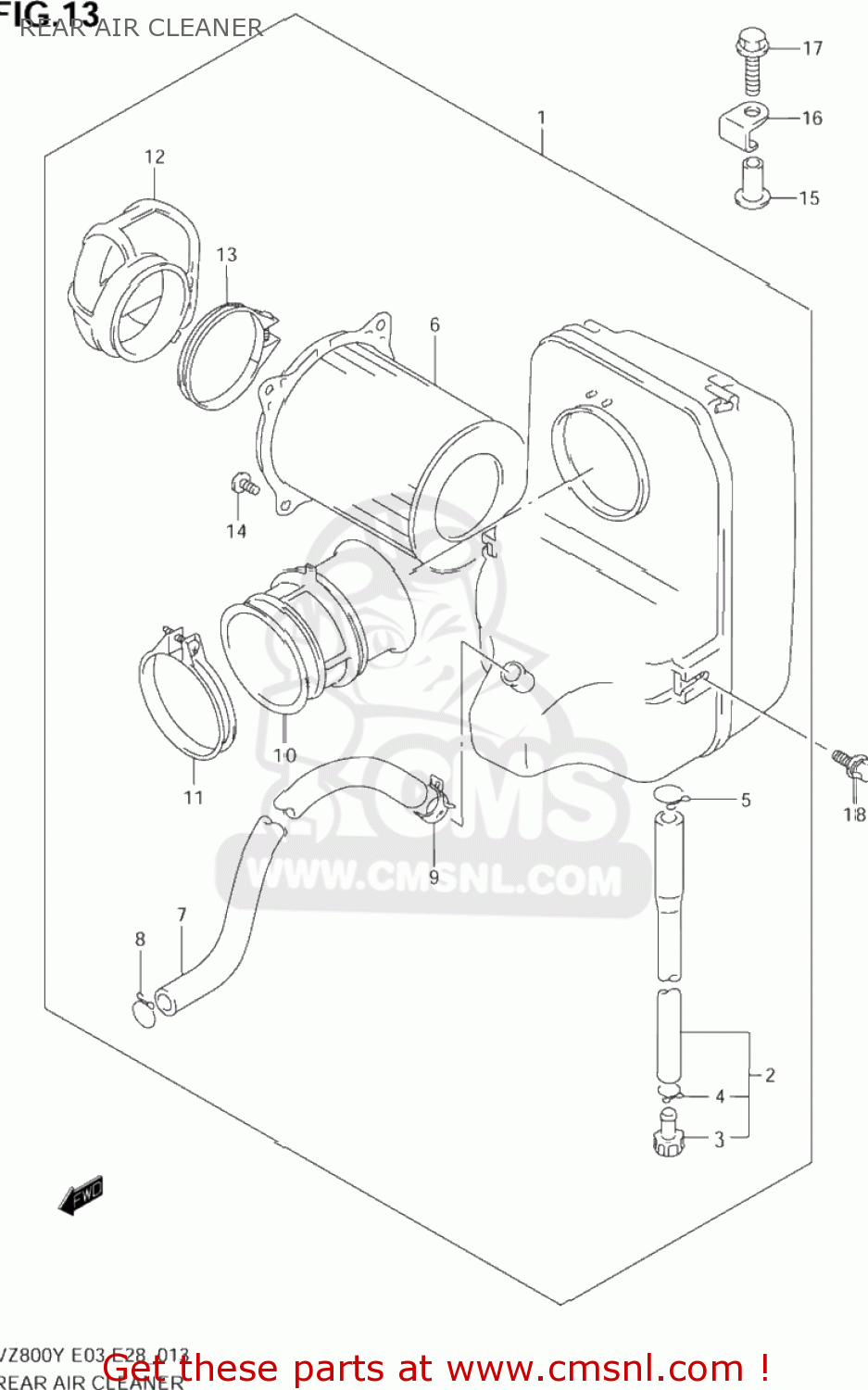

Rear air cleaner diagram VZ800 MARAUDER 1998 (W) USA (E03)
REAR AIR CLEANER VZ800 MARAUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1380048E00
ref: 1
CLEANER ASSY,AIR RR
€ 211.00
2
1387011308
ref: 2
TUBE,DRAIN
€ 14.00
3
1387738A00
ref: 3
STOPPER,DRAIN
€ 3.50
4
0940111101
ref: 4
CLIP
€ 2.50
5
0940113409
ref: 5
CLIP
€ 2.50
6
1378048E00
ref: 6
FILTER ASSY
€ 36.00
7-1
1385148E00
ref: 7-1
13851-48E01
TUBE,BREATHER
€ 12.50
7-2
1385148E01
ref: 7-2
TUBE,BREATHER
€ 12.50
8-1
0940114301
ref: 8-1
CLIP
€ 2.00
8-1
0940114301
ref: 8-1
CLIP
€ 2.00
8-2
0940116301
ref: 8-2
CLAMP
€ 2.50
8-2
0940116301
ref: 8-2
CLAMP
€ 2.50
8-3
0940115101
ref: 8-3
CLIP
€ 2.00
9-1
0940114402
ref: 9-1
09401-14404
CLIP
€ 2.00
9-1
0940114402
ref: 9-1
09401-14404
CLIP
€ 2.00
9-2
0940116402
ref: 9-2
09401-16403
CLIP
€ 2.00
9-2
0940116402
ref: 9-2
09401-16403
CLIP
€ 2.00
9-3
0940116403
ref: 9-3
CLIP
€ 2.00
10
1388148E00
ref: 10
TUBE,OUTLET
€ 20.00
11
0940258208
ref: 11
CLAMP
€ 5.50
12
1389145C30
ref: 12
TUBE,INLET
€ 23.00
13
0940256208
ref: 13
09402-56901
CLAMP
€ 3.50
14
0214205107
ref: 14
SCREW
€ 2.50
15
1391248E00
ref: 15
SPACER,AIR CLEANER RR
€ 11.50
16
1391348E00
ref: 16
PLATE,AIR CLEANER RR
€ 4.00
17
0155006303
ref: 17
01550-0630A
BOLT
€ 2.50
18
0155006123
ref: 18
01550-0612A
BOLT
€ 2.50
