ELECTRICAL

VZ800 MARAUDER 1998 (W) USA (E03)

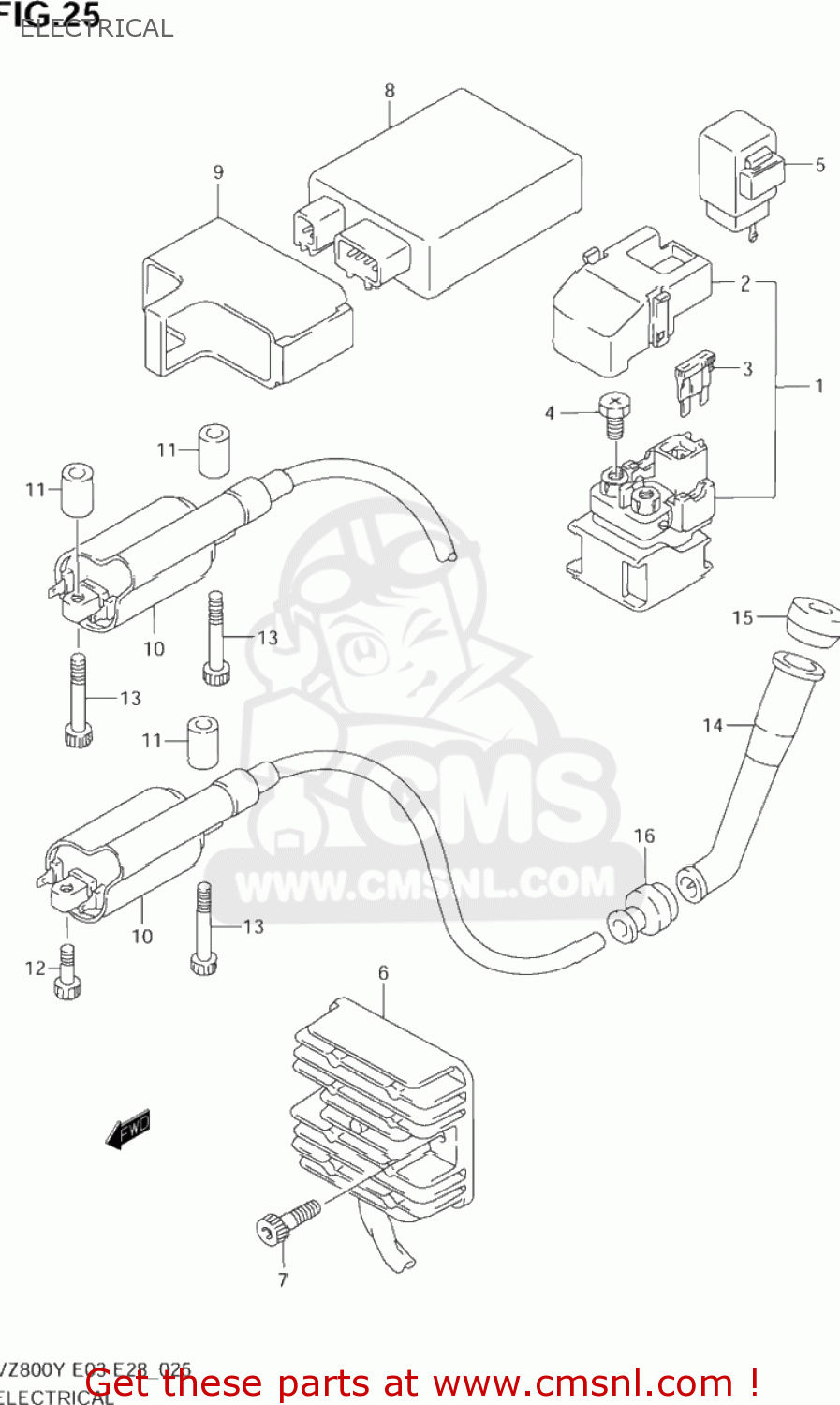

Electrical diagram VZ800 MARAUDER 1998 (W) USA (E03)

ELECTRICAL VZ800 MARAUDER 1998 (W) USA (E03)

ELECTRICAL VZ800 MARAUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3180021E20
ref: 1

RELAY ASSY,STARTING MOTOR

€ 69.00

2

3186121E20
ref: 2
31861-47E00

COVER,RELAY ASSEMBLY

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3189048E00
ref: 5

CONTROL UNIT,STG MOT RLY

€ 54.50

6

3280045C01
ref: 6

RECTIFIER ASSY

€ 268.50

7

0713006163
ref: 7
07130-0616B

BOLT,OIL FILLE

€ 3.00

8

3290048E30
ref: 8

IGNITOR ASSY

€ 765.00

9

3298040C01
ref: 9

CUSHION,IGNITOR

€ 9.50

10

3341048E00
ref: 10

COIL ASSY,IGNITION

€ 148.50

11

0918006198
ref: 11

SPACER(6.2X12X16)

€ 3.50

12

0713005163
ref: 12
07130-0516A

BOLT

€ 2.00

13

0713005353
ref: 13
07130-0535B

BOLT

€ 2.00

14

3351011410
ref: 14

CAP,SPARK PLUG

€ 24.50

15

3354124510
ref: 15
33541-47D00

SEAL,SPARK PLUG CAP

€ 7.00

16

3354238B00
ref: 16

SEAL,HIGH TENSION CORD

€ 4.50
