HANDLE LEVER
VZ800 MARAUDER 1998 (W) USA (E03)

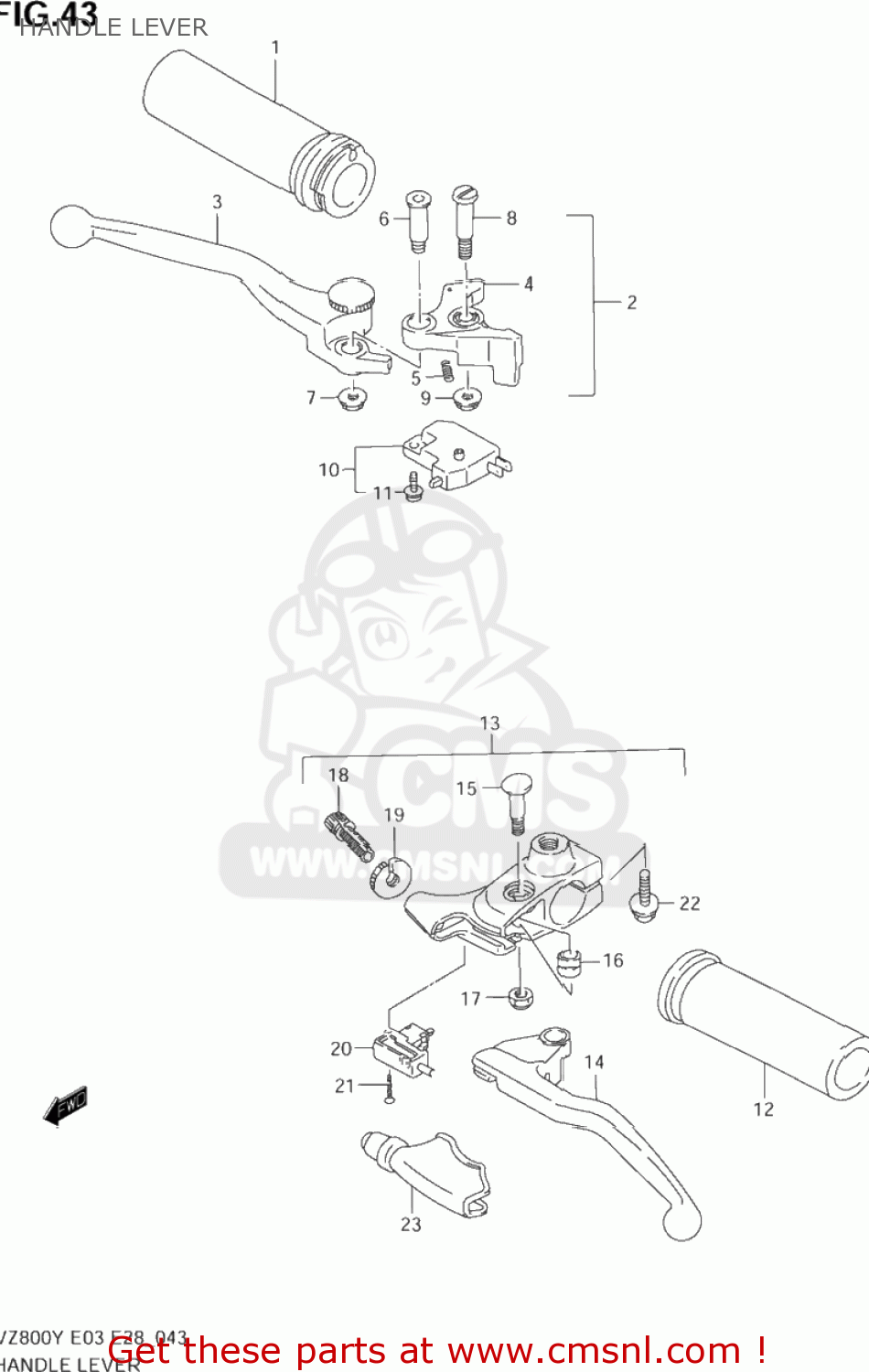

Handle lever diagram VZ800 MARAUDER 1998 (W) USA (E03)
HANDLE LEVER VZ800 MARAUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711026D00
ref: 1
GRIP,THROTTLE
€ 45.00
2-1
5730048E00
ref: 2-1
57300-32C10
LEVER ASSY,BRAKE
€ 88.00
2-2
5730032C10
ref: 2-2
LEVER ASSY,BRAKE
€ 88.00
3
5742032C00
ref: 3
LEVER,ADJUST
€ 39.50
4-1
5743032C00
ref: 4-1
57430-32C10
KNOCKER
€ 45.50
4-2
5743032C10
ref: 4-2
KNOCKER
€ 45.50
5
5743832C00
ref: 5
SPRING
€ 4.00
6
5743732C01
ref: 6
BOLT,LEVER
€ 6.50
7
0831931063
ref: 7
08319-3106A
NUT
€ 2.50
8-1
5743148E00
ref: 8-1
BOLT,LEVER PIVOT
€ 8.00
8-2
5743117C00
ref: 8-2
BOLT,LEVER PIVOT
€ 8.00
9
0831610067
ref: 9
NUT
€ 2.00
10
5746017C00
ref: 10
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
11
5746517C00
ref: 11
SCREW
€ 1.50
12
5721026D00
ref: 12
GRIP,L
€ 21.50
13
5750024B01
ref: 13
LEVER ASSY,CLUTCH
€ 87.00
14
5762024B01
ref: 14
LEVER,CLUTCH
€ 75.50
15
5753124B00
ref: 15
BOLT,CLUTCH LEVER
€ 6.50
16
5762324B00
ref: 16
SPACER,CLUTCH LEVER PIVOT
€ 6.50
17
0831921068
ref: 17
08319-2106A
NUT 6MM
€ 2.00
18
5744145C00
ref: 18
ADJUSTER,WIRE
€ 8.50
19
5744245C00
ref: 19
NUT,LOCK
€ 7.50
20
5756005A00
ref: 20
SWITCH,CLUTCH
€ 11.00
21
0211203205
ref: 21
02112-0320B
SCREW
€ 5.00
22
0713006207
ref: 22
BOLT
€ 3.50
23
5766148E00
ref: 23
COVER,CLUTCH LEVER
€ 9.00
