SEAT
VZ800 MARAUDER 1998 (W) USA (E03)

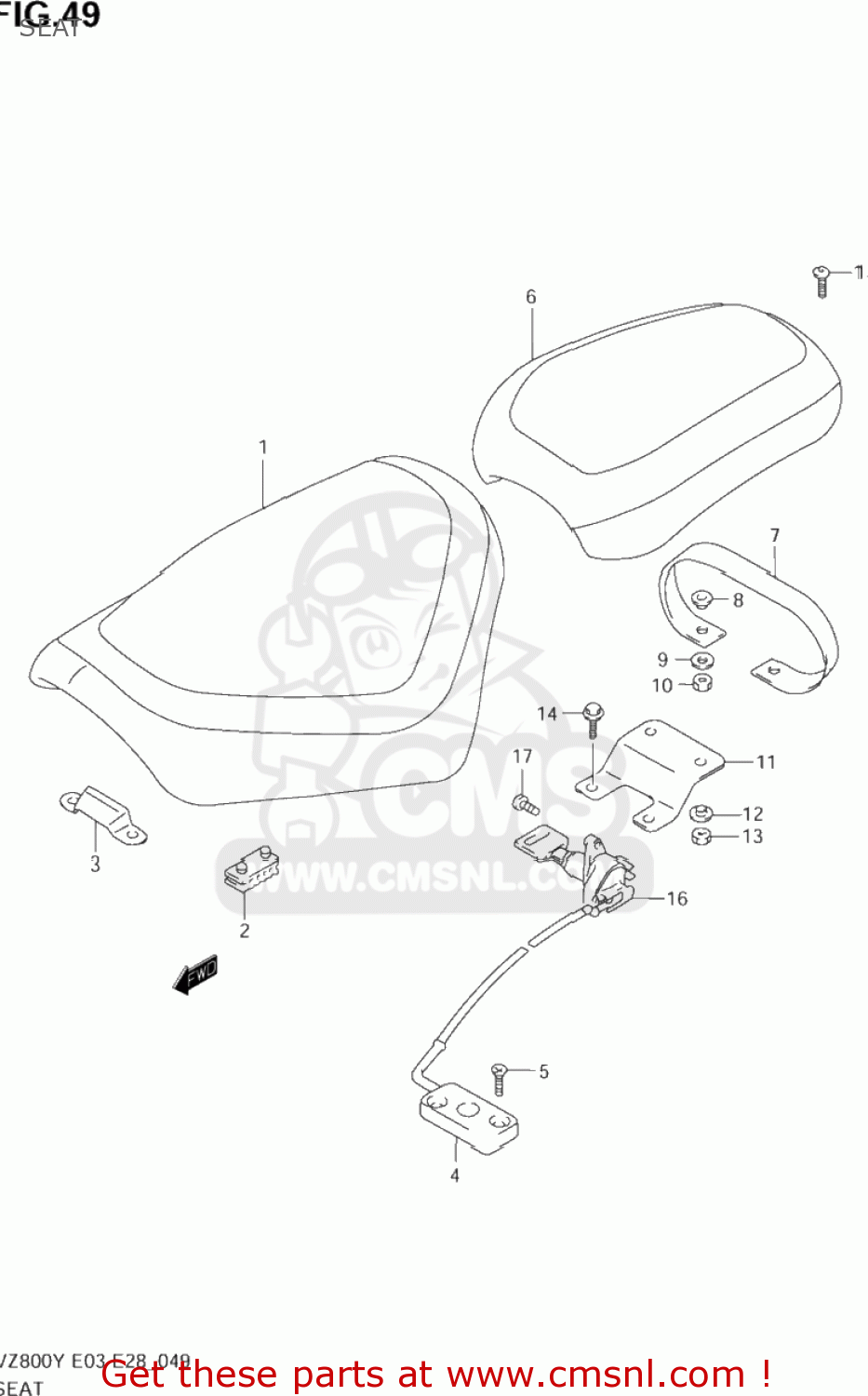

Seat diagram VZ800 MARAUDER 1998 (W) USA (E03)
SEAT VZ800 MARAUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510048E01H1N
ref: 1-1
SEAT ASSY
€ 193.00
1-2
4510048E50M9Z
ref: 1-2
SEAT ASSY
€ 0.00
1-3
4510048E7048H
ref: 1-3
SEAT ASSY(BLACK)
€ 0.00
2
4514931300
ref: 2
CUSHION,SEAT(40X20X15)
€ 2.00
3
4511948E00
ref: 3
PLATE,FR SEAT HOOK
€ 4.50
4
4522048E01
ref: 4
BRACKET,SEAT SUPPORT FR
€ 40.00
5
0212206253
ref: 5
02122-0625A
SCREW
€ 2.00
6-1
4530048E10H1N
ref: 6-1
SEAT ASSY,PILLION
€ 152.00
6-2
4530048E50M9Z
ref: 6-2
SEAT ASSY,PILLION
€ 0.00
6-3
4530048E7048H
ref: 6-3
SEAT ASSY,PILLION(BLACK)
€ 0.00
7-1
4518048E10P21
ref: 7-1
BAND ASSY,SEAT
€ 32.50
7-2
4518048E50P21
ref: 7-2
BAND ASSY,SEAT(BLACK)
€ 0.00
8
0916906071
ref: 8
WASHER
€ 2.50
9
0916006084
ref: 9
WASHER(6.5X18X1.6)
€ 2.00
10
0831620063
ref: 10
08316-2006A
NUT
€ 2.00
11
4511648E00
ref: 11
PLATE,PILLION SEAT
€ 9.50
12
0916906071
ref: 12
WASHER
€ 2.50
13
0831620063
ref: 13
08316-2006A
NUT
€ 2.00
14
0155006123
ref: 14
01550-0612A
BOLT
€ 2.50
15
0910608140
ref: 15
BOLT(8X16)
€ 6.00
16
9570012852
ref: 16
95700-12853
LOCK SET,SEAT
€ 110.50
17
0913906092
ref: 17
SCREW(6X14)
€ 3.50
