RADIATOR
VZ800 MARAUDER 1998 (W) USA (E03)

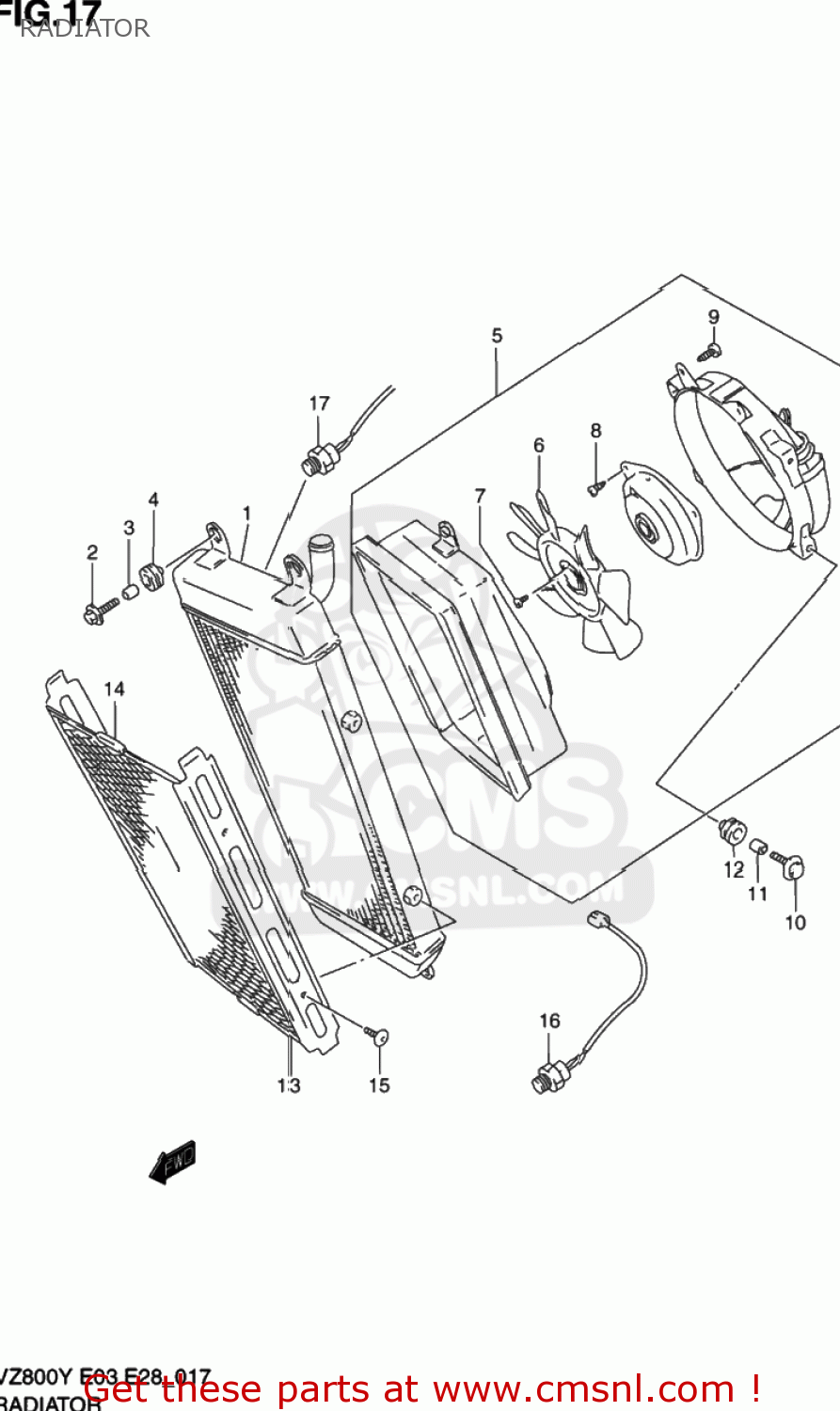

Radiator diagram VZ800 MARAUDER 1998 (W) USA (E03)
RADIATOR VZ800 MARAUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771048E00
ref: 1
RADIATOR ASSY,WATER
€ 947.50
2-1
0911606143
ref: 2-1
09116-06115
BOLT 6X20
€ 2.00
2-2
0911606115
ref: 2-2
BOLT(6X20)
€ 2.00
2-3
0911606167
ref: 2-3
BOLT(6X20)
€ 2.00
3
0918006310
ref: 3
SPACER(6.5X10X10)
€ 2.00
4
0932010501
ref: 4
CUSHION
€ 5.50
5
1780048E10
ref: 5
FAN ASSY,RADIATOR
€ 505.00
6
1782045C00
ref: 6
FAN
€ 51.50
7
0211204063
ref: 7
02112-0406B
SCREW 4X6
€ 2.00
8
0211215083
ref: 8
02142-0508A
SCREW
€ 2.00
9
0211215123
ref: 9
02142-0512A
SCREW 5X12
€ 1.50
10-1
0911606143
ref: 10-1
09116-06115
BOLT 6X20
€ 2.00
10-2
0911606115
ref: 10-2
BOLT(6X20)
€ 2.00
10-3
0911606167
ref: 10-3
BOLT(6X20)
€ 2.00
11
0918006310
ref: 11
SPACER(6.5X10X10)
€ 2.00
12
0932010015
ref: 12
CUSHION
€ 2.50
13
1776048E10
ref: 13
COVER,RADIATOR
€ 63.50
14
1665427E00
ref: 14
PROTECTOR,CTR
€ 3.00
15
0913906051
ref: 15
SCREW(6X10)
€ 2.50
16
1768048E00
ref: 16
SWITCH,RADIATOR FAN
€ 95.00
17
3485010D00
ref: 17
SWITCH ASSY,WATER TEMP
€ 103.00
