HEADLAMP

VZ800 MARAUDER 1998 (W) USA (E03)

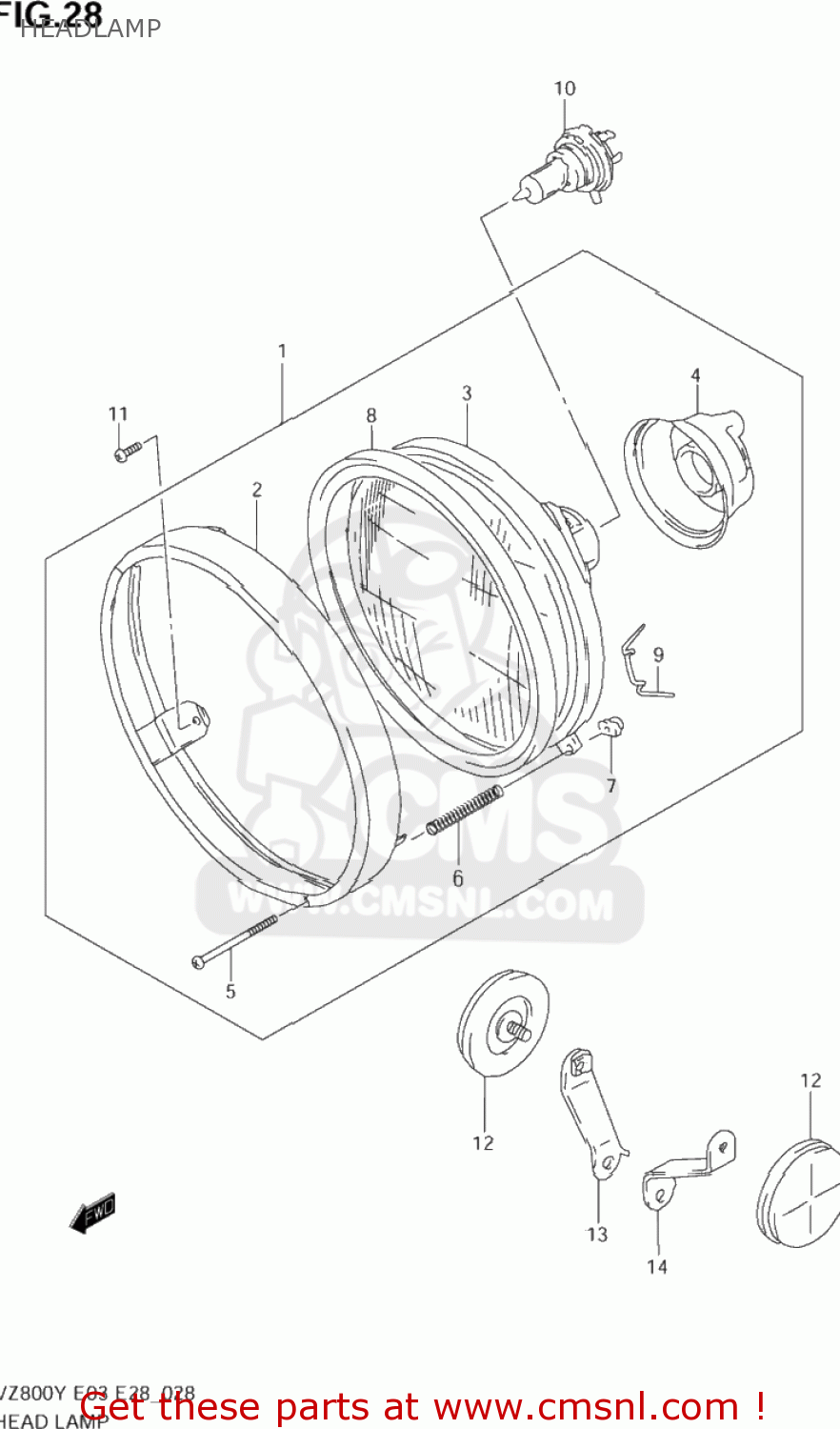

Headlamp diagram VZ800 MARAUDER 1998 (W) USA (E03)

HEADLAMP VZ800 MARAUDER 1998 (W) USA (E03)

HEADLAMP VZ800 MARAUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510048E00999
ref: 1

HEADLAMP ASSY

€ 215.50

2

3511148E00
ref: 2

RIM ASSY

€ 108.00

3

3512148E00
ref: 3

LAMP UNIT

€ 106.50

4

3517320A01
ref: 4

COVER,SOCKET

€ 14.50

5

3515145900
ref: 5

SCREW

€ 4.00

6

3515431900
ref: 6

SPRING,ADJUSTING

€ 3.50

7

3515215611
ref: 7

NUT

€ 3.50

8

3512710D20
ref: 8

RING

€ 22.00

9

3512805510
ref: 9

SPRING

€ 3.50

10

0947112060
ref: 10

BULB(12V60/55W,H4)

€ 8.00

11-1

0912705013
ref: 11-1

SCREW(5X12)

€ 2.50

11-2

0912605003
ref: 11-2

SCREW(5X12)

€ 2.50

12

3595014A00
ref: 12

REFLECTOR,REFLEX FR

€ 15.00

13

3595648E00
ref: 13

BRACKET,FR SIDE RR,R

€ 5.50

14

3595748E00
ref: 14

BRACKET,FR SIDE RR,L

€ 0.00
