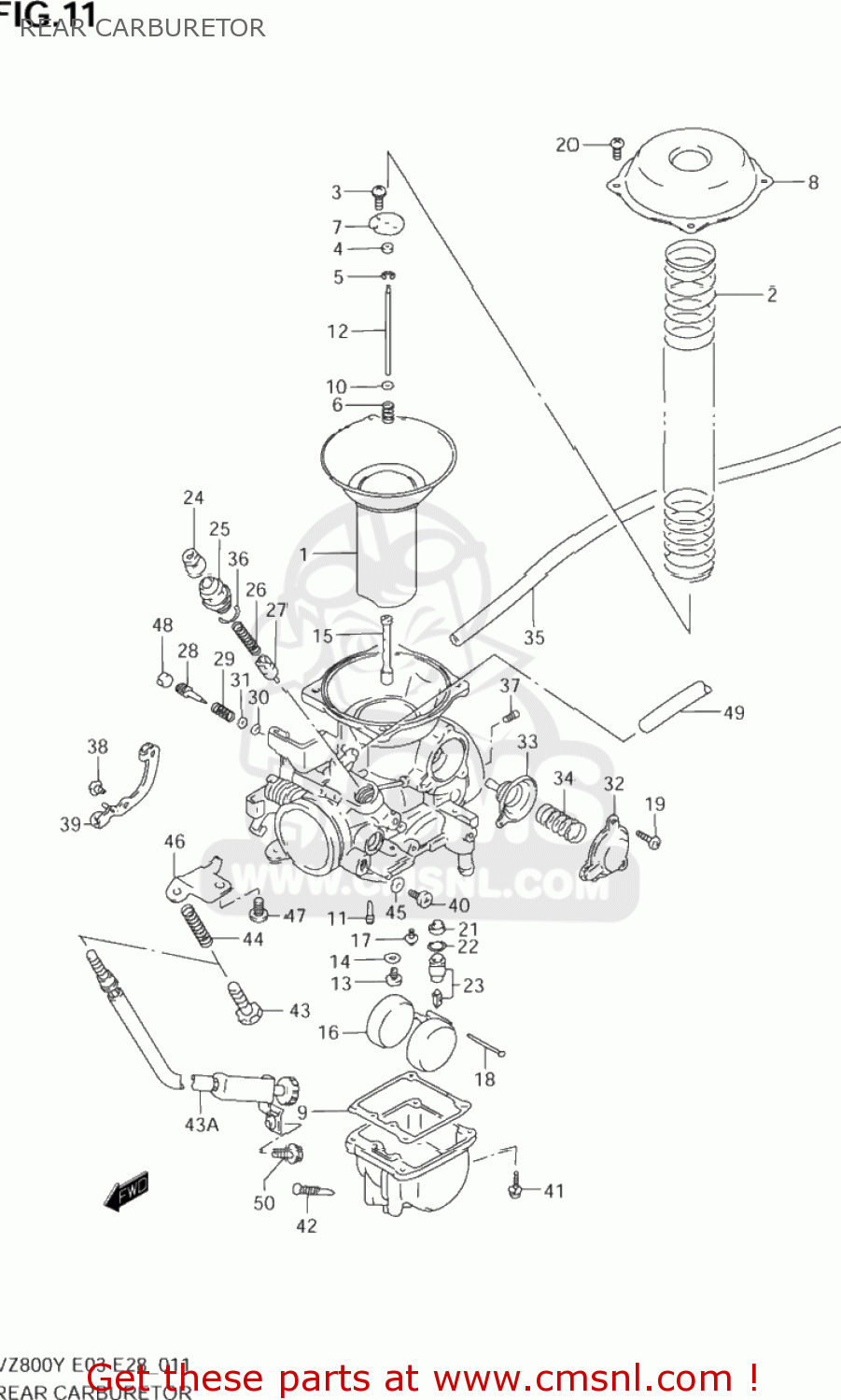

REAR CARBURETOR

ref

part #

description

quantity

1322048E70
ref:

CARBURETOR ASSEMBLY,REAR

€ 0.00

1322048EB0
ref:

CARBURETOR ASSEMBLY,REAR

€ 0.00

1322048EF0
ref:

CARBURETOR ASSY,RR

€ 0.00

1322048EG0
ref:

CARBURETOR ASSY,RR

€ 0.00

1

1350038A10
ref: 1

DIAPHRAGM,CARBURETOR

€ 222.50

2

1350338B00
ref: 2

SPRING,DIAPHRAGM

€ 12.00

3

0211233073
ref: 3

SCREW

€ 0.00

4

1338747010
ref: 4

RING

€ 7.50

5

1339410010
ref: 5

CLIP

€ 4.50

6

1338844030
ref: 6

SPRING

€ 6.00

7

1338937400
ref: 7

PLATE

€ 5.50

8-1

1350238A10
ref: 8-1
13502-45CE0

COVER,DIAPHRAGM

€ 37.50

8-2

1350245CE0
ref: 8-2

COVER

€ 37.50

9

1325138A10
ref: 9

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

10

1338244030
ref: 10

WASHER

€ 3.50

11

0949242010
ref: 11

JET,PILOT(42.5)

€ 8.50

12

1338348E70
ref: 12

NEEDLE,JET(5D83-1)

€ 0.00

13

0949120017
ref: 13

JET,MAIN

€ 10.50

14-1

1333244080
ref: 14-1
13382-03110

WASHER,NEEDLE NOZZLE

€ 2.50

14-2

1338203110
ref: 14-2

WASHER

€ 2.50

15

0949400902
ref: 15

JET,NEEDLE(P-3M)

€ 0.00

16

1325223010
ref: 16

FLOAT

€ 19.00

17

1360205A10
ref: 17

SCREW

€ 4.00

18

1325492311
ref: 18

PIN,FLOAT

€ 2.00

19

1360219B50
ref: 19

SCREW

€ 3.00

20

1360248B00
ref: 20

SCREW

€ 3.50

21-1

1337684110
ref: 21-1
13376-19F00

FILTER

€ 6.50

21-2

1337619F00
ref: 21-2

FILTER

€ 6.50

22-1

1337444080
ref: 22-1
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

22-2

1337435C00
ref: 22-2

O RING,NEEDLE VALVE SEAT

€ 6.00

23

1337039A00
ref: 23

VALVE ASSY,NEEDLE

€ 67.50

24

1368104010
ref: 24

CAP

€ 3.00

25

1341843410
ref: 25

HOLDER,GUIDE

€ 6.50

26

1341722010
ref: 26

SPRING

€ 3.00

27

1341101400
ref: 27

PLUNGER,STARTER

€ 11.50

28

1327947070
ref: 28

SCREW,PILOT

€ 11.50

29

1326847070
ref: 29

SPRING

€ 5.00

30

1329529900
ref: 30

O RING,PILOT AIR SCREW

€ 4.00

31

1329129900
ref: 31

WASHER

€ 2.00

32

1348445C00
ref: 32

COVER

€ 15.50

33

1348005A10
ref: 33

DIAPHRAGM ASSY

€ 54.50

34

1348145C10
ref: 34

SPRING

€ 5.50

35-1

0935250823600
ref: 35-1
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

35-2

1368448EF0
ref: 35-2
13683-19B80

HOSE (5X8X315)

€ 9.50

35-3

1368319B80
ref: 35-3

HOSE

€ 9.50

36

1327847090
ref: 36

O RING

€ 2.00

37

0949270004
ref: 37

JET,PILOT(70)

€ 9.50

38

1360205A30
ref: 38

SCREW

€ 4.50

39

1355438A10
ref: 39

LEVER,ASSY

€ 25.00

40

0912505122
ref: 40

SCREW(5X6)

€ 4.00

41-1

1360145C00
ref: 41-1
13601-04148

SCREW

€ 2.50

41-2

1360104148
ref: 41-2

SCREW

€ 2.50

42-1

1324713A00
ref: 42-1
13247-02340

SCREW,DRAIN

€ 5.50

42-2

1324702340
ref: 42-2

PLUG,DRAIN

€ 5.50

43

1326739E50
ref: 43

ADJUSTER

€ 13.00

43A

1326748E00
ref: 43A

ADJUSTER ASSY

€ 75.00

44

1327193011
ref: 44

SPRING

€ 4.50

45

1352346110
ref: 45

GASKET,DRAIN PLUG (NAS)

€ 3.00

46

1362138A10
ref: 46

BRACKET

€ 9.00

47-1

1360245C00
ref: 47-1
13602-06128

SCREW

€ 2.50

47-2

1360206128
ref: 47-2

SCREW

€ 2.50

48

1328105A00
ref: 48

PLUG

€ 3.50

49

1368338B00
ref: 49
13683-38B01

(CA) HOSE SET,FUEL

€ 19.50

50

0155006103
ref: 50
01550-0610A

BOLT

€ 2.50

all assemblies
