FUEL TANK (MODEL X)
VZ800 MARAUDER 1998 (W) USA (E03)

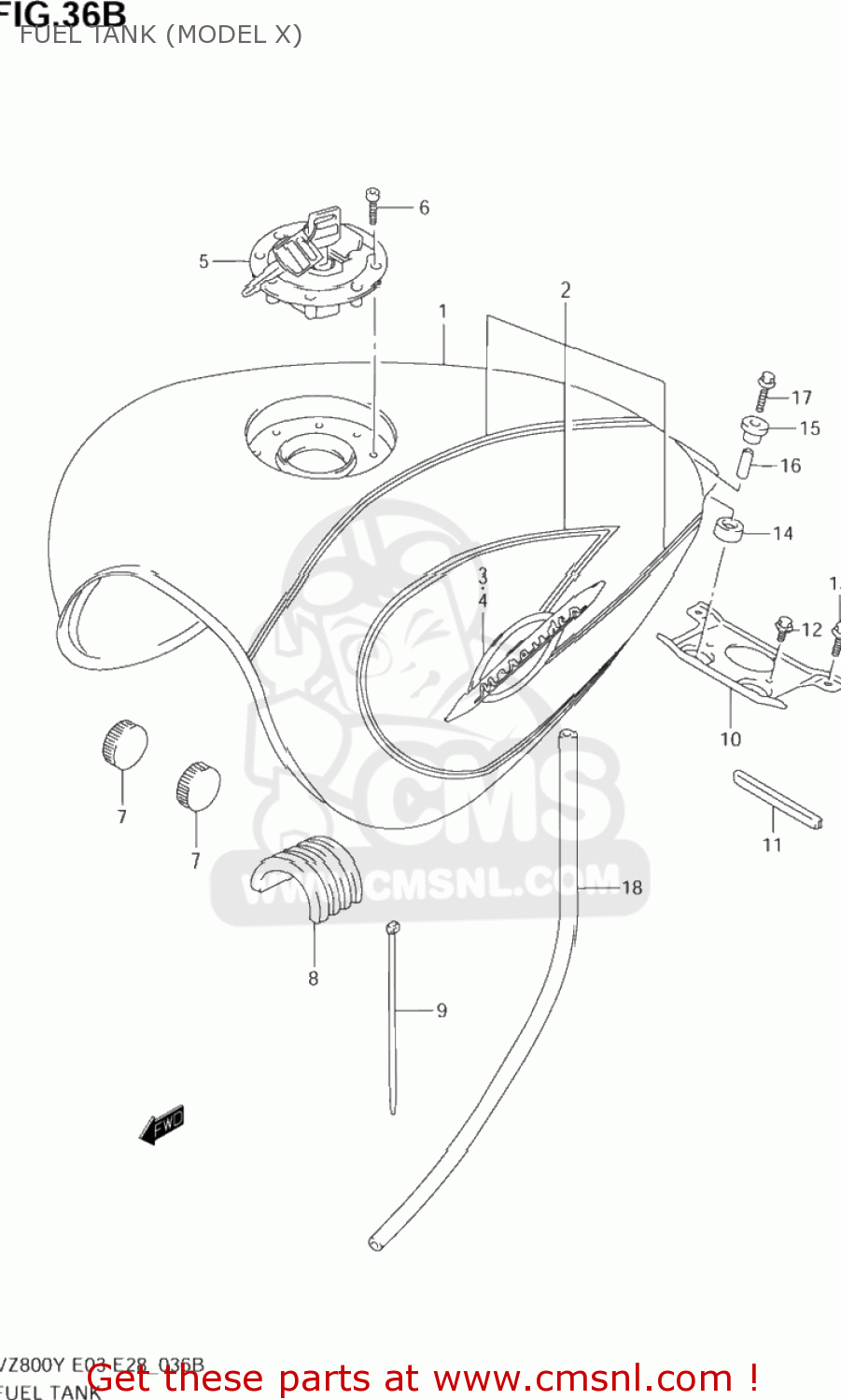

Fuel tank (model x) diagram VZ800 MARAUDER 1998 (W) USA (E03)
FUEL TANK (MODEL X) VZ800 MARAUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410048E80E9N
ref: 1-1
TANK ASSEMBLY,FUEL
€ 739.50
1-2
4410048E80G7U
ref: 1-2
TANK ASSY,FUEL
€ 571.50
1-3
4410048E90E9N
ref: 1-3
TANK ASSEMBLY,FUEL
€ 0.00
1-4
4410048E90G7U
ref: 1-4
TANK ASSEMBLY,FUEL
€ 0.00
2-1
6811048E20H0G
ref: 2-1
68110-48E21-H0G
TAPE SET,FUEL TANK
€ 168.00
2-2
6811048E20M1Z
ref: 2-2
68110-48E21-M1Z
TAPE SET,FUEL TANK
€ 140.00
3
6811148E20
ref: 3
EMBLEM,FUEL TANK,R
€ 55.00
4
6812148E20
ref: 4
EMBLEM,FUEL TANK,L
€ 55.00
5-1
4420033850
ref: 5-1
CAP SET,FUEL TANK
€ 282.50
5-2
4420033860
ref: 5-2
CAP SET,FUEL TANK
€ 0.00
6
0910605017
ref: 6
BOLT(5X20)
€ 3.00
7
0932910007
ref: 7
CUSHION
€ 3.00
8
4454113E00
ref: 8
CUSHION,FUEL TANK UPR
€ 11.00
9
0940725402
ref: 9
CLAMP(L:250)
€ 4.50
10
4455048E01
ref: 10
BRACKET,FUEL TANK RR
€ 12.50
11
4751247D00
ref: 11
PROTECTOR
€ 4.50
12
0155006123
ref: 12
01550-0612A
BOLT
€ 2.50
13
0155006163
ref: 13
01550-0616A
BOLT
€ 2.50
14
4454248E00
ref: 14
CUSHION,FUEL TANK RR NO.2
€ 7.00
15
0932010022
ref: 15
CUSHION
€ 2.50
16
0918006067
ref: 16
SPACER(6.5X10.5X22.5)
€ 2.50
17
0155006353
ref: 17
01550-0635A
BOLT
€ 2.50
18
4442348E00
ref: 18
44423-48E01
HOSE,DRAIN
€ 21.00
