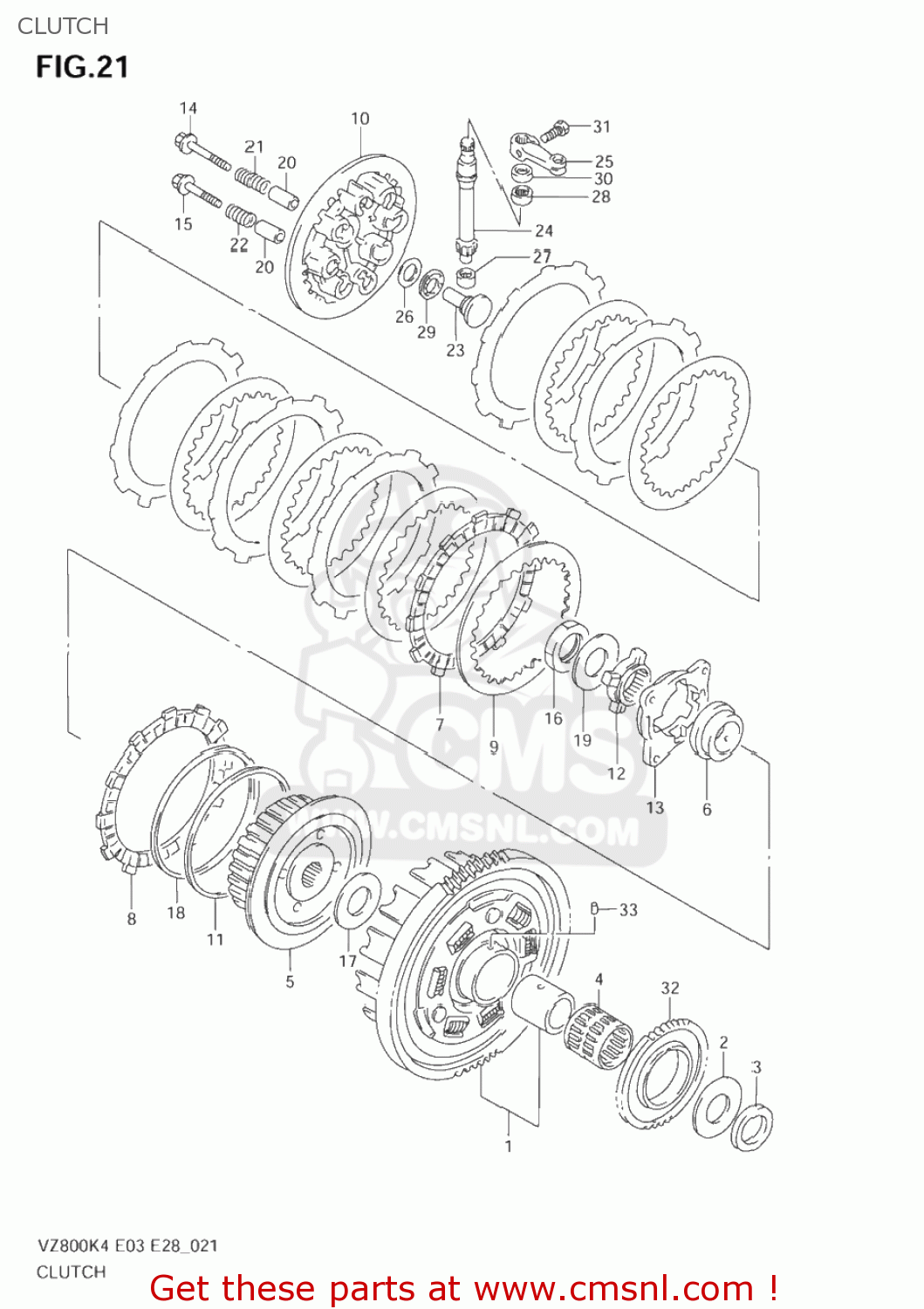

CLUTCH

ref

part #

description

quantity

1

2120048840
ref: 1

GEAR ASSY,PRI DRIVEN

€ 469.00

2

0916025037
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0918025077
ref: 3

SPACER(25X38X6.5)

€ 7.50

4

0926335017
ref: 4

BEARING(35X40X35.8)

€ 36.50

5

2141045C03
ref: 5

HUB,CLUTCH SLEEVE

€ 221.00

6

2141345C00
ref: 6

SPACER,CLUTCH SLEEVE HUB

€ 45.50

7

2144137430
ref: 7

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

8

2144237401
ref: 8

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

9

2145114A00
ref: 9

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 6.50

10

2146245C00
ref: 10

DISC,CLUTCH PRESSURE

€ 44.50

11

2147137400
ref: 11

SEAT,WAVE WASHER(T:1.4)

€ 8.00

12

2161145C02
ref: 12

CAM,CLUTCH NO.1

€ 57.50

13

2161345C02
ref: 13

CAM,CLUTCH NO.2

€ 184.00

14

0911606135
ref: 14

BOLT(6X40)

€ 3.00

15

0911606148
ref: 15

BOLT(6X32.5)

€ 2.50

16

0914022011
ref: 16

NUT

€ 9.00

17

0916025065
ref: 17

WASHER(25X60X2.5)

€ 15.50

18

0916400004
ref: 18

WASHER

€ 9.00

19

0916422008
ref: 19

WASHER

€ 8.00

20

0918006276
ref: 20

SPACER(6.5X9X24.1)

€ 6.50

21

0944014038
ref: 21

SPRING

€ 6.00

22

0944014039
ref: 22

SPRING

€ 6.00

23

2316521A12
ref: 23

RACK,CLUTCH RELEASE

€ 26.00

24

2326132E10
ref: 24

PINION,CLUTCH RELEASE

€ 49.50

25

2327131D00
ref: 25

ARM,CLUTCH RELEASE

€ 27.50

26

0916015045
ref: 26

WASHER(15.5X28X1)

€ 4.00

27

0926309001
ref: 27

BEARING(9X13X10)

€ 11.00

28

0926312024
ref: 28

BEARING(12X16X10)

€ 11.00

29

0926315003
ref: 29

BEARING(15X28X2)

€ 7.00

30

0928510004
ref: 30

SEAL,OIL(10X17X5)

€ 3.50

31

0154706167
ref: 31

BOLT

€ 2.00

32

1632148E00
ref: 32

GEAR,OIL PUMP DRIVE(NT:47)

€ 70.50

33

0926106002
ref: 33

PIN(6X6)

€ 1.50
