REAR BOX

VZ800 MARAUDER 2004 (K4) USA (E03)

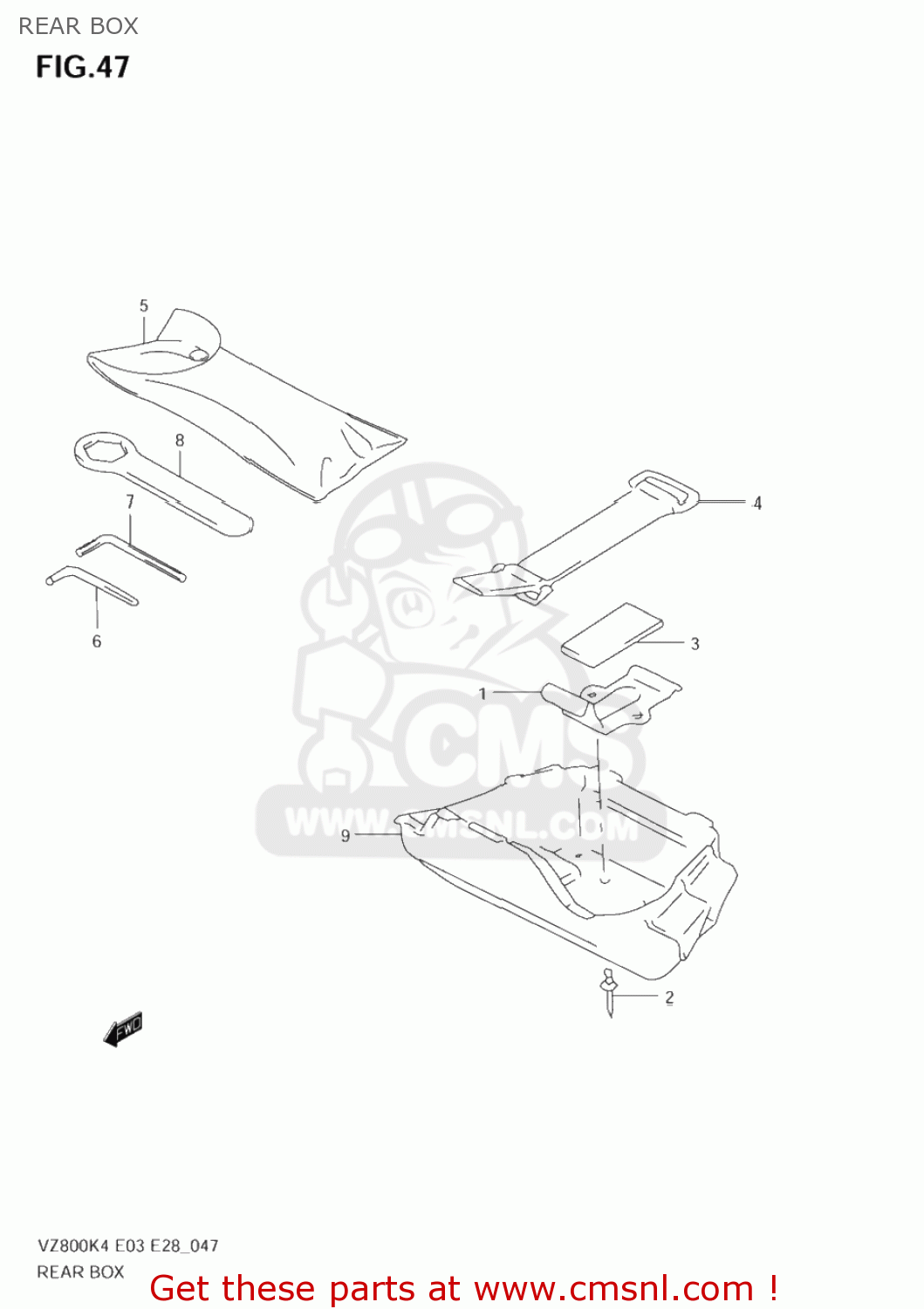

Rear box diagram VZ800 MARAUDER 2004 (K4) USA (E03)

REAR BOX VZ800 MARAUDER 2004 (K4) USA (E03)

REAR BOX VZ800 MARAUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6346648E00
ref: 1

HOLDER,TOOL

€ 6.50

2

0922904020
ref: 2

RIVET

€ 2.50

3

3365137000
ref: 3

PROTECTOR(170X95X3.0)

€ 5.00

4

4743502F01
ref: 4

BAND,TOOL

€ 7.00

5

0980021012
ref: 5

TOOL ASSY

€ 40.00

6

0981600103
ref: 6

SPANNER,HEXAGON(4)

€ 3.00

7

0981600050
ref: 7

SPANNER,HEXAGON(6)

€ 5.50

8

0981700035
ref: 8

RING SPANNER(22)

€ 6.50

9

9221148E01
ref: 9

BODY,LUGGAGE BOX

€ 28.00
