STAND

VZ800 MARAUDER 2004 (K4) USA (E03)

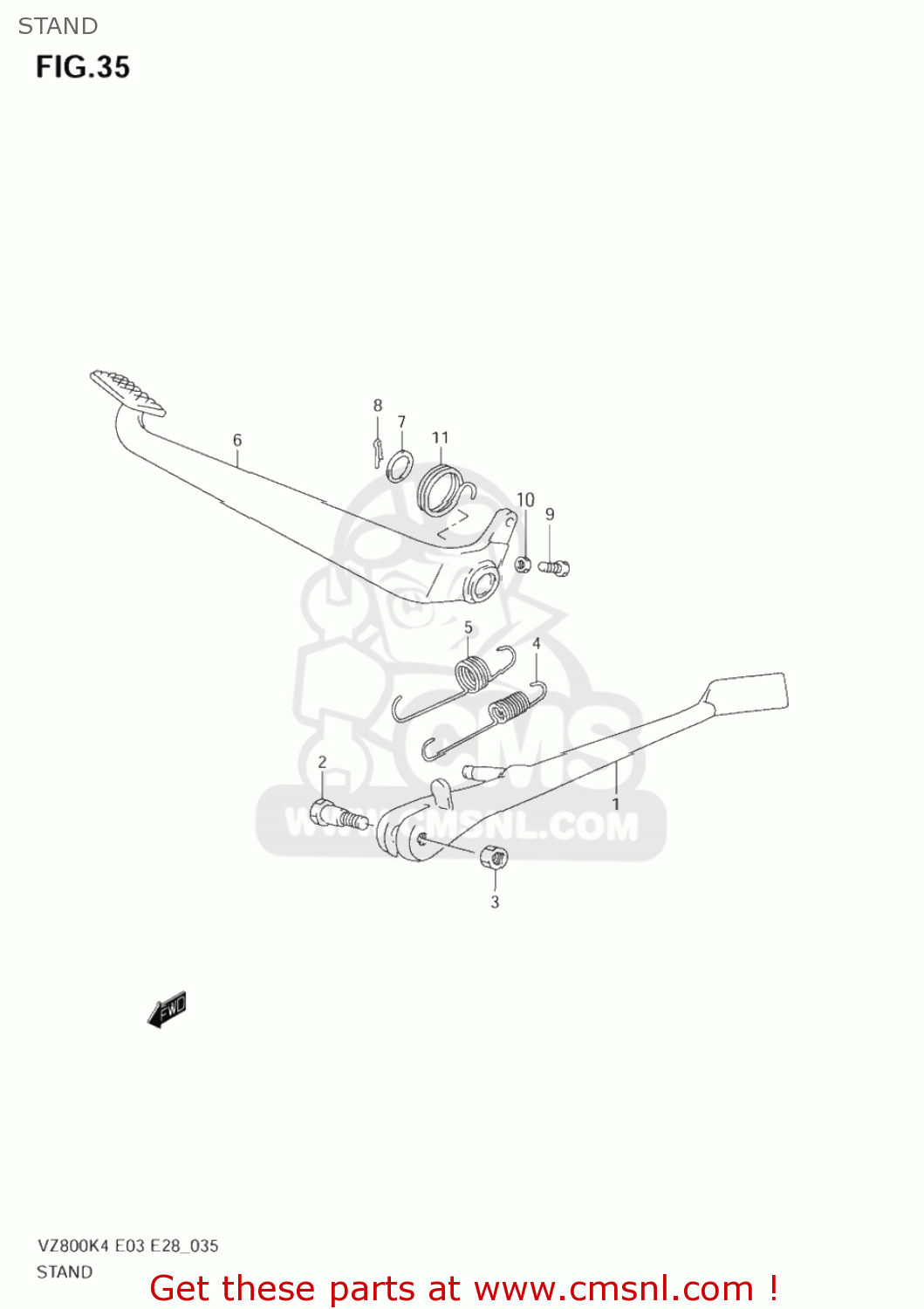

Stand diagram VZ800 MARAUDER 2004 (K4) USA (E03)

STAND VZ800 MARAUDER 2004 (K4) USA (E03)

STAND VZ800 MARAUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231048E20
ref: 1

STAND,PROP

€ 0.00

2

0911110027
ref: 2

BOLT(10X34)

€ 3.50

3

0831921103
ref: 3
08319-2110A

NUT

€ 2.00

4

0944314066
ref: 4

SPRING

€ 5.00

5

0944319012
ref: 5

SPRING

€ 5.50

6

4311048E10
ref: 6

PEDAL,BRAKE

€ 98.50

7

0916016043
ref: 7

WASHER(16.5X22X1)

€ 2.00

8

0411130308
ref: 8
04111-3030A

COTTER PIN

€ 1.50

9

0150006207
ref: 9

BOLT

€ 2.00

10

0831000067
ref: 10

NUT

€ 2.50

11

0944831034
ref: 11

SPRING

€ 5.50
